AWEA AF-1600MAX

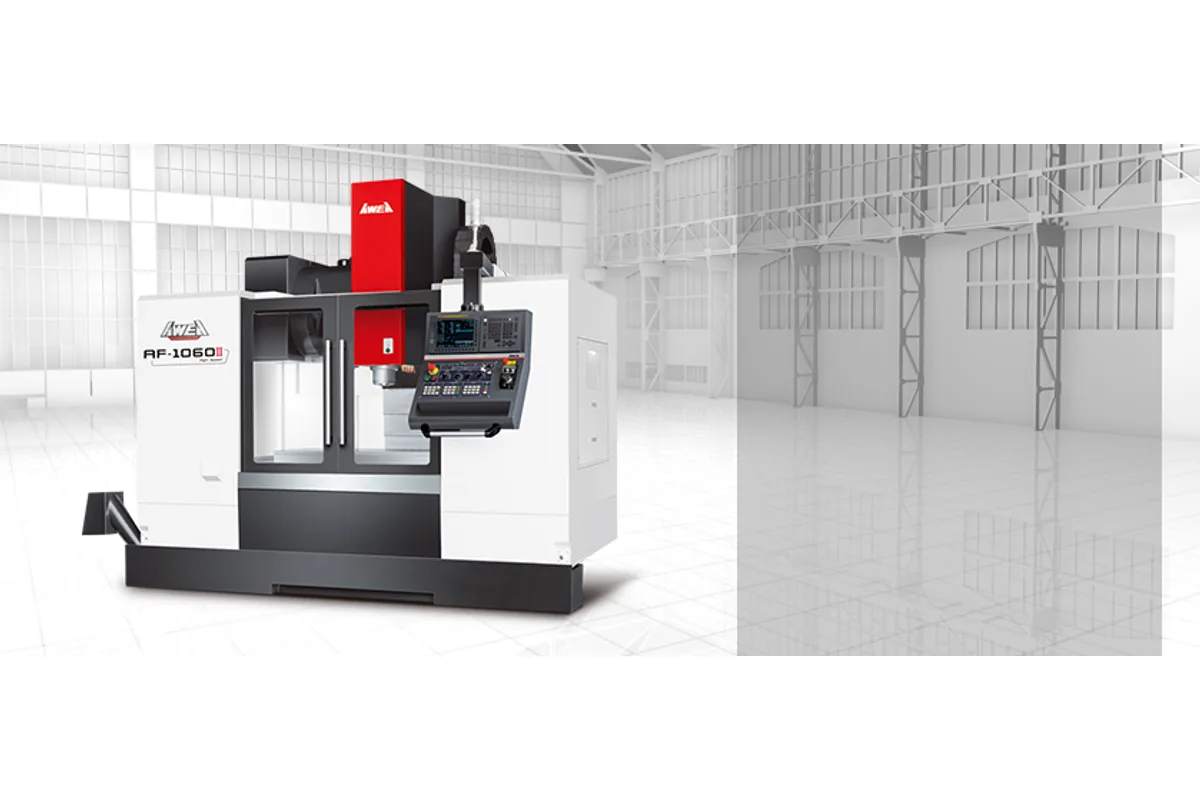

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the AWEA AF-1600MAX cost?
Price estimate
We do not have a price for the AWEA AF-1600MAX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sitting in the middle of the three MAX machines, the AWEA AF-1600MAX pairs 1,600 mm (63.0 in) of X travel with 800 mm (31.5 in) of Y and 800 mm (31.5 in) of Z. Its 1,700 x 800 mm (66.9 x 31.5 in) table is rated for 1,500 kg (3,307 lb), and the machine weighs 16,000 kg (35,273 lb).
AWEA sells two machines with this X stroke, and they are not close relatives. The AF-1600II is an 8,600 kg (18,959 lb) machine with 740 mm (29.1 in) of Y, 610 mm (24.0 in) of Z and a 30-tool magazine. The AF-1600MAX almost doubles the mass, opens Z by a wide margin and lists a BT50 option that the AF-1600II's table row does not show. If the work is plate, the II is enough. If it is a block, this is the one.
Within the MAX group the differences come down to length. The AF-1400MAX is the shorter neighbour with a 1,200 kg (2,646 lb) table, the AF-1800MAX the longer one with 1,800 kg (3,968 lb); Y, Z, spindle, feed rates and tooling stay the same across all three. Rapids are 30 m/min (1,181 ipm) in X and Y and 24 m/min (945 ipm) in Z, with cutting feed to 12 m/min (472 ipm).
The base spindle is direct-drive at 12,000 rpm with 11 / 15 kW (14.8 / 20.1 hp). The 24-tool magazine rides on the column and accepts tools up to 250 mm (9.8 in) long. AWEA states 40 kVA for power and fits a 630 liter coolant tank. The control is the FANUC Oi - MF PLUS.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Table Size | 1,700 x 800 mm (66.9 x 31.5 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Distance Spindle Center to Column | 903 mm (35.6 in) |
| Distance Spindle Nose to Table | 160 ~ 960 mm (6.3 ~ 37.8 in) |
| T-Slots | 18 mm x 150 mm x 5 |
| Spindle Taper | BT40 (BT50 Opt.) |
| Spindle Motor Power | 11 / 15 kW (14.8 / 20.1 hp) |
| Max Spindle Speed | Direct-drive 12,000 rpm |
| Rapid Traverse Xy | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 24 m/min (945 ipm) |
| Cutting Feed Rate | 12 m/min (472 ipm) |
| Tool Capacity | 24 T |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in) |
| Positioning Accuracy | 0.008 mm |
| Repeatability | 0.006 mm |
| CNC Control | FANUC Oi - MF PLUS |
| Air Pressure Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 630 liter |
| Machine Weight | 16,000 kg (35,273 lb) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,600 x 800 x 800 mm work envelope with a 1,500 kg (3,307 lb) table rating
- 16,000 kg (35,273 lb) structure with the saddle on four linear guideways
- BT50 spindle option, which the AF-1600II's table row does not list
- Up to 960 mm between spindle nose and table for tall setups
- 630 liter coolant tank, with chip augers fitted as standard
Limitations
- 24-tool magazine, six fewer pockets than the AF-1600II
- X and Y rapids of 30 m/min (1,181 ipm) and a 12 m/min (472 ipm) cutting feed limit
- Standard spindle motor is 11 / 15 kW (14.8 / 20.1 hp), small against the machine's mass unless a gear spindle is ordered
- Needs 40 kVA and lifting capacity for 16,000 kg (35,273 lb)
Best For
Frequently Asked Questions
01
Both travel 1,600 mm (63.0 in) in X. The AF-1600MAX has 800 mm (31.5 in) of Y and Z, weighs 16,000 kg (35,273 lb), carries 1,500 kg (3,307 lb) and lists a BT50 option. The AF-1600II has 740 mm (29.1 in) of Y, 610 mm (24.0 in) of Z, weighs 8,600 kg (18,959 lb), carries 1,450 kg (3,197 lb) and has a 30-tool magazine.
02
The table load capacity is 1,500 kg (3,307 lb) on a 1,700 x 800 mm (66.9 x 31.5 in) table with five 18 mm T-slots at a 150 mm pitch. The AF-1400MAX is rated for 1,200 kg (2,646 lb) and the AF-1800MAX for 1,800 kg (3,968 lb).
03
Z travel is 800 mm (31.5 in) and the spindle nose to table distance is 160 ~ 960 mm (6.3 ~ 37.8 in). A footnote on AWEA's specification page gives a different range for BT50, so ask for the exact figures when ordering the 50-taper spindle. Maximum tool length is 250 mm (9.8 in).
04
AWEA lists the FANUC Oi - MF PLUS. The three axes are driven by FANUC αi absolute AC servo motors coupled directly to dual-nut ball screws, according to the maker's description of the series. Positioning accuracy is 0.008 mm and repeatability 0.006 mm (ISO230-2).
