AWEA HTP-4041

Q: How much does the AWEA HTP-4041 cost?

The price estimate for the AWEA HTP-4041 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-4041#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

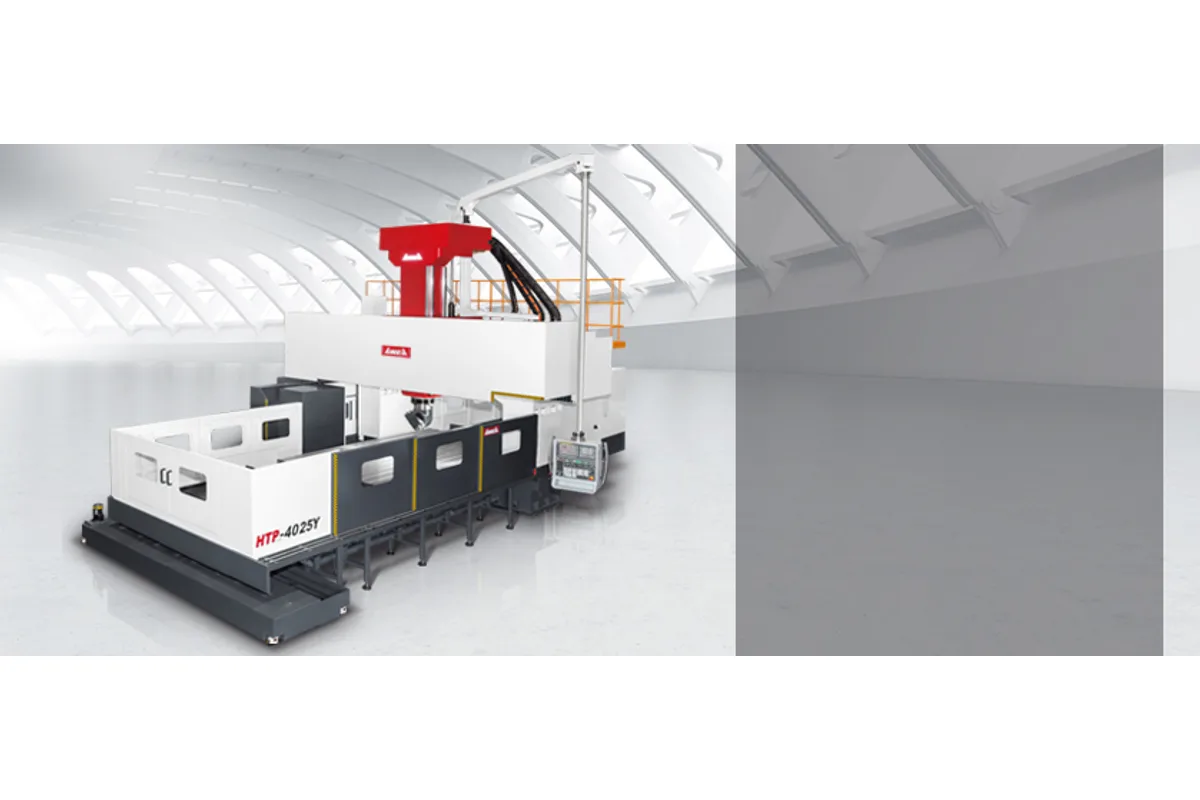

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

4,020 x 3,000 mm (158.3 x 118.1 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

4,000 mm (157.5 in)

How much does the AWEA HTP-4041 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-4041 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA HTP-4041 is the widest HTP frame at its shortest length: 4,300 mm (169.3 in) between the columns over 4,000 mm (157.5 in) of X travel. The opening is wider than the X stroke is long, an unusual proportion that suits large round or square work.

Read the Y row carefully. For the 41 group AWEA prints the Y travel as "Opt.4,100 mm (4,800)", with no standard value in front of it, unlike the 3,300 mm (129.9 in) stated for the HTP-4033. The table itself is 4,020 x 3,000 mm (158.3 x 118.1 in), the same as on the HTP-4033, so the gain over that machine is clearance between the columns and cross travel, not table area. Table load is 15,000 kg (33,069 lb).

The longer cross beam slows the head. Y and Z rapids are 10 m/min (394 ipm) here against 12 m/min (472 ipm) on the HTP-4033. X is unaffected: 15 m/min (591 ipm) rapid, 1 ~ 10 m/min (39 ~ 394 ipm) cutting feed, and VDI positioning of P ≤ 0.030 mm over full travel.

Z travel is 1,000 mm (39.4 in) and the spindle is a 4,000 rpm gear unit with BBT50 (ISO 50) taper. The machine weighs 45,000 kg (99,206 lb) and has the largest coolant tank of the series, 1,300 liter.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	Opt.4,100 mm (4,800)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	4,020 x 3,000 mm (158.3 x 118.1 in)
Max Table Load	15,000 kg (33,069 lb)
Distance Between Columns	4,300 mm (169.3 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	15 m/min (591 ipm)
Rapid Traverse Yz	10 m/min (394 ipm)
Cutting Feed Rate	1 ~ 10 m/min (39 ~ 394 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.030 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.025 mm
Coolant Tank Capacity	1,300 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	45,000 kg (99,206 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

4,300 mm (169.3 in) between the columns, the widest opening in the HTP series
X rapid of 15 m/min (591 ipm) and cutting feed of 1 ~ 10 m/min (39 ~ 394 ipm), as on the narrower 4,000 mm models
VDI: P ≤ 0.030 mm over full travel, Ps ≤ 0.025 mm
1,300 liter coolant tank, against 1,050 liter on the HTP-4033
45,000 kg (99,206 lb), the lightest machine with this column spacing

Limitations

Y travel is printed only as "Opt.4,100 mm (4,800)", so the cross travel has to be fixed at order
Y and Z rapids fall to 10 m/min (394 ipm)
The table is 3,000 mm (118.1 in) wide, well short of the 4,300 mm (169.3 in) column spacing
15,000 kg (33,069 lb) table load, the lowest rating in the series

Best For

Large rings, housings and turbine-size casings that need a wide column opening Square-format work on a 4,020 x 3,000 mm table Wide fabrications within 15,000 kg (33,069 lb) Heavy cutting with a 4,000 rpm BBT50 gear spindle

Frequently Asked Questions

01 What is the Y travel of the HTP-4041?

AWEA's specification table prints it as "Opt.4,100 mm (4,800)" for all four machines of the 41 group and gives no separate standard figure. The distance between columns is stated plainly as 4,300 mm (169.3 in). Have the maker confirm the Y stroke in writing for the configuration quoted.

02 Is the table of the HTP-4041 bigger than that of the HTP-4033?

No. Both are 4,020 x 3,000 mm (158.3 x 118.1 in) and both are rated for 15,000 kg (33,069 lb). The HTP-4041 has 4,300 mm (169.3 in) between the columns where the HTP-4033 has 3,500 mm (137.8 in), and it weighs 45,000 kg (99,206 lb) against 43,000 kg (94,797 lb).

03 Is the HTP-4041 slower than the narrower HTP machines?

On two axes. Y and Z rapid traverse is 10 m/min (394 ipm), where the HTP-4025 and HTP-4033 are listed at 12 m/min (472 ipm). X rapid stays at 15 m/min (591 ipm) and cutting feed at 1 ~ 10 m/min (39 ~ 394 ipm).

04 What services does the HTP-4041 need?

The table lists an air pressure requirement of 5 ~ 8 kg/cm², a 100 liter hydraulic tank, a 6 liter lubrication tank and a 1,300 liter coolant tank. No power figure in kVA is given in the saved specification, so ask AWEA for the electrical connection data.
