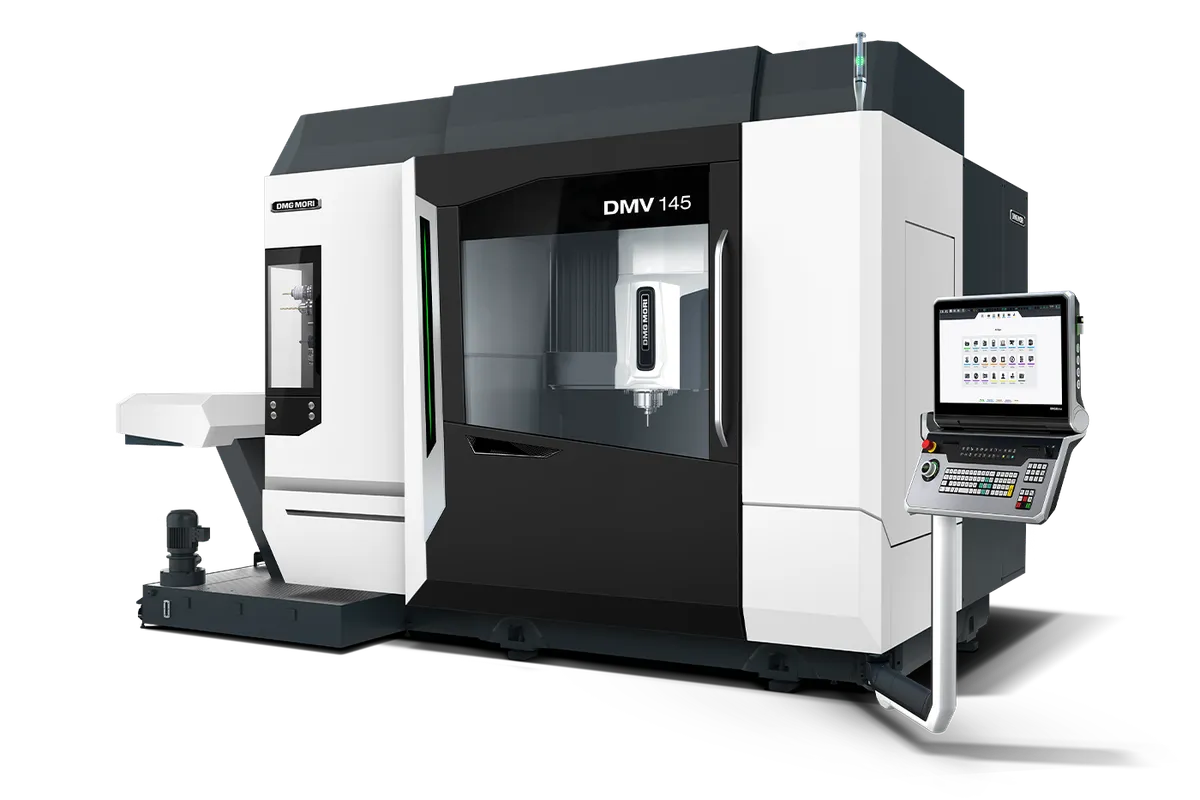

DMG Mori DMV 145
Image: dmgmori.com, DMG Mori
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Tool Capacity
max workpiece length
How much does the DMG Mori DMV 145 cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DMG Mori. Configuration moves it a long way.
Overview
The DMG MORI DMV 145 is a 3-axis vertical machining center with a fixed table and an elevated X-slide, offering 1,450 mm (57.1 in) of X travel, 700 mm (27.6 in) of Y and 550 mm (21.7 in) of Z for workpieces up to 2,000 kg (4,409.2 lb). Its Highlights spell out the tooling side in detail: four tool interfaces, magazines from 20 to 120 pockets and three spindles.
The basic version has a speedMASTER spindle with 20,000 rpm. Two options go the other way. A High-Torque spindle runs at 15,000 rpm, and a motorspindle in SK50 / HSK-A100 runs at 10,000 rpm with 303 Nm. That last option changes the character of the machine. With the larger interface and 303 Nm it becomes a roughing machine for steel and cast iron, where the basic 20,000 rpm spindle is a tool for finishing and light alloys.
The basic tool magazine is a disk type with 20 pockets and a double gripper. Optional magazines exist for SK40, SK50, HSK A63 and HSK 100 with 20, 30, 40, 60 or 120 pockets, the 40-pocket size being for SK50 / HSK A100 only. Tools are loaded from the front, in parallel with machining time, so the magazine can be replenished without stopping the spindle.
Loading is planned for heavy parts and for automation. The cabin roof has a large opening for a crane, and an automation door at the side measures 30.9 x 42.2 in. The largest workpiece is 1,760 × 700 × 550 mm (69.3 × 27.6 × 21.7 in).
Guideways and ball screw nuts are cooled, and direct path measuring systems are included in the basic machine. The DMV 200 keeps the same Y and Z and extends X to 2,000 mm (78.7 in).
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Length | 1,760 mm (69.3 in) |
| Max Workpiece Width | 700 mm (27.6 in) |
| Max Workpiece Height | 550 mm (21.7 in) |
| Max Workpiece Weight | 2,000 kg (4,409.2 lb) |
| X-Axis Travel | 1,450 mm (57.1 in) |
| Y-Axis Travel | 700 mm (27.6 in) |
| Z-Axis Travel | 550 mm (21.7 in) |
| Max Spindle Speed | 20,000 rpm speedMASTER spindle in basic version |
| Tool Capacity | 20 pockets, disk type magazine with double gripper (basic version) |
| Spindle Options | High-Torque spindle with 15,000 rpm (option); motorspindle SK50/HSK-A100 with 10,000 rpm and 303 Nm (option) |
| Tool Capacity Options | 20, 30, 40, 60 or 120 pockets optionally available (40 only SK50 / HSK A100) |
| Tool Interface | SK40, SK50, HSK A63 and HSK 100 |
| Automation Door | 30.9 x 42.2 in (at the side) |
Specifications sourced from dmgmori.com — verified 2026-10-02
Strengths & Limitations
Strengths
- speedMASTER spindle with 20,000 rpm in the basic version
- Optional SK50 / HSK-A100 motorspindle with 10,000 rpm and 303 Nm for heavy cutting
- Tool magazines up to 120 pockets, with tool loading from the front during machining
- Side automation door of 30.9 x 42.2 in and a roof opening for crane loading
- Direct path measuring systems included in the basic machine, with cooled guideways and ball screw nuts
- Fixed table for workpieces up to 2,000 kg (4,409.2 lb)
Limitations
- The basic magazine has 20 pockets; 30, 60 and 120 pockets are options
- The 303 Nm motorspindle is an option and is limited to 10,000 rpm
- The 40-pocket magazine is available for SK50 / HSK A100 only
- Z travel and maximum workpiece height are both 550 mm (21.7 in)
Best For
Frequently Asked Questions
01
The basic version has a speedMASTER spindle with 20,000 rpm. Options are a High-Torque spindle with 15,000 rpm and a motorspindle in SK50 / HSK-A100 with 10,000 rpm and 303 Nm. The choice of spindle also fixes the tool interface and the magazines that go with it.
02
The basic version has a disk type magazine with 20 pockets and a double gripper. Magazines for SK40, SK50, HSK A63 and HSK 100 are optionally available with 20, 30, 40, 60 or 120 pockets. The 40-pocket magazine is for SK50 / HSK A100 only. Loading is from the front and can be done in parallel with machining.
03
DMG MORI describes crane loading through a large opening in the cabin roof and automation through a large door at the side measuring 30.9 x 42.2 in. The table is fixed, and workpieces can weigh up to 2,000 kg (4,409.2 lb).
04
1,450 mm (57.1 in) in X, 700 mm (27.6 in) in Y and 550 mm (21.7 in) in Z. The maximum workpiece is 1,760 mm (69.3 in) long, 700 mm (27.6 in) wide and 550 mm (21.7 in) high, so a part of full length overhangs the X travel.
05
The DMV 145 is larger on every axis: 1,450 mm (57.1 in), 700 mm (27.6 in) and 550 mm (21.7 in) in X, Y and Z, against 1,100 mm (43.3 in), 600 mm (23.6 in) and 510 mm (20.1 in) on the DMV 110. It takes workpieces up to 2,000 kg (4,409.2 lb).

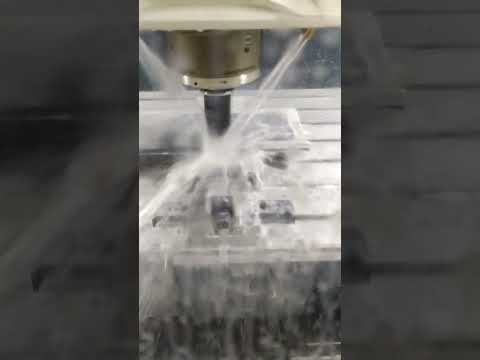

Videos
