AWEA AF-1400MAX

Q: How much does the AWEA AF-1400MAX cost?

The price estimate for the AWEA AF-1400MAX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-af-1400max#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

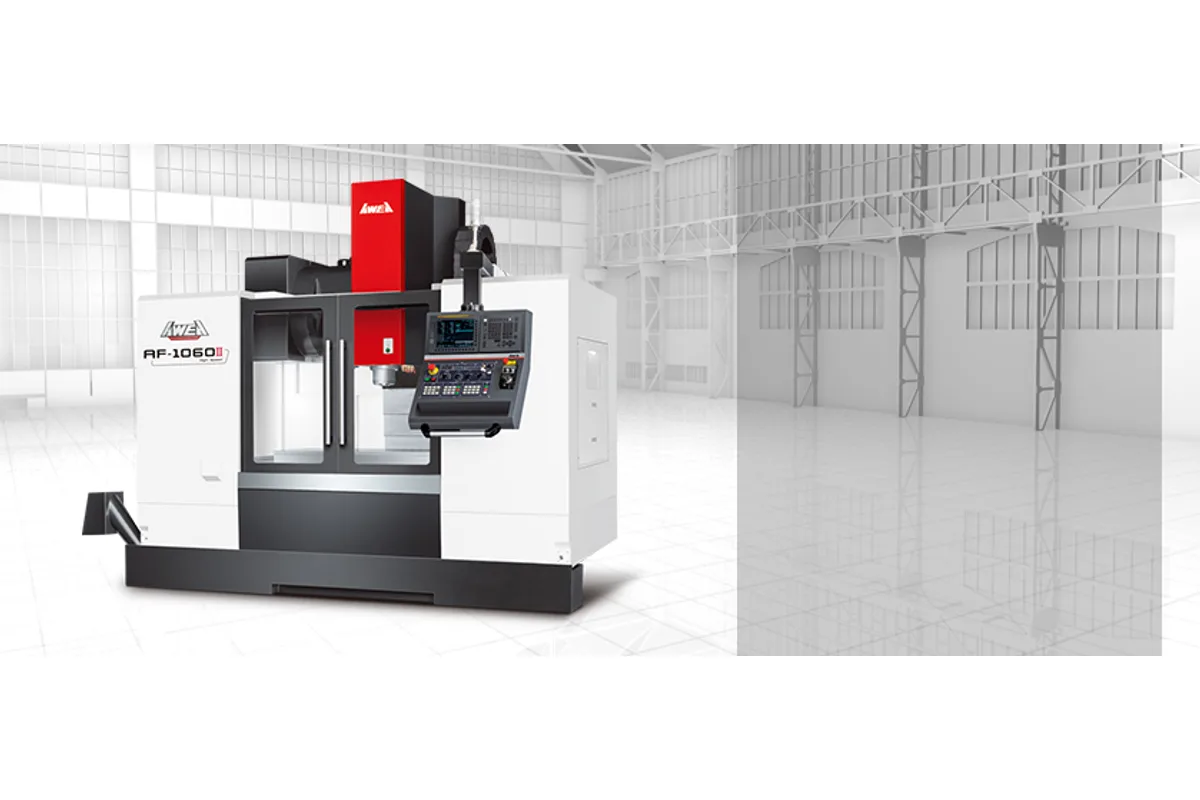

AWEA AF series vertical machining center (AF-1060II shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Direct-drive 12,000 rpm

Spindle Taper

BT40 (BT50 Opt.)

Tool Capacity

24 T

Table Size

1,500 x 800 mm (59.1 x 31.5 in)

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

Accuracy

0.008 mm

How much does the AWEA AF-1400MAX cost?

Price estimate

Uncertain

We do not have a price for the AWEA AF-1400MAX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA AF-1400MAX is the entry to the MAX group of the AF series, a set of three C-frame vertical machining centers with 800 mm (31.5 in) of travel in both Y and Z. X travel on this model is 1,400 mm (55.1 in). The table is 1,500 x 800 mm (59.1 x 31.5 in) and takes 1,200 kg (2,646 lb).

An 800 mm Y stroke on a C-frame puts the saddle a long way out. AWEA's answer is structural: the saddle travel of the MAX models is supported by four linear guideways, and the bed is extended to match the saddle's travel so the saddle does not overhang. The result is a machine of 14,000 kg (30,864 lb), heavier by a wide margin than the AF-1400II with its 8,100 kg (17,857 lb).

Height is the other gain. The spindle nose travels between 160 and 960 mm (6.3 ~ 37.8 in) above the table, and the spindle center is 903 mm (35.6 in) from the column. Deep die blocks, tall weldments and parts on a trunnion have room here that no AF-II model gives.

Pace is traded for that reach: 30 m/min (1,181 ipm) rapids in X and Y, 24 m/min (945 ipm) in Z and a 12 m/min (472 ipm) cutting feed rate. The standard spindle is the direct-drive 12,000 rpm BT40 unit with an 11 / 15 kW (14.8 / 20.1 hp) motor, and BT50 is optional. T-slots are 18 mm on a 150 mm pitch. The machine needs 40 kVA and carries a 610 liter coolant tank.

Full Specifications

Parameter	Value
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	800 mm (31.5 in)
Z Axis Travel	800 mm (31.5 in)
Table Size	1,500 x 800 mm (59.1 x 31.5 in)
Max Table Load	1,200 kg (2,646 lb)
Distance Spindle Center to Column	903 mm (35.6 in)
Distance Spindle Nose to Table	160 ~ 960 mm (6.3 ~ 37.8 in)
T-Slots	18 mm x 150 mm x 5
Spindle Taper	BT40 (BT50 Opt.)
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Max Spindle Speed	Direct-drive 12,000 rpm
Rapid Traverse Xy	30 m/min (1,181 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Cutting Feed Rate	12 m/min (472 ipm)
Tool Capacity	24 T
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in)
Positioning Accuracy	0.008 mm
Repeatability	0.006 mm
CNC Control	FANUC Oi - MF PLUS
Air Pressure Requirement	6 kg/cm²
Power Requirement	40 kVA
Coolant Tank Capacity	610 liter
Machine Weight	14,000 kg (30,864 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

800 mm (31.5 in) of travel in both Y and Z on a C-frame machine
Saddle supported by four linear guideways on an extended bed to avoid overhang
Spindle nose to table distance of 160 ~ 960 mm (6.3 ~ 37.8 in) for tall work
14,000 kg (30,864 lb) of machine weight behind a 1,400 mm (55.1 in) X travel
BT50 option alongside the standard 12,000 rpm direct-drive BT40 spindle

Limitations

Rapids of 30 m/min (1,181 ipm) in X and Y are well below the 48 m/min (1,890 ipm) of the AF-1400II
Cutting feed rate is limited to 12 m/min (472 ipm)
Table load of 1,200 kg (2,646 lb) is the lowest of the three MAX models
Requires 40 kVA and a foundation suited to 14,000 kg (30,864 lb)

Best For

Deep die and mold blocks needing 800 mm (31.5 in) of Z Wide parts that need the full 800 mm (31.5 in) of Y travel Tall fixtures or rotary setups under a 960 mm spindle height Heavier cutting with the optional BT50 spindle

Frequently Asked Questions

01 What does MAX mean on the AWEA AF-1400MAX?

AWEA does not define the word, but its tables show what changes. The three MAX models have 800 mm (31.5 in) of Y and Z travel, a spindle nose to table range of 160 ~ 960 mm (6.3 ~ 37.8 in), four linear guideways under the saddle and much higher machine weights. The AF-1400MAX weighs 14,000 kg (30,864 lb).

02 What are the travels and table size of the AF-1400MAX?

Travels are 1,400 mm (55.1 in) in X and 800 mm (31.5 in) in each of Y and Z. The table measures 1,500 x 800 mm (59.1 x 31.5 in), has five 18 mm T-slots at a 150 mm pitch and is rated for 1,200 kg (2,646 lb).

03 Why is the AF-1400MAX so much heavier than the AF-1400II?

The AF-1400MAX weighs 14,000 kg (30,864 lb) and the AF-1400II 8,100 kg (17,857 lb). AWEA states that on the MAX models the saddle is carried on four linear guideways and that the bed is extended according to the saddle's travel range to avoid overhang. The longer Y and Z strokes, 800 mm (31.5 in) each, need that larger structure.

04 What spindle options exist for the AF-1400MAX?

Standard is a direct-drive 12,000 rpm BT40 spindle with an 11 / 15 kW (14.8 / 20.1 hp) motor, and the table lists BT50 as an option. For the series AWEA also describes high torque gear spindles, 8,000 rpm in BT40 with 280 Nm at 375 rpm and 6,000 rpm in BT50 with 382 Nm at 375 rpm, each paired with a box way Z-axis. Confirm applicability with AWEA.

05 What are the feed rates of the AF-1400MAX?

Rapid feed is 30 m/min (1,181 ipm) on X and Y and 24 m/min (945 ipm) on Z. The cutting feed rate is 12 m/min (472 ipm). Positioning accuracy is listed at 0.008 mm and repeatability at 0.006 mm under ISO230-2.
