AWEA BM-1800 MAX

Q: How much does the AWEA BM-1800 MAX cost?

The price estimate for the AWEA BM-1800 MAX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-bm-1800-max#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

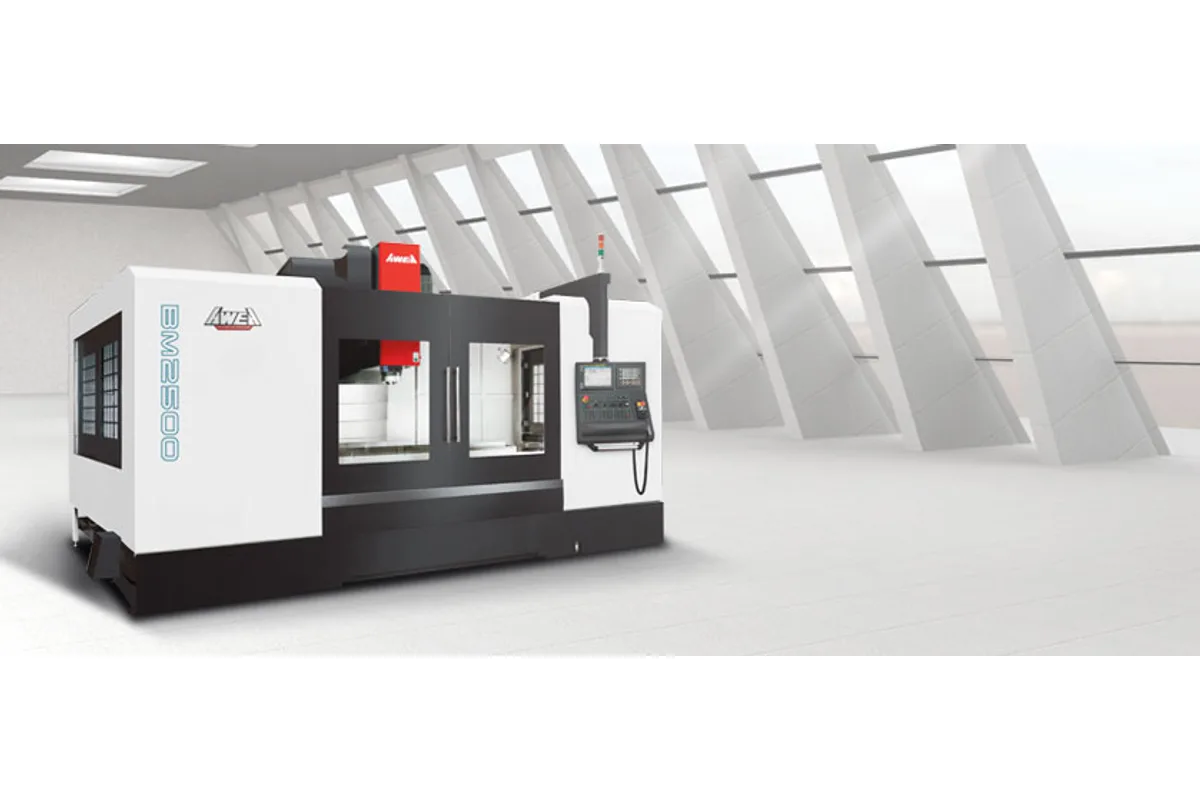

AWEA BM MAX series vertical machining center (BM-2500 MAX shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 6,000 rpm

Spindle Taper

BT50 / BT40 (Opt.)

Tool Capacity

24 T

Table Size

2,000 x 800 mm (78.7 x 31.5 in)

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

Accuracy

0.008 mm

How much does the AWEA BM-1800 MAX cost?

Price estimate

Uncertain

We do not have a price for the AWEA BM-1800 MAX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA BM-1800 MAX stretches the 800 mm-class BM frame to 1,800 mm (70.9 in) of X travel. Y and Z are both 800 mm (31.5 in). It is the longest BM that still uses the 11 / 15 kW (14.8 / 20.1 hp) gear spindle and the 900 mm (35.4 in) column reach; the next model, the BM-2100 MAX, moves to a wider frame and a larger motor.

Its table is listed at 2,000 x 800 mm (78.7 x 31.5 in), which is longer than the X travel. That is normal on long C-frame machines, and it means the ends of a full-length part cannot be reached by the spindle centerline. Plan clamping at the table ends and machining inside the stroke. The rating is 2,200 kg (4,850 lb).

At 17,000 kg (37,478 lb) the machine needs 40 kVA, a step above the 35 kVA of the BM-1600 MAX, while spindle, feeds and tooling stay as they are on that model: BT50 standard with BT40 optional, 6,000 rpm through a two-step gear box, 20 m/min (787 ipm) rapids in X and Y, 18 m/min (709 ipm) in Z, and a 24-tool magazine for tools up to 15 kg (33 lb).

Who needs it? Shops machining long die shoes, press plates, machine bases and similar parts that are heavy and long but not wide. For those, a C-frame box-way machine keeps the table open at the front and sides for crane loading. AWEA lists positioning accuracy of 0.008 mm and repeatability of 0.006 mm, and a 620 liter coolant tank.

Full Specifications

Parameter	Value
X Axis Travel	1,800 mm (70.9 in)
Y Axis Travel	800 mm (31.5 in)
Z Axis Travel	800 mm (31.5 in)
Table Size	2,000 x 800 mm (78.7 x 31.5 in)
Max Table Load	2,200 kg (4,850 lb)
Distance Spindle Center to Column	900 mm (35.4 in)
Distance Spindle Nose to Table	200 ~ 1,000 mm (7.9 ~ 39.4 in)
Spindle Taper	BT50 / BT40 (Opt.)
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Max Spindle Speed	Gear Spindle 6,000 rpm
Rapid Traverse Xy	20 m/min (787 ipm)
Rapid Traverse Z	18 m/min (709 ipm)
Cutting Feed Rate	1 - 12 m/min (39 - 472 ipm)
Tool Capacity	24 T
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	15 kg (33 lb)
Max Tool Diameter (full magazine)	Ø105 / Ø210 mm (Ø4.1 / Ø8.3 in)
Positioning Accuracy	0.008 mm
Repeatability	0.006 mm
CNC Control	FANUC Oi -MF Plus
Air Pressure Requirement	6 kg/cm²
Power Requirement	40 kVA
Coolant Tank Capacity	620 liter
Machine Weight	17,000 kg (37,478 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,800 mm (70.9 in) of X travel with 800 mm (31.5 in) in Y and Z
2,000 x 800 mm (78.7 x 31.5 in) table rated for 2,200 kg (4,850 lb)
BT50 gear spindle, 6,000 rpm, with the option of BT40
17,000 kg (37,478 lb) box-way machine with an open C-frame table for crane loading
Spindle nose to table distance of 200 ~ 1,000 mm (7.9 ~ 39.4 in)

Limitations

Table is longer than the X travel, so the full table length cannot be machined in one setup
Spindle motor remains 11 / 15 kW (14.8 / 20.1 hp) despite the larger table
Needs a 40 kVA supply, more than the 35 kVA of the BM-1600 MAX
Rapids of 20 m/min (787 ipm) and a 1 - 12 m/min (39 - 472 ipm) cutting feed range

Best For

Long die shoes, press plates and machine bases Workpieces up to 2,200 kg (4,850 lb) loaded by crane Heavy roughing with 50-taper tooling Long parts with deep features using 800 mm (31.5 in) of Z

Frequently Asked Questions

01 How long a part can the AWEA BM-1800 MAX machine?

X travel is 1,800 mm (70.9 in). The table itself is 2,000 x 800 mm (78.7 x 31.5 in), so it can hold a longer part than the spindle can cover in one setup. Y and Z travel are each 800 mm (31.5 in), and the table carries 2,200 kg (4,850 lb).

02 What is the difference between the BM-1800 MAX and the BM-2100 MAX?

The BM-2100 MAX is built on a larger frame: 2,100 mm (82.7 in) of X, 1,000 mm (39.4 in) of Y and Z, a 15 / 18.5 kW (20.1 / 24.8 hp) spindle motor, a 3,000 kg (6,614 lb) table and 15 m/min (591 ipm) rapids. The BM-1800 MAX has 800 mm (31.5 in) of Y and Z, an 11 / 15 kW (14.8 / 20.1 hp) motor and 20 m/min (787 ipm) rapids.

03 Which spindle tapers are offered on the BM-1800 MAX?

BT50 is standard and BT40 optional, according to both the specification table and AWEA's spindle taper chart for the series. The listed spindle is a gear spindle with a top speed of 6,000 rpm.

04 What installation data does AWEA give for the BM-1800 MAX?

Machine weight 17,000 kg (37,478 lb), power requirement 40 kVA, pneumatic pressure 6 kg/cm² and a coolant tank of 620 liter. Chips are cleared by three screw type augers on this size, with a chain type chip conveyor available as an option.
