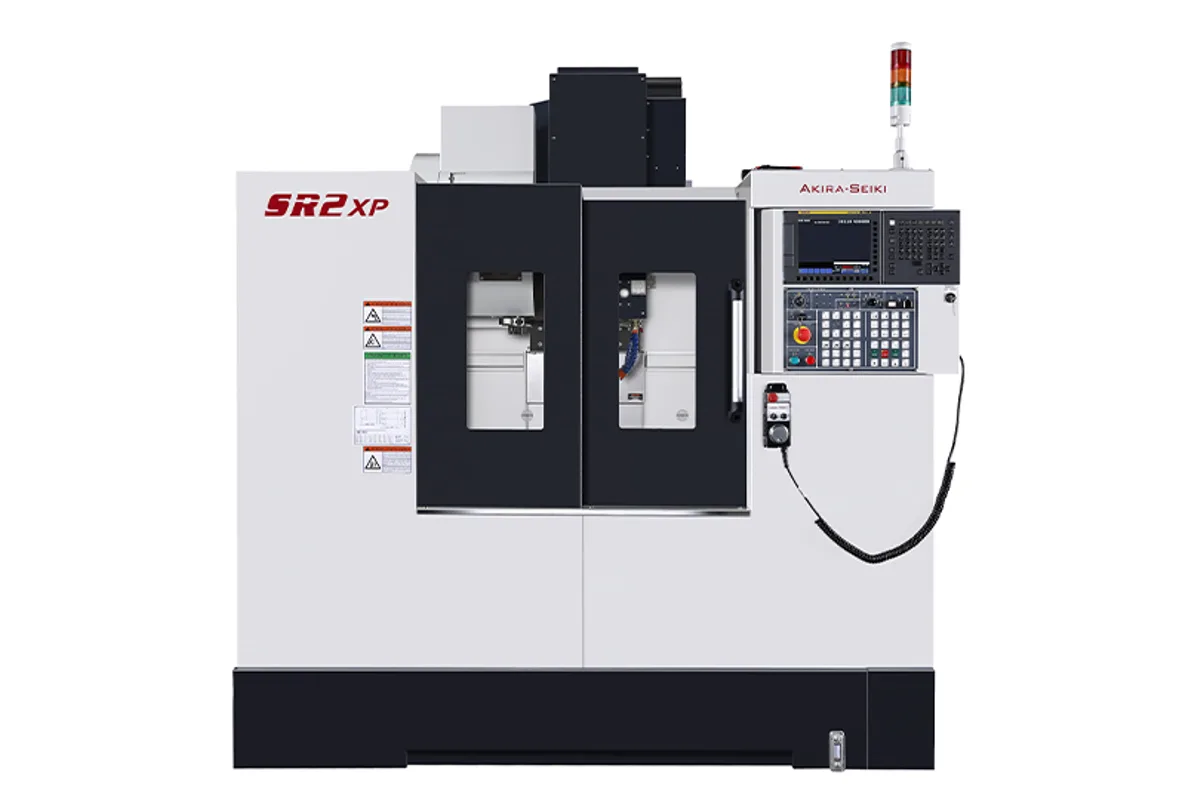

Akira Seiki SR2 XP
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki SR2 XP cost?
Price estimate
We do not have a price for the Akira Seiki SR2 XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 700 x 380 mm (28 x 15 in) table under 550 mm (21.7 in) of X travel is what separates the Akira Seiki SR2 XP from the JR XP below it. Y and Z are unchanged at 430 mm (16.9 in) and 460 mm (18.1 in), and both machines stand on the same 2,400 x 1,935 mm (94 x 76 in) of floor. The extra X comes without a larger footprint.
Spindle power rises too. The SR2 XP has 15 HP (11.2 kW) peak against 12 HP (8.9 kW) on the JR XP, at the same 11,000 rpm and BT40 taper. The magazine grows from 16T to 20T. For a general job shop that is the more useful step: four more pockets often decide whether a part runs in one setup.
Rapid traverse is 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) and cutting feed 12 / 12 / 10 m/min (472 / 472 / 394 ipm). Those are quick axes for a machine of this size, and the 2.2 s tool change keeps pace with them.
The table carries 480 kg (1,058 lb) as a standard load and 576 kg (1,270 lb) at most, on four 16 mm T-slots. Services are 20 kVA and 0.5 MPa (72.5 psi) of air. Coolant capacity is 150 L (39.6 gal), which is small, so expect to top up often on long aluminium runs.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 550 mm (21.7 in) |
| Y Axis Travel | 430 mm (16.9 in) |
| Z Axis Travel | 460 mm (18.1 in) |
| Distance Spindle Nose to Table | 75~535 mm (3~21 in) |
| Spindle Center to Column Cover | 435 mm (17 in) |
| Table Size | 700 x 380 mm (28 x 15 in) |
| T-Slots | 16 mm x 80 mm pitch x 4 slots |
| Max Table Load | 576 kg (1,270 lb) |
| Standard Table Load | 480 kg (1,058 lb) |
| Spindle Motor Power | 15 HP (11.2 kW) |
| Max Spindle Speed | 11,000 rpm |
| Spindle Taper | BT40 |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) |
| Cutting Feed Rate | 12 / 12 / 10 m/min (472 / 472 / 394 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 20T |
| Max Tool Diameter (full magazine) | 75 mm (3 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Coolant Tank Capacity | 150 L (39.6 gal) |
| Chip Disposal | Chip Screw |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 20 kVA |
| Machine Dimensions | 2,400 x 1,935 mm (94 x 76 in) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 550 mm (21.7 in) of X travel on a 2,400 x 1,935 mm (94 x 76 in) footprint
- 15 HP (11.2 kW) peak at 11,000 rpm through a BT40 taper
- Rapids of 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm)
- 20T magazine with a 2.2 s tool change
- Runs on a 20 kVA supply with 0.5 MPa (72.5 psi) air
Limitations
- Coolant tank is only 150 L (39.6 gal)
- Y travel of 430 mm (16.9 in) is short against the 540 mm (21.3 in) of the SR32 XP
- Adjacent tools are limited to 75 mm (3 in) in diameter
- The table lists no spindle torque figure
Best For
Frequently Asked Questions
01
550 mm (21.7 in) in X, 430 mm (16.9 in) in Y and 460 mm (18.1 in) in Z. The table is 700 x 380 mm (28 x 15 in) and the spindle nose sits 75~535 mm (3~21 in) above it.
02
Rapid traverse is listed as 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) for X / Y / Z, and cutting feed as 12 / 12 / 10 m/min (472 / 472 / 394 ipm). Tool change time is 2.2 s, tool to tool.
03
The SR3 XP, which has 762 mm (30 in) of X travel and a 910 x 380 mm (36 x 15 in) table with the same spindle, the same 20T magazine and the same Y and Z travels. The SR2 XP is the choice when parts stay inside 550 mm (21.7 in).
04
The magazine holds 20T. A tool can be 75 mm (3 in) in diameter with neighbours in place or 150 mm (5.9 in) with the adjacent pockets empty, up to 250 mm (9.8 in) long and 7 kg (15 lb) in weight.
