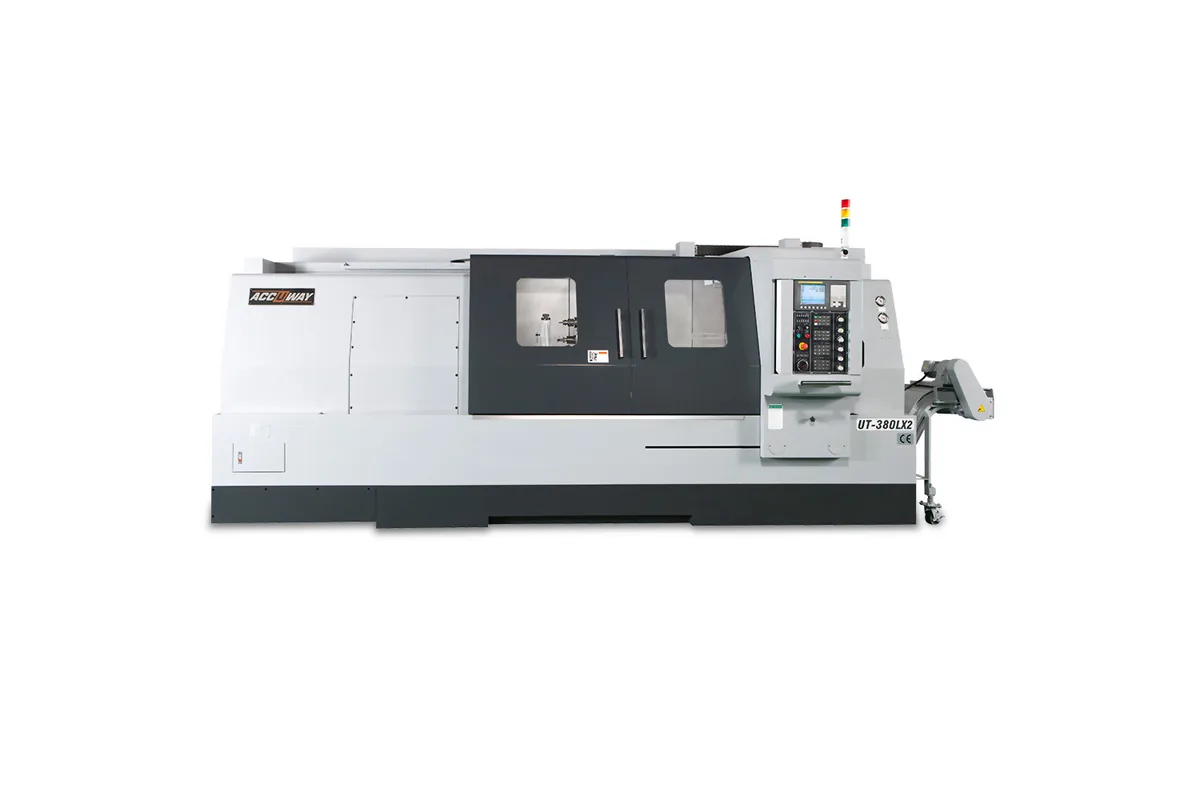

Accuway UT-380LX2
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Max Turn Length
control
swing over bed
swing over saddle
max turning diameter
How much does the Accuway UT-380LX2 cost?
Price estimate
We do not have a price for the Accuway UT-380LX2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-380LX2 handles work up to 680 mm (26.8 in) in diameter and 2,130 mm (83.9 in) long. Its Z travel is 2,250 mm (88.6 in), and it weighs 12,200 kg (26,896 lb).
One row is missing from the table on this page. The spindle motor power is printed with a stray bracket on Accuway's site, so it is not reproduced here. The gear box is named under standard accessories, as on the other UT-380 models, and the speed row is intact: 2,700 rpm, 2,500 rpm, 2,000 rpm and 1,800 rpm across the four spindle columns. Confirm the motor rating with the maker.
This bed is built differently from the shorter ones. The dimension row reads 6.4 x 2.2 x 2.4 m (252.0 x 86.6 x 94.5 in), so the machine is taller than the UT-380LX and nearly a metre longer than the equally long-travel UT-360LX2, which is 5.5 m. Z rapid traverse is 15 m/min (591 in/min).
Turning length by column is 2,130 mm (83.9 in), 2,050 mm (80.7 in), 2,050 mm (80.7 in) and 1,990 mm (78.3 in). With the A2-15 nose, the 18 in chuck and the 166.5 mm (6.6 in) bore, two-metre pipe can be chucked through the spindle and supported by the MT#6 tailstock, whose body travels 2,040 mm (80.3 in). A steady rest is optional. The turret has 12 BOT stations.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 850 mm (33.5 in) |
| Swing Over Saddle | 700 mm (27.6 in) |
| Max Turning Diameter | 680 mm (26.8 in) |
| Max Turning Length | 2,130 / 2,050 / 2,050 / 1,990 mm (83.9 / 80.7 / 80.7 / 78.3 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 / A2-15 |
| Chuck Size | 12 / 15 / 15 / 18 in |
| Bar Capacity | 90 / 105 / 116.5 / 166.5 mm (3.5 / 4.1 / 4.6 / 6.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 / 1,800 rpm |
| X Axis Travel | 370 mm (14.6 in) |
| Z Axis Travel | 2,250 mm (88.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 2,040 mm (80.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 6.4 x 2.2 x 2.4 m (252.0 x 86.6 x 94.5 in) |
| Machine Weight | 12,200 kg (26,896 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,130 mm (83.9 in) turning length at 680 mm (26.8 in) diameter
- 166.5 mm (6.6 in) bar capacity with the A2-15 nose and 18 in chuck
- 12,200 kg (26,896 lb) machine weight
- Gear box listed as a standard accessory
- Tailstock body travel of 2,040 mm (80.3 in)
Limitations
- Spindle motor power is not usable from the maker's page and must be confirmed
- Z rapid traverse of 15 m/min (591 in/min)
- 6.4 m long and 2.4 m high
- Steady rest and power turret are optional
Best For
Frequently Asked Questions
01
The machine is 6.4 x 2.2 x 2.4 m (252.0 x 86.6 x 94.5 in) as length, width and height and weighs 12,200 kg (26,896 lb). Swing over bed is 850 mm (33.5 in) and swing over saddle 700 mm (27.6 in).
02
This page leaves the row out because the maker's site prints it with a misplaced bracket. Spindle speeds are 2,700, 2,500, 2,000 and 1,800 rpm by column and a gear box is a standard accessory. Ask Accuway for the motor rating.
03
The UT-380LX3 has 3,182 mm (125.3 in) of Z travel, weighs 14,200 kg (31,305 lb) and rapids at 10 m/min (394 in/min) in Z. The UT-380LX2 has 2,250 mm (88.6 in), 12,200 kg (26,896 lb) and 15 m/min (591 in/min).
04
The turret has 12 stations with BOT tooling and Hydraulic/Servo drive. Square shank tools are 32 mm (1.3 in) and round shank tools 50 mm (2.0 in). A 12-station servo turret and an APT 50 power turret are optional accessories.
