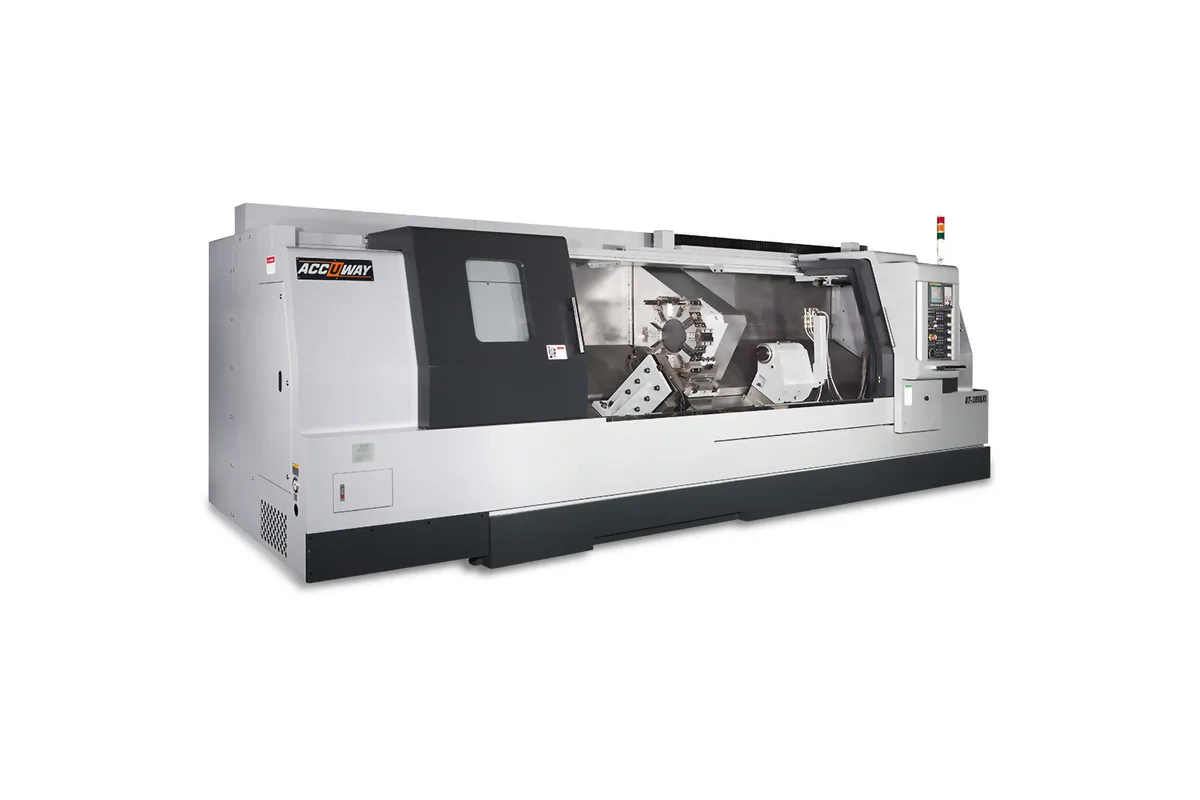

Accuway UT-380LX3
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-380LX3 cost?
Price estimate
We do not have a price for the Accuway UT-380LX3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 14,200 kg (31,305 lb) and 7.9 m long, the Accuway UT-380LX3 is the largest machine in the UT-380 series. It turns 680 mm (26.8 in) in diameter over a Z travel of 3,182 mm (125.3 in).
Turning length runs from 3,062 mm (120.6 in) with the A2-8 nose to 2,922 mm (115.0 in) with the A2-15 nose. Tailstock body travel is 3,040 mm (119.7 in). In practice this is a lathe for three-metre rolls, shafts and pipe, where the 700 mm (27.6 in) swing over the saddle allows large journals or collars anywhere along the part.
Planning the installation matters as much as the cutting figures. The outline is 7.9 x 2.2 x 2.4 m (311.0 x 86.6 x 94.5 in). Add the chip conveyor, the swing of the electrical cabinet doors, and room to load a three-metre part by crane from above or from the front, and the working area becomes much larger than the machine. Z moves at 10 m/min (394 in/min) in rapid, X at 20 m/min (787 in/min).
The headstock is the series unit with a 2-step gearbox: 18.5/22 kW (24.8/29.5 hp), and 30/37 kW (40.2/49.6 hp) printed in brackets. Chucks from 12 in to 18 in are tabled, and the largest bore is 166.5 mm (6.6 in). Steady rest, linear scale and auto door are optional accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 850 mm (33.5 in) |
| Swing Over Saddle | 700 mm (27.6 in) |
| Max Turning Diameter | 680 mm (26.8 in) |
| Max Turning Length | 3,062 / 2,982 / 2,982 / 2,922 mm (120.6 / 117.4 / 117.4 / 115.0 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 / A2-15 |
| Chuck Size | 12 / 15 / 15 / 18 in |
| Bar Capacity | 90 / 105 / 116.5 / 166.5 mm (3.5 / 4.1 / 4.6 / 6.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 / 1,800 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) + 2-step gearbox |
| X Axis Travel | 370 mm (14.6 in) |
| Z Axis Travel | 3,182 mm (125.3 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 10 m/min (394 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 3,040 mm (119.7 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 7.9 x 2.2 x 2.4 m (311.0 x 86.6 x 94.5 in) |
| Machine Weight | 14,200 kg (31,305 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,062 mm (120.6 in) turning length at 680 mm (26.8 in) diameter
- 14,200 kg (31,305 lb) machine weight
- 18 in chuck and 166.5 mm (6.6 in) bore in the A2-15 column
- Standard gear box with 2-step ratio
- MT#6 tailstock with 3,040 mm (119.7 in) of body travel
Limitations
- Z rapid traverse of 10 m/min (394 in/min)
- 7.9 m length needs a long bay and crane access
- Steady rest is an optional accessory
- Top speed of 1,800 rpm with the A2-15 spindle
Best For
Frequently Asked Questions
01
7.9 x 2.2 x 2.4 m (311.0 x 86.6 x 94.5 in) as length, width and height, with a net weight of 14,200 kg (31,305 lb). Z-axis travel is 3,182 mm (125.3 in) and X-axis travel 370 mm (14.6 in).
02
3,062 mm (120.6 in) with the A2-8 nose, 2,982 mm (117.4 in) with either A2-11 column and 2,922 mm (115.0 in) with the A2-15 nose. Maximum turning diameter is 680 mm (26.8 in) in all four.
03
The UT-360LX3 weighs 11,000 kg (24,250 lb), is 7 m long and turns 540 mm (21.3 in). The UT-380LX3 weighs 14,200 kg (31,305 lb), is 7.9 m long and turns 680 mm (26.8 in). Z travel is 3,182 mm (125.3 in) on both.
04
The spindle motor power row gives 18.5/22 kW (24.8/29.5 hp) with a 2-step gearbox and shows 30/37 kW (40.2/49.6 hp) in brackets. Maximum speeds are 2,700, 2,500, 2,000 and 1,800 rpm across the four columns.
