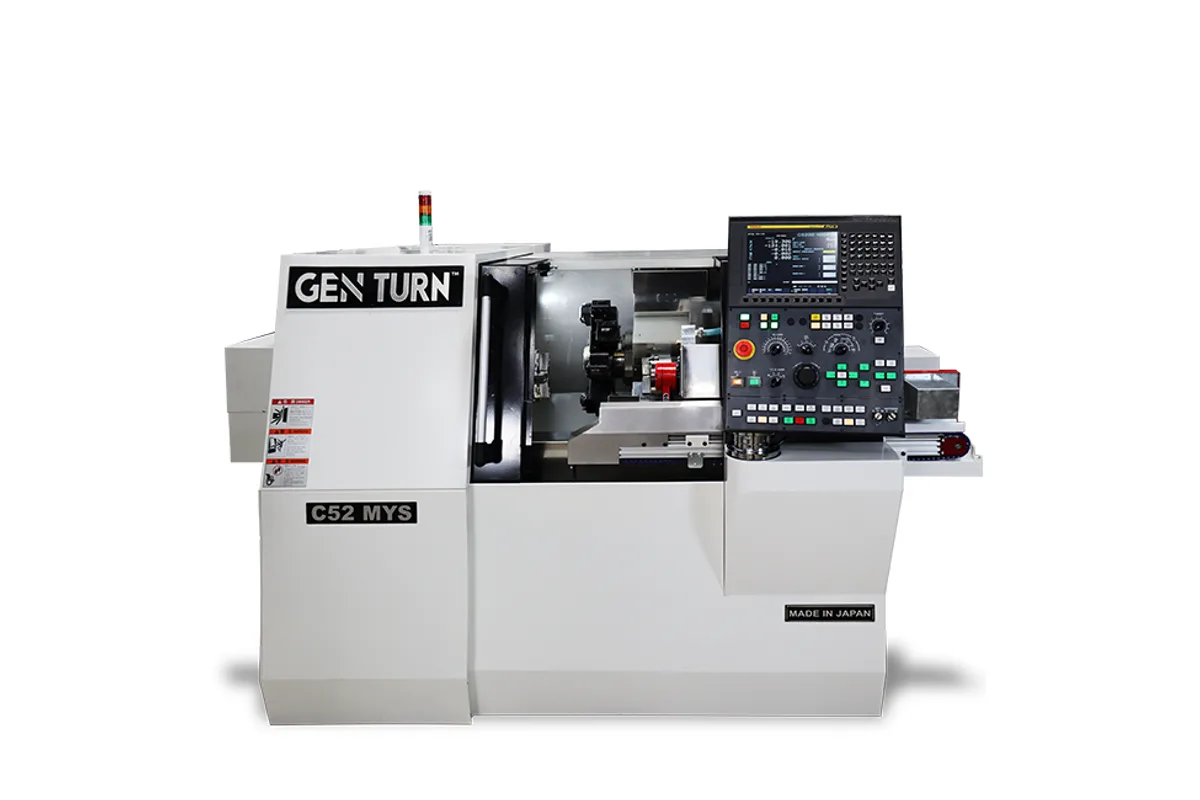

Ganesh GEN TURN C52 MYS

Q: How much does the Ganesh GEN TURN C52 MYS cost?

The price estimate for the Ganesh GEN TURN C52 MYS is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-turn-c52-mys#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

5,000 rpm, built-in integral spindle motor

Rapid Traverse

787 ipm (20 m/min) X, Z and B

Spindle Power

12 HP (9.0 kW), 30-minute duty rated

bar capacity

2.04 in (52 mm)

max chucking diameter

8 in (203 mm)

max swing

9.84 in (250 mm)

How much does the Ganesh GEN TURN C52 MYS cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN TURN C52 MYS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

One turret, two spindles and a Y axis: the GEN TURN C52 MYS is the conventional turning-center layout in a line otherwise full of gang-tool and Swiss machines. A 12-station BMT 44 live tool turret serves both the main spindle and the sub-spindle, and bar capacity is 2.04 in (52 mm).

The main spindle is a built-in motor unit rated 12 HP (9.0 kW) on the 30-minute rating at up to 5,000 rpm, on an A2-6 nose. Chucking work is allowed up to 8 in (203 mm) under a 9.84 in (250 mm) swing. The sub-spindle has 10 HP (7.5 kW), the same 5,000 rpm, a 6 in (152 mm) chucking diameter and 14.76 in (375 mm) of travel to come across and take the part. Expand Machinery supplies 6 in chucks for both spindles.

X travel is 6.693 in (170 mm) and Z travel 12.598 in (320 mm). The Y axis moves 2.362 in (60 mm) in total, ±30 mm about the centerline, which covers keyways, flats and off-center holes on bar-sized parts. Y is a slow axis here, with a rapid of 118 ipm (3 m/min) against 787 ipm (20 m/min) for X, Z and B. All 12 stations can drive a tool at up to 6,000 rpm, but the driven tool motor is 1.34 HP (1.0 kW), so milling is light work: drilling, small slots and deburring, not heavy cuts.

A Marposs tool probe is fitted for setup and a parts catcher with conveyor is included. Coolant is delivered at 135 psi. The machine weighs 8,377 lb (3,800 kg) in a footprint of 84 x 65 x 76 in with the rear discharge chip conveyor. The GEN TURN CW52MY adds a second turret with its own Y axis on the same spindle size.

Full Specifications

Parameter	Value
Bar Capacity	2.04 in (52 mm)
Max Chucking Diameter	8 in (203 mm)
Max Swing	9.84 in (250 mm)
Max Spindle Speed	5,000 rpm, built-in integral spindle motor
Spindle Motor Power	12 HP (9.0 kW), 30-minute duty rated
Spindle Nose	A2-6
Sub Spindle Speed	5,000 rpm, built-in integral spindle motor
Sub Spindle Power	10 HP (7.5 kW), 30-minute duty rated
Sub Spindle Nose	A2-6
Sub Spindle Chucking Diameter	6 in (152 mm)
Sub Spindle Travel	14.76 in (375 mm)
X Axis Travel	6.693 in (170 mm)
Z Axis Travel	12.598 in (320 mm)
Y Axis Travel	2.362 in (60 mm), ±30 mm (1.181 in)
Rapid Traverse Rate	787 ipm (20 m/min) X, Z and B
Rapid Traverse Y	118 ipm (3 m/min)
Turret Stations	12 driven tool stations
Live Tool Speed	6,000 rpm, higher with speeder tools
Live Tool Power	1.34 HP (1.0 kW)
Turret Indexing	Hydraulic motor, 1 second indexing time
Coolant Pressure	135 psi
Machine Weight	8,377 lb (3,800 kg)
Machine Dimensions	84 x 65 x 76 in (W x D x H) with rear discharge chip conveyor
Coolant Tank Capacity	43.5 gallons (165 liters)
Power Requirement	220 VAC ±10%, 38 kVA, 3-phase
Air Requirement	0.4 - 0.5 MPa, 150 L/min

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

12-station BMT 44 live tool turret with every station driven, to 6,000 rpm
Twin built-in spindles at 5,000 rpm: 12 HP (9.0 kW) main, 10 HP (7.5 kW) sub
Y axis of 2.362 in (60 mm) for milling off centerline
Marposs tool probe, parts catcher and conveyor included
Compact at 84 x 65 x 76 in and 8,377 lb (3,800 kg)

Limitations

A single turret cannot cut on both spindles at the same time
Driven tool motor is 1.34 HP (1.0 kW)
Y-axis rapid is 118 ipm (3 m/min)
Z travel of 12.598 in (320 mm) limits part length

Best For

Bar work up to 2.04 in (52 mm) finished on both ends Chucked parts up to 8 in (203 mm) on the main spindle Turned parts with light cross drilling, flats and keyways Shops that prefer turret tooling to gang tooling

Frequently Asked Questions

01 How many axes does the GEN TURN C52 MYS have?

Expand Machinery lists it as a 6-axis twin-spindle, single-turret machine with a Y axis. The turret travels 6.693 in (170 mm) in X, 12.598 in (320 mm) in Z and 2.362 in (60 mm) in Y, and the sub-spindle has a maximum travel distance of 14.76 in (375 mm).

02 What turret and live tooling does it have?

A 12-station BMT 44 live tool turret. All 12 stations are driven, the driven tool speed is 6,000 rpm (higher with speeder tools) and the driven tool servo motor is 1.34 HP (1.0 kW). Indexing is by hydraulic motor with a 1 second indexing time.

03 What size work fits?

Bar up to 2.04 in (52 mm) through the main spindle. Maximum chucking diameter is 8 in (203 mm) on the main spindle and 6 in (152 mm) on the sub-spindle, and maximum swing is 9.84 in (250 mm).

04 How does it differ from the GEN TURN CW52MY?

The GEN TURN C52 MYS has one turret and a 10 HP (7.5 kW) sub-spindle. The GEN TURN CW52MY has a turret for each spindle, each with a Y axis, and 12 HP (9.0 kW) on both spindles, and it weighs 10,584 lb (4,800 kg) against 8,377 lb (3,800 kg).

05 What services does the C52 MYS need?

Electrical supply is 220 VAC ±10%, 3-phase at 38 kVA. Air is 0.4 - 0.5 MPa at 150 L/min. Coolant capacity is 43.5 gallons (165 liters) and coolant pressure is 135 psi.
