Accuway UT-100M

Q: How much does the Accuway UT-100M cost?

The price estimate for the Accuway UT-100M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-100m#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

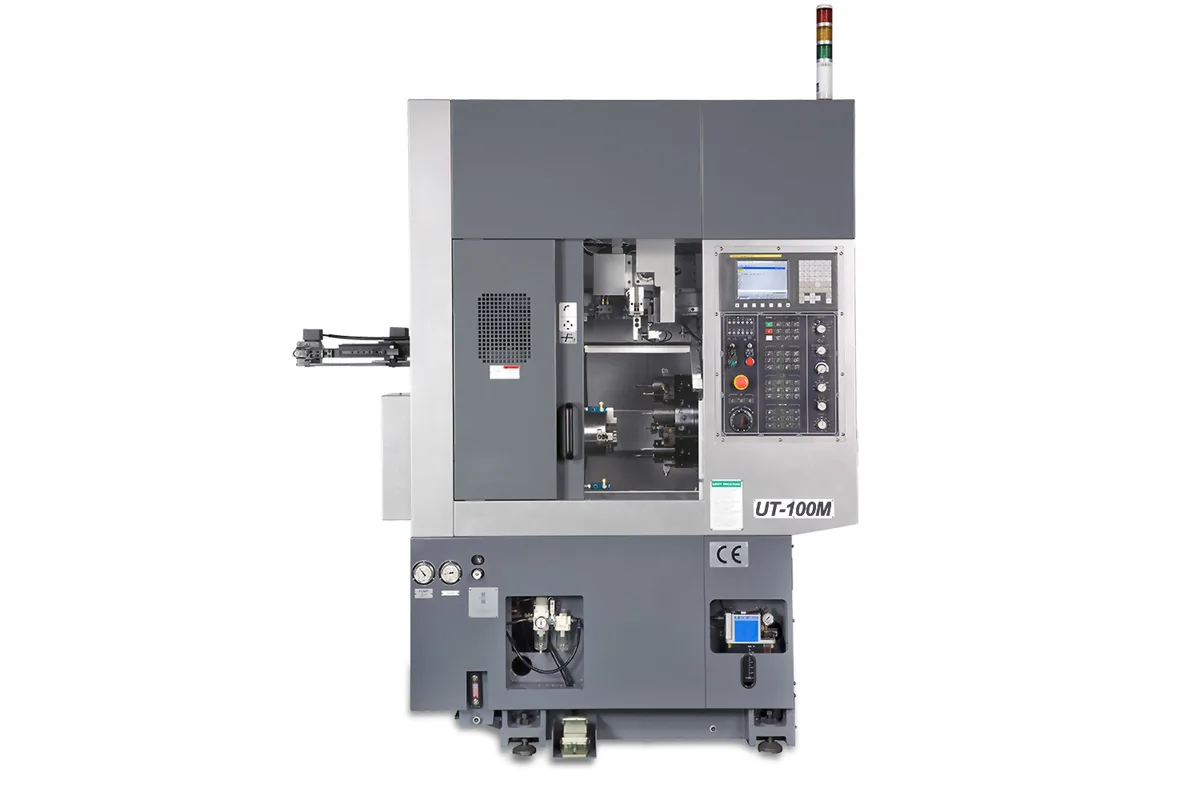

Accuway UT-100M compact CNC lathe for automatic machining

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 rpm

Spindle Power

Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)

Max Turn Length

130 mm (5.1 in)

control

FANUC 0i-T

swing over bed

380 mm (15.0 in)

swing over saddle

320 mm (12.6 in)

How much does the Accuway UT-100M cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-100M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Small turned parts that also need a cross hole or a milled slot can run unattended on the Accuway UT-100M. It is the UT-100 loader lathe with rotary tools: 6,000 rpm at the tool, a 3.7/5.5 kW (5.0/7.4 hp) driver, 12 stations.

Live tooling narrows the turning envelope sharply on a machine this small. The maximum turning diameter is 100 mm (3.9 in), where the UT-100 turns 180 mm (7.1 in), and the turning length is 130 mm (5.1 in). In practice that changes little, because the integrated loader only carries material of 10~60 mm (0.4~2.4 in) in diameter and 20~100 mm (0.8~3.9 in) in length. The machine is sized around the part the loader can lift.

Rotary tool speed equals spindle speed here, both 6,000 rpm. For small drills and end mills that is the limit to keep in mind: tools of a few millimetres in aluminium or brass would want more. The main motor is 5.5/7.5 kW (7.4/10.1 hp) on an A2-5 nose with a 6 in chuck.

Size and weight do not change from the two-axis model: 1.7 x 1.6 x 2.2 m (66.9 x 63.0 x 86.6 in) and 1,900 kg (4,189 lb). The 0 degree and 90 degree rotary tool holders are optional accessories, and so is a 15 bar high pressure coolant system. The table shows no Y axis; the UT-100Y is the version that has one.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	380 mm (15.0 in)
Swing Over Saddle	320 mm (12.6 in)
Max Turning Diameter	100 mm (3.9 in)
Max Turning Length	130 mm (5.1 in)
Guideway Type	Box
Spindle Nose	A2-5
Chuck Size	6 in
Bar Capacity	30 mm (1.2 in)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	120 mm (4.7 in)
Z Axis Travel	230 mm (9.1 in)
Rapid Traverse X	12 m/min (472 in/min)
Rapid Traverse Z	18 m/min (709 in/min)
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Driver Power	3.7/5.5 kW (5.0/7.4 hp)
Machine Dimensions	L x W x H: 1.7 x 1.6 x 2.2 m (66.9 x 63.0 x 86.6 in)
Machine Weight	1,900 kg (4,189 lb)
Loader Material Diameter	10~60 mm (0.4~2.4 in)
Loader Material Length	20~100 mm (0.8~3.9 in)
Loader Material Weight	One side: 0.5/1 kg (1/2 lb)
Loader Z Stroke	360 mm (14.2 in)
Loader Z Rapid Traverse	84 m/min (3,307 in/min)
Loader Y Stroke	360 mm (14.2 in)
Loader Y Rapid Traverse	84 m/min (3,307 in/min)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Rotary tools at 6,000 rpm with a 3.7/5.5 kW (5.0/7.4 hp) driver
Integrated loader, both axes at 84 m/min (3,307 in/min)
Same 1.7 m long footprint and 1,900 kg (4,189 lb) as the UT-100
12-station turret and a 6,000 rpm main spindle

Limitations

Turning diameter limited to 100 mm (3.9 in)
Turning length of 130 mm (5.1 in)
No Y axis: milled features are on the centreline
Rotary tool holders are optional accessories

Best For

Small fittings with cross-drilled holes Chucked blanks needing a slot or flat High-volume parts finished in one loader cycle Lights-out production of parts under 60 mm diameter

Frequently Asked Questions

01 What does the Accuway UT-100M add to the UT-100?

Rotary tools. The UT-100 has none; the UT-100M has a rotary tool speed of 6,000 rpm and a driver power of 3.7/5.5 kW (5.0/7.4 hp). Its turning diameter is 100 mm (3.9 in) against 180 mm (7.1 in) for the UT-100.

02 What is the loader specification of the UT-100M?

Material diameter 10~60 mm (0.4~2.4 in), material length 20~100 mm (0.8~3.9 in), weight One side: 0.5/1 kg (1/2 lb). The loader's Z and Y strokes are both 360 mm (14.2 in), with rapid traverse of 84 m/min (3,307 in/min).

03 What are the travels and rapids of the UT-100M?

X travel is 120 mm (4.7 in) and Z travel 230 mm (9.1 in). X rapid traverse is 12 m/min (472 in/min) and Z rapid traverse 18 m/min (709 in/min). Guideways are box type.

04 Is there a larger-capacity loader version of the UT-100M?

The UT-100MX carries material of 20~150 mm (0.8~5.9 in) in diameter, has a loader Z stroke of 1,650 mm (65.0 in), turns 220 mm (8.7 in) and weighs 2,200 kg (4,850 lb).
