Accuway UT-300LSM

Q: How much does the Accuway UT-300LSM cost?

The price estimate for the Accuway UT-300LSM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-300lsm#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

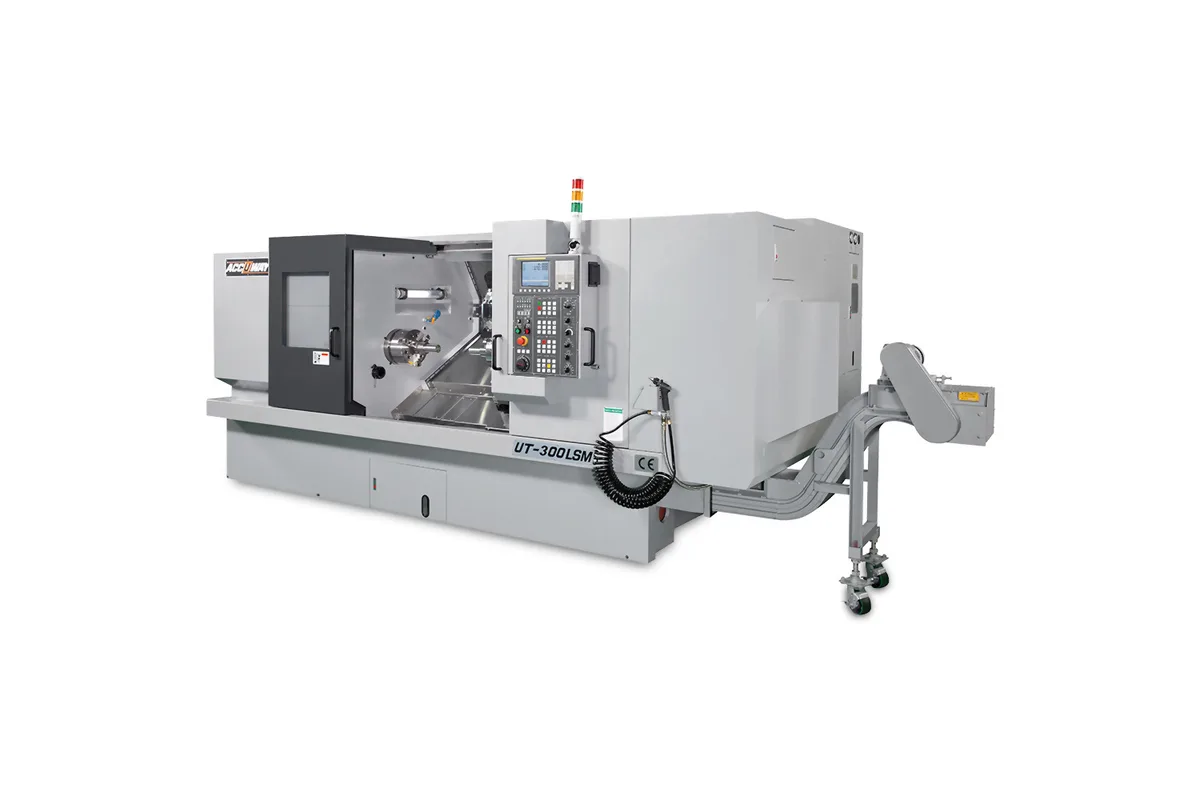

Accuway UT-300LS / UT-300LSM slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

3,500 / 2,700 / 2,500 / 2,000 rpm

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)

Max Turn Length

1,040 / 1,040 / 970 / 970 mm (40.9 / 40.9 / 38.2 / 38.2 in)

control

FANUC 0i-T

swing over bed

700 mm (27.6 in)

swing over saddle

500 mm (19.7 in)

How much does the Accuway UT-300LSM cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-300LSM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

On the Accuway UT-300LSM a BMT-65 live turret travels 1,250 mm (49.2 in) between a large main spindle and an A2-5 second spindle. It is the long-bed, two-spindle, rotary-tool member of the UT-300 line, without a Y axis.

Length is the reason to choose it over the UT-300SM. The B axis runs 1,200 mm (47.2 in), where the UT-300SM offers 700 mm (27.6 in), and turning length is 1,040 mm (40.9 in) in the A2-8 columns and 970 mm (38.2 in) in the A2-11 columns. A long part can be drilled and keyed along its length while the second spindle steadies the free end, then cut off or released and finished on the back.

Cross-section figures match the short SM: 700 mm (27.6 in) swing over bed, 500 mm (19.7 in) over the saddle, and turning diameters of 480 mm (18.9 in) at SP1 and 375 mm (14.8 in) at SP2. X travel is printed as 275 mm (10.8 in). Rotary tools run at 4,000 rpm from a 3.7/5.5 kW (5.0/7.4 hp) motor.

Surprisingly, the listed weight is the same 6,200 kg (13,668 lb) as the turning-only UT-300LS, and the length is given as 3.9 m. Buyers comparing the two should not expect the live turret to change the foundation. Spindle 2 has 5.5/7.5 kW (7.4/10.1 hp). Its 44 mm (1.7 in) bore is small beside the main spindle's 75 mm (3.0 in) to 116.5 mm (4.6 in).

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	700 mm (27.6 in)
Swing Over Saddle	500 mm (19.7 in)
Max Turning Diameter Sp1	480 mm (18.9 in)
Max Turning Diameter Sp2	375 mm (14.8 in)
Max Turning Length	1,040 / 1,040 / 970 / 970 mm (40.9 / 40.9 / 38.2 / 38.2 in)
Guideway Type	Box
Spindle Nose	A2-8 / A2-8 / A2-11 / A2-11
Chuck Size	10 / 12 / 15 / 15 in
Bar Capacity	75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in)
Max Spindle Speed	3,500 / 2,700 / 2,500 / 2,000 rpm
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	275 mm (10.8 in)
Z Axis Travel	1,250 mm (49.2 in)
B Axis Travel	1,200 mm (47.2 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BMT-65
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	25 mm (1.0 in)
Round Tool Shank	40 mm (1.6 in)
Rotary Tool Speed	4,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Machine Dimensions	L x W x H: 3.9 x 1.8 x 1.9 m (153.5 x 70.9 x 74.8 in)
Machine Weight	6,200 kg (13,668 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Rotary tools at 4,000 rpm over a 1,250 mm (49.2 in) Z travel
Second spindle with 1,200 mm (47.2 in) of B-axis travel
BMT-65 turret with 12 stations and servo mechanical drive
Turning length of 1,040 mm (40.9 in) in the A2-8 columns
480 mm (18.9 in) turning diameter at spindle 1

Limitations

No Y axis: milling is limited to the centreline
Turning diameter at SP2 is 375 mm (14.8 in)
No tailstock rows in the table
Second spindle bar capacity of 44 mm (1.7 in)

Best For

Long parts with drilled or keyed features and back-side work Shafts supported by the second spindle while milling Sleeves and tubes finished at both ends Bar-fed parts that need cross holes on both sides

Frequently Asked Questions

01 What are the main figures of the Accuway UT-300LSM?

Z travel 1,250 mm (49.2 in), B travel 1,200 mm (47.2 in), X travel 275 mm (10.8 in), turning diameter 480 mm (18.9 in) at SP1 and 375 mm (14.8 in) at SP2, rotary tools at 4,000 rpm and a weight of 6,200 kg (13,668 lb).

02 How does the UT-300LSM differ from the UT-300LS?

The UT-300LS has a BOT turret with hydraulic drive and turns 500 mm (19.7 in) at SP1. The UT-300LSM has a BMT-65 turret with servo mechanical drive and 4,000 rpm rotary tools, and turns 480 mm (18.9 in) at SP1. Both weigh 6,200 kg (13,668 lb).

03 Does the UT-300LSM have a Y axis?

No Y-axis rows appear in its table. The UT-300LSY is the long two-spindle model with ±50 mm (±2.0 in) of Y travel; it weighs 6,700 kg (14,771 lb).

04 Which spindle motor ratings apply to the UT-300LSM?

Spindle 1 has 15/18.5 kW (20.1/24.8 hp), with 18.5/22 kW (24.8/29.5 hp) shown in brackets. Spindle 2 has 5.5/7.5 kW (7.4/10.1 hp). The rotary tool motor is 3.7/5.5 kW (5.0/7.4 hp).
