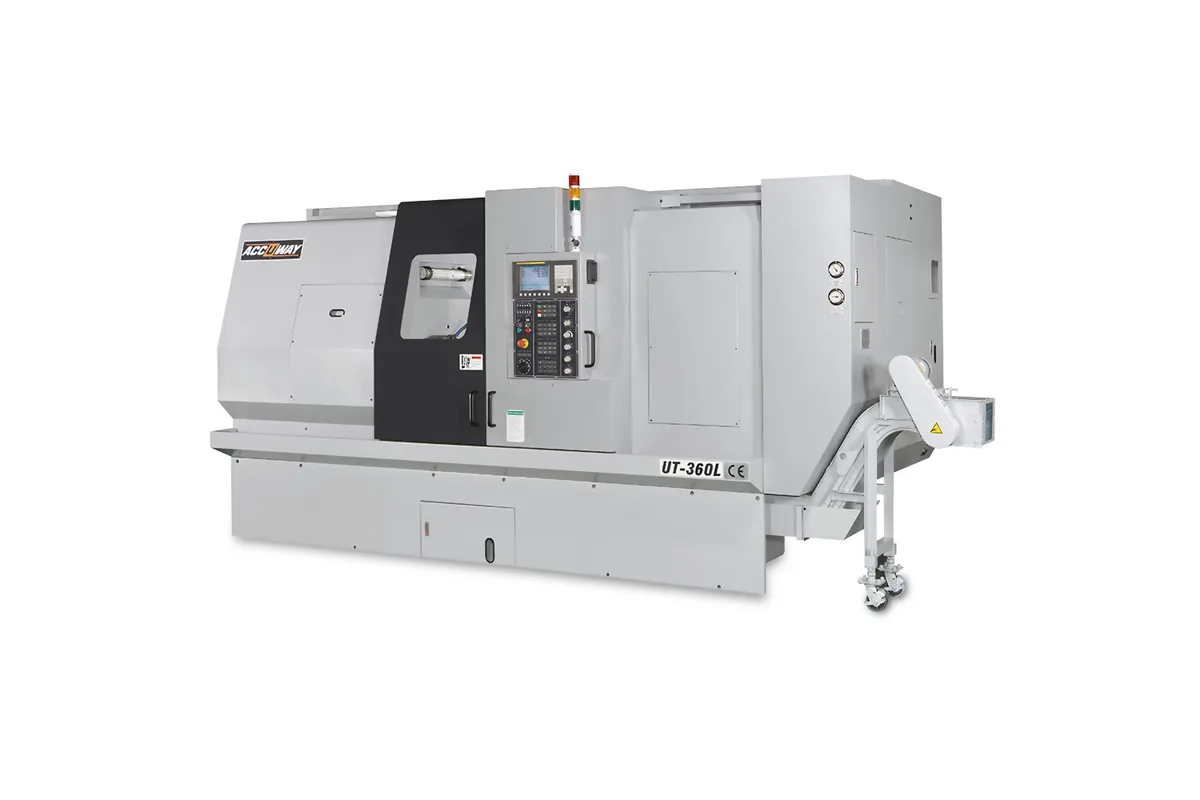

Accuway UT-360L
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-360L cost?
Price estimate
We do not have a price for the Accuway UT-360L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Heavy shafts about a metre long are the working range of the Accuway UT-360L. It pairs 1,250 mm (49.2 in) of Z travel with the UT-360 headstock: an 18.5/22 kW (24.8/29.5 hp) motor and noses from A2-8 to A2-11.
Turning length is 1,130 mm (44.5 in) in the A2-8 column and 1,050 mm (41.3 in) in the A2-11 columns. A shaft of that length is carried by a tailstock whose quill, 120 mm (4.7 in) across with an MT#6 centre, is sized for weight. The body travels 1,040 mm (40.9 in).
Compared with the UT-300L, which covers a similar length, this machine is a tonne heavier in round terms: 7,000 kg (15,432 lb) against the UT-300L's 6,000 kg (13,228 lb). It is wider at 2.3 m, takes larger tool shanks and swings 600 mm (23.6 in) over the saddle. What it gives away is speed. The fastest spindle column tops out at 2,700 rpm, and Z rapids at 20 m/min (787 in/min).
A BOT turret with 12 stations is standard. Options marked for the UT-360L include a 12-station servo turret and an APT 50 power turret with CS contouring control or CF axis control, plus a steady rest, a gear box and an A2-15 spindle headstock and 166 mm bar capacity. The UT-360LM on the same page is the factory live-tool version.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 750 mm (29.5 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter | 540 mm (21.3 in) |
| Max Turning Length | 1,130 / 1,050 / 1,050 mm (44.5 / 41.3 / 41.3 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 |
| Chuck Size | 12 / 15 / 15 in |
| Bar Capacity | 90 / 105 / 116.5 mm (3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) |
| X Axis Travel | 305 mm (12.0 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 1,040 mm (40.9 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 4.5 x 2.3 x 2.2 m (177.2 x 90.6 x 86.6 in) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,130 mm (44.5 in) turning length with an 18.5/22 kW (24.8/29.5 hp) spindle
- 7,000 kg (15,432 lb) machine on box guideways
- Tailstock quill of 120 mm (4.7 in) with MT#6 taper
- 540 mm (21.3 in) maximum turning diameter
- Steady rest and gear box on the option list
Limitations
- Highest spindle speed is 2,700 rpm
- No rotary tools unless the optional power turret is ordered
- Turning length drops to 1,050 mm (41.3 in) with A2-11
- No bar feeder or parts catcher among the listed options
Best For
Frequently Asked Questions
01
Maximum turning diameter 540 mm (21.3 in), maximum turning length 1,130 mm (44.5 in) with the A2-8 nose and 1,050 mm (41.3 in) with A2-11, swing over bed 750 mm (29.5 in), swing over saddle 600 mm (23.6 in), Z travel 1,250 mm (49.2 in).
02
The UT-360 has 750 mm (29.5 in) of Z travel, a 540 mm (21.3 in) tailstock body travel and weighs 6,200 kg (13,668 lb). The UT-360L has 1,250 mm (49.2 in), 1,040 mm (40.9 in) and 7,000 kg (15,432 lb). Headstock, turret and tool sizes are the same.
03
12 stations, with 32 mm (1.3 in) square shank tools and 50 mm (2.0 in) round shank tools. The tooling system row reads BOT and the turret driven type Hydraulic/Servo.
04
18.5/22 kW (24.8/29.5 hp) as continuous and short-time ratings. The row also shows 30/37 kW (40.2/49.6 hp) in brackets. Spindle speed is 2,700, 2,500 or 2,000 rpm by column, and a gear box is an optional accessory.
