Accuway UT-380LX

Q: How much does the Accuway UT-380LX cost?

The price estimate for the Accuway UT-380LX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-380lx#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

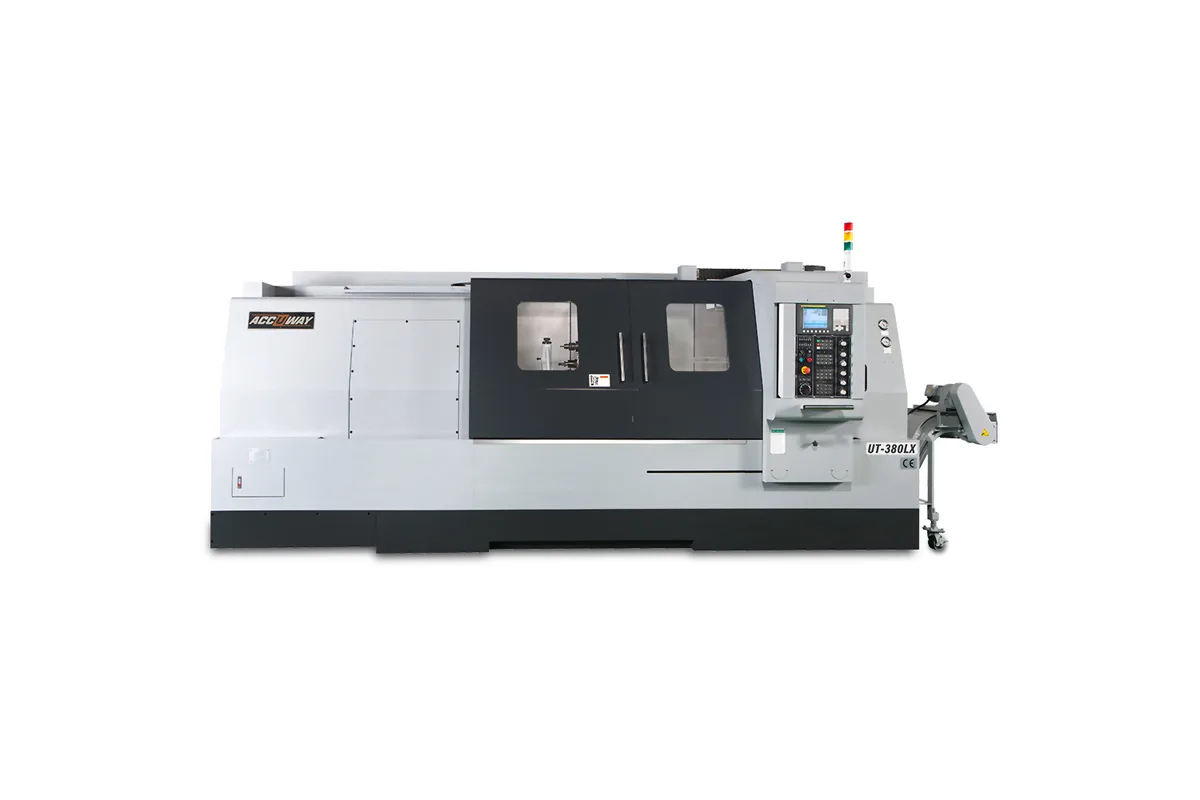

Accuway UT-380LX high performance turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

2,700 / 2,500 / 2,000 / 1,800 rpm

Spindle Power

Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) + 2-step gearbox

Max Turn Length

1,630 / 1,550 / 1,550 / 1,490 mm (64.2 / 61.0 / 61.0 / 58.7 in)

control

FANUC 0i-T

swing over bed

850 mm (33.5 in)

swing over saddle

700 mm (27.6 in)

How much does the Accuway UT-380LX cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-380LX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Weight is the surprising row on the Accuway UT-380LX page. The machine is listed at 11,200 kg (24,691 lb), although its Z travel of 1,750 mm (68.9 in) is only one step longer than the UT-380L, which weighs 7,500 kg (16,534 lb). Something more than a longer bed has been added, and the page does not say what; a buyer should ask.

The figures that can be read are these. Maximum turning diameter is 680 mm (26.8 in). Turning length is 1,630 mm (64.2 in) in the A2-8 column, 1,550 mm (61.0 in) in the A2-11 columns and 1,490 mm (58.7 in) in the A2-15 column. X travel is 370 mm (14.6 in). The stated outline, 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in), matches the lighter UT-360LX.

For work, the mass is welcome. A shaft 1.5 metres long and several hundred millimetres thick is itself heavy, and the cut forces in roughing it are high. The headstock has 18.5/22 kW (24.8/29.5 hp) through a 2-step gearbox, with 30/37 kW (40.2/49.6 hp) shown in brackets. The tailstock body travels 1,540 mm (60.6 in) and its quill is an MT#6 of 120 mm (4.7 in).

Turret and tooling are unchanged along the series: 12 BOT stations, 32 mm (1.3 in) square and 50 mm (2.0 in) round shanks. A steady rest remains an option. So do the 12-station servo turret and the APT 50 power turret.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	850 mm (33.5 in)
Swing Over Saddle	700 mm (27.6 in)
Max Turning Diameter	680 mm (26.8 in)
Max Turning Length	1,630 / 1,550 / 1,550 / 1,490 mm (64.2 / 61.0 / 61.0 / 58.7 in)
Guideway Type	Box
Spindle Nose	A2-8 / A2-11 / A2-11 / A2-15
Chuck Size	12 / 15 / 15 / 18 in
Bar Capacity	90 / 105 / 116.5 / 166.5 mm (3.5 / 4.1 / 4.6 / 6.6 in)
Max Spindle Speed	2,700 / 2,500 / 2,000 / 1,800 rpm
Spindle Motor Power	Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) + 2-step gearbox
X Axis Travel	370 mm (14.6 in)
Z Axis Travel	1,750 mm (68.9 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Turret Tooling	BOT
Turret Drive	Hydraulic/Servo
Turret Stations	12
Square Tool Shank	32 mm (1.3 in)
Round Tool Shank	50 mm (2.0 in)
Tailstock Body Travel	1,540 mm (60.6 in)
Tailstock Quill Travel	120 mm (4.7 in)
Tailstock Quill Diameter	120 mm (4.7 in)
Tailstock Quill Taper	MT#6
Machine Dimensions	L x W x H: 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in)
Machine Weight	11,200 kg (24,691 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

11,200 kg (24,691 lb) machine for 1,630 mm (64.2 in) of turning length
680 mm (26.8 in) maximum turning diameter
A2-15 spindle column with a 166.5 mm (6.6 in) bar capacity
2-step gearbox on the 18.5/22 kW (24.8/29.5 hp) spindle
Rapid traverse of 20 m/min (787 in/min) in both axes

Limitations

11,200 kg (24,691 lb) calls for a prepared foundation
Turning length is 1,490 mm (58.7 in) in the A2-15 column
Steady rest and power turret cost extra
No rotary tool rows in the table

Best For

Thick shafts up to about 1.6 metres Large rolls with journals at both ends Long pipe sections through the A2-15 spindle Heavy roughing where machine mass matters

Frequently Asked Questions

01 How much does the Accuway UT-380LX weigh?

11,200 kg (24,691 lb) net. Its dimensions are 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in). For comparison, the shorter UT-380L is listed at 7,500 kg (16,534 lb) and the longer UT-380LX2 at 12,200 kg (26,896 lb).

02 What turning length does the UT-380LX provide?

1,630 mm (64.2 in), 1,550 mm (61.0 in), 1,550 mm (61.0 in) or 1,490 mm (58.7 in), in the order of the four spindle columns from A2-8 to A2-15. Z-axis travel is 1,750 mm (68.9 in).

03 What separates the UT-380LX from the UT-360LX?

The UT-360LX turns 540 mm (21.3 in), weighs 8,000 kg (17,637 lb) and lists the gear box as an option. The UT-380LX turns 680 mm (26.8 in), weighs 11,200 kg (24,691 lb), includes the gear box as standard and adds an A2-15 column with an 18 in chuck.

04 Does the UT-380LX include a tailstock and steady rest?

The tailstock is in the specification table: body travel 1,540 mm (60.6 in), quill travel 120 mm (4.7 in), quill diameter 120 mm (4.7 in), MT#6. The steady rest is an optional accessory.
