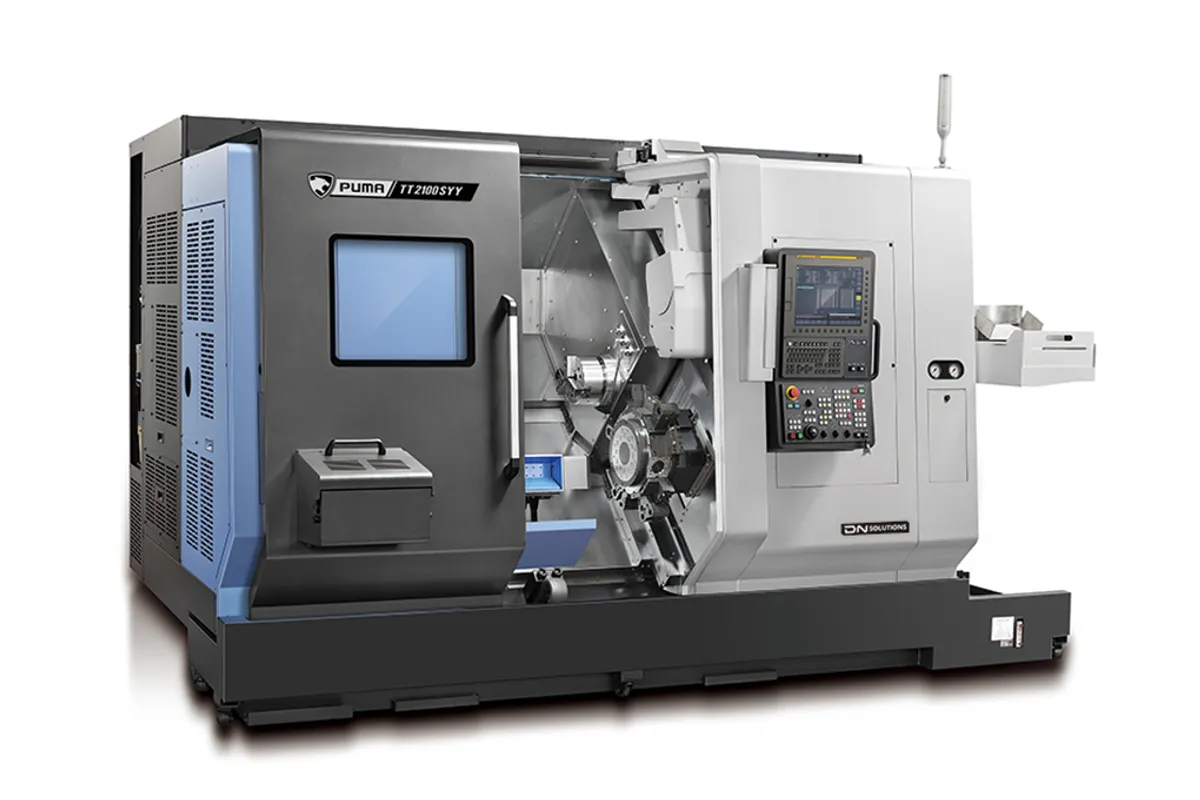

DN Solutions PUMA TT 2100 SYY
Image: dn-solutions.com, DN Solutions
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Power
Max Turn Length
How much does the DN Solutions PUMA TT 2100 SYY cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.
Overview
With a Y-axis on both its upper and its lower turret, the DN Solutions PUMA TT 2100 SYY is the twin-spindle, twin-turret lathe in this series for parts that need milling on both ends. DN Solutions names it, together with the PUMA TT1300, as a model whose two turrets each have Y. The table gives 100 mm (4 in) of Y travel, 165 mm of X and 700 mm (28 in) of Z, with a turning envelope of 230 mm (9 in) in diameter and 230 mm (9 in) in length behind an 8-inch chuck.
The left and right spindles are equals, 5,000 rpm and 25 kW (34 hp) each, and the main spindle is listed at 223 N·m (164 ft-lb). Since spindles and turrets work independently, a keyway can be milled off-centre at the main spindle while the other turret drills a bolt pattern at the sub-spindle. With Y on one turret only, one of those jobs would wait for the other. Driven tools run to 5,000 rpm and the table lists 12 turret stations.
Axis rapids are 30 m/min (1,181 ipm) in X and 40 m/min (1,575 ipm) in Z. That X figure is the clearest gain over the PUMA TT 1800 SY, which shares the chuck and envelope but moves X at 20 m/min (787 ipm). The PUMA TT 1800 SY also has less at the spindle, 22 kW (29 hp) and 208 N·m (153 ft-lb), though its driven tools turn faster at 6,000 rpm. For larger chucking, the PUMA TT 2100 SYYB fits a 10-inch chuck and a 3,500 rpm main spindle with 245 N·m (181 ft-lb).
This is a heavy machine for a 230 mm part: 9,500 kg (20,944 lb), on a plan of 3,880 × 2,360 mm (153 × 93 in) and 2,250 mm (89 in) tall. DN lists roller LM guideways for the series, and a separate parts catcher and unloader on each spindle so finished parts can be taken from either side.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 8 in |
| Max Turning Diameter | 230 mm (9 in) |
| Max Turning Length | 230 mm (9 in) |
| Rapid Traverse X | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 40 m/min (1,575 ipm) |
| X-Axis Travel | 165 mm |
| Y-Axis Travel | 100 mm (4 in) |
| Z-Axis Travel | 700 mm (28 in) |
| Max Spindle Speed | 5,000 rpm |
| Spindle Motor Power | 25 kW (34 hp) |
| Spindle Torque | 223 N·m (164 ft-lb) |
| Sub Spindle Speed | 5,000 rpm |
| Sub Spindle Power | 25 kW (34 hp) |
| Turret Stations | 12 |
| Live Tool Speed | 5,000 rpm |
| Floor Space Required | 3,880 × 2,360 × 2,250 mm (153 × 93 × 89 in) |
| Machine Weight | 9,500 kg (20,944 lb) |
Specifications sourced from dn-solutions.com — verified 2026-10-02
Strengths & Limitations
Strengths
- DN Solutions names the PUMA TT 2100 SYY as having a Y-axis on both upper and lower turrets, with 100 mm (4 in) of Y travel listed
- Matched spindles: 5,000 rpm and 25 kW (34 hp) on both the main and the sub-spindle
- 30 m/min (1,181 ipm) X rapid, against 20 m/min (787 ipm) on the PUMA TT 1800 SY
- 223 N·m (164 ft-lb) of spindle torque, more than the 208 N·m (153 ft-lb) of the PUMA TT 1800 SY
- Each spindle has its own parts catcher and unloader in DN's series description
Limitations
- Driven tools are limited to 5,000 rpm; the PUMA TT 1800 SY reaches 6,000 rpm
- Turning envelope is 230 mm (9 in) in diameter and length, small for a machine weighing 9,500 kg (20,944 lb)
- Torque is listed for the main spindle only, and no bar capacity is given for this model beyond the series range of 42 mm to 81 mm
- X travel of 165 mm and Y travel of 100 mm (4 in) limit how far off-centre a milled feature can sit
Best For
Frequently Asked Questions
01
Both. DN Solutions' series description lists upper and lower turrets with Y axis for the PUMA TT1300 and 2100SYY. The table gives a Y travel of 100 mm (4 in). In practice that means off-centre milling, drilling and tapping can be done from either turret, at either spindle, without routing the job to one particular side of the machine.
02
The main spindle is listed at 5,000 rpm, 25 kW (34 hp) and 223 N·m (164 ft-lb). The sub-spindle is listed at 5,000 rpm and 25 kW (34 hp); the table does not give its torque. Driven tools on the turrets run up to 5,000 rpm.
03
In X, yes: 30 m/min (1,181 ipm) against 20 m/min (787 ipm) on the PUMA TT 1800 SY. Z rapid is 40 m/min (1,575 ipm) on both the PUMA TT 2100 SYY and the PUMA TT 1800 SY. Driven tools go the other way, 5,000 rpm here and 6,000 rpm on the PUMA TT 1800 SY.
04
The PUMA TT 2100 SYYB has a 10-inch chuck in place of the 8-inch one, and its main spindle is listed at 3,500 rpm, 22 kW (29 hp) and 245 N·m (181 ft-lb). Turning diameter and length stay at 230 mm (9 in) on both models, and the PUMA TT 2100 SYYB weighs 9,600 kg (21,164 lb) against 9,500 kg (20,944 lb) here.
05
It is 3,880 mm long, 2,360 mm wide and 2,250 mm high (153 × 93 × 89 in) and weighs 9,500 kg (20,944 lb). Check the floor loading and the route into the building for that weight, and allow extra length for whatever feeds bar in and takes parts out.
