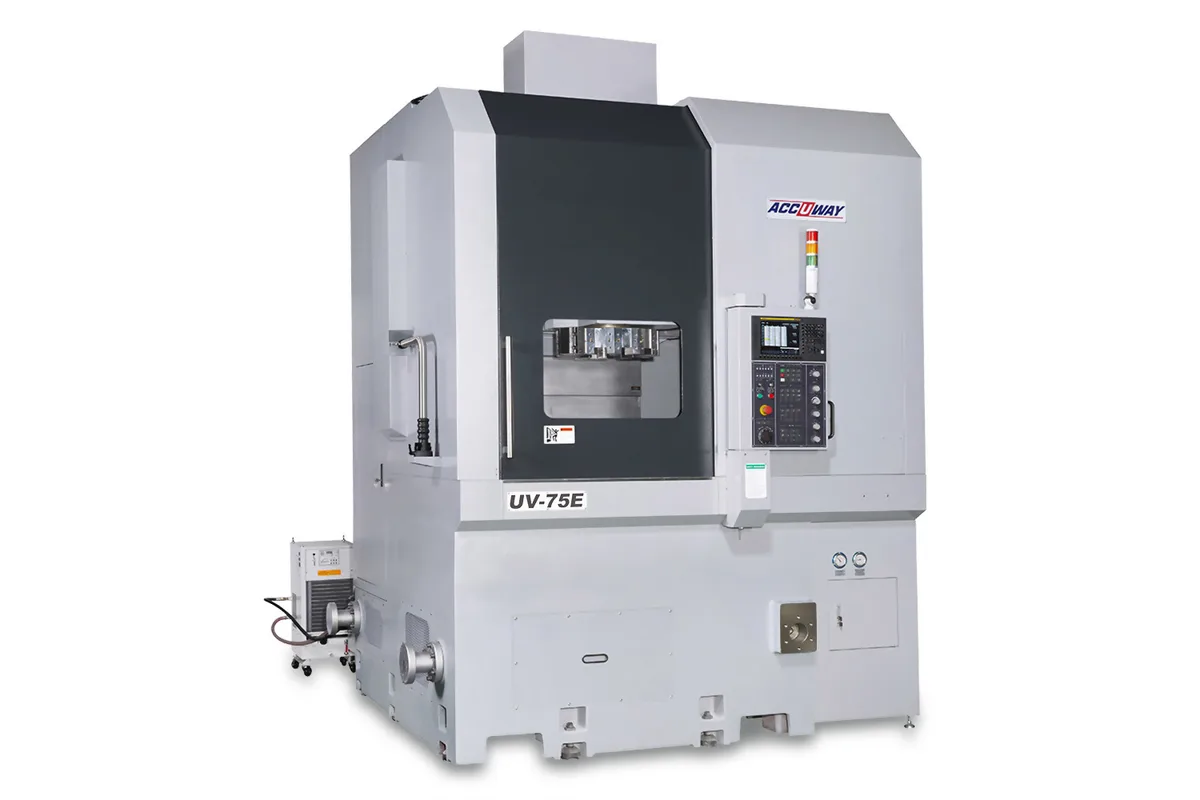

Accuway UV-75E
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
max turning diameter
How much does the Accuway UV-75E cost?
Price estimate
We do not have a price for the Accuway UV-75E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UV-75E turns parts up to 750 mm (29.5 in) in diameter and 700 mm (27.6 in) tall on a 24 in chuck. It weighs 15,000 kg (33,069 lb), nearly three times the UV-55E, and that mass is the main thing a buyer gets for stepping up: a vertical lathe heavy enough for large castings and forgings.
The spindle has an A2-11 nose with belt drive and an 18.5/22 kW (24.8/29.5 hp) motor. The speed row reads 1,600 (630) rpm and the chuck row 24 (32) in. Accuway does not explain the brackets, but the options list includes an upgrade to a 32" (or 40") non-through hole 3-jaw hydraulic chuck and cylinder, and a gearbox. A larger chuck must turn slower, so read the bracketed 630 rpm together with the bracketed chuck and confirm both.
The guideway row says Linear (Box way). X travel is 420 mm (16.5 in) at 20 m/min (787 in/min), and Z is 800 mm (31.5 in) at 7 m/min (276 in/min).
The turret is a 12-station BOT type with hydraulic drive for 32 mm (1.3 in) square and 50 mm (2.0 in) round shanks; a 12 station servo turret is optional. There are no rotary tool rows, so this is a turning machine only. Height is the installation figure to watch: 4.2 m, on a 2.6 x 3.7 m footprint. A chip conveyor with chip cart and a hydraulic power supply unit are standard.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 850 mm (33.5 in) |
| Max Turning Diameter | 750 mm (29.5 in) |
| Max Turning Length | 700 mm (27.6 in) |
| Guideway Type | Linear (Box way) |
| Spindle Nose | A2-11 |
| Chuck Size | 24 (32) in |
| Max Spindle Speed | 1,600 (630) rpm |
| Spindle Drive | Belt |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 420 mm (16.5 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Machine Dimensions | L x W x H: 2.6 x 3.7 x 4.2 m (102.4 x 145.7 x 165.4 in) |
| Machine Weight | 15,000 kg (33,069 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 750 mm (29.5 in) turning diameter and 700 mm (27.6 in) turning length
- 15,000 kg (33,069 lb) machine with an A2-11 spindle and 18.5/22 kW (24.8/29.5 hp)
- 800 mm (31.5 in) of Z travel
- 32 mm (1.3 in) square and 50 mm (2.0 in) round tool shanks
- Chuck upgrades to 32" and 40" are listed as options
Limitations
- Machine height of 4.2 m needs a tall bay
- Hydraulic BOT turret with no rotary tools
- Z rapid traverse of 7 m/min (276 in/min)
- The bracketed 630 rpm and 32 in chuck figures are not explained on the page
Best For
Frequently Asked Questions
01
Up to 750 mm (29.5 in) in diameter and 700 mm (27.6 in) in length, with an 850 mm (33.5 in) swing over bed. The chuck diameter row reads 24 (32) in and the spindle nose is A2-11.
02
The table prints 1,600 (630) rpm with a belt drive and an 18.5/22 kW (24.8/29.5 hp) motor. The meaning of the bracketed 630 rpm is not stated; a gearbox and larger chucks are on the options list, so confirm the speed range for the configuration you order.
03
The UV-100E turns 1,000 mm (39.4 in), has an A2-15 nose, a 2-step gearbox + Belt drive, 1,200 rpm and a 30/37 kW (40.2/49.6 hp) motor, and weighs 16,000 kg (35,273 lb). Turning length and Z travel are the same as on the UV-75E.
04
A 12-station turret with BOT tooling and hydraulic drive. Square shanks are 32 mm (1.3 in) and round shanks 50 mm (2.0 in). A 12 station servo turret is an option; the UV-75EC is the model listed with a BMT servo mechanical turret.
