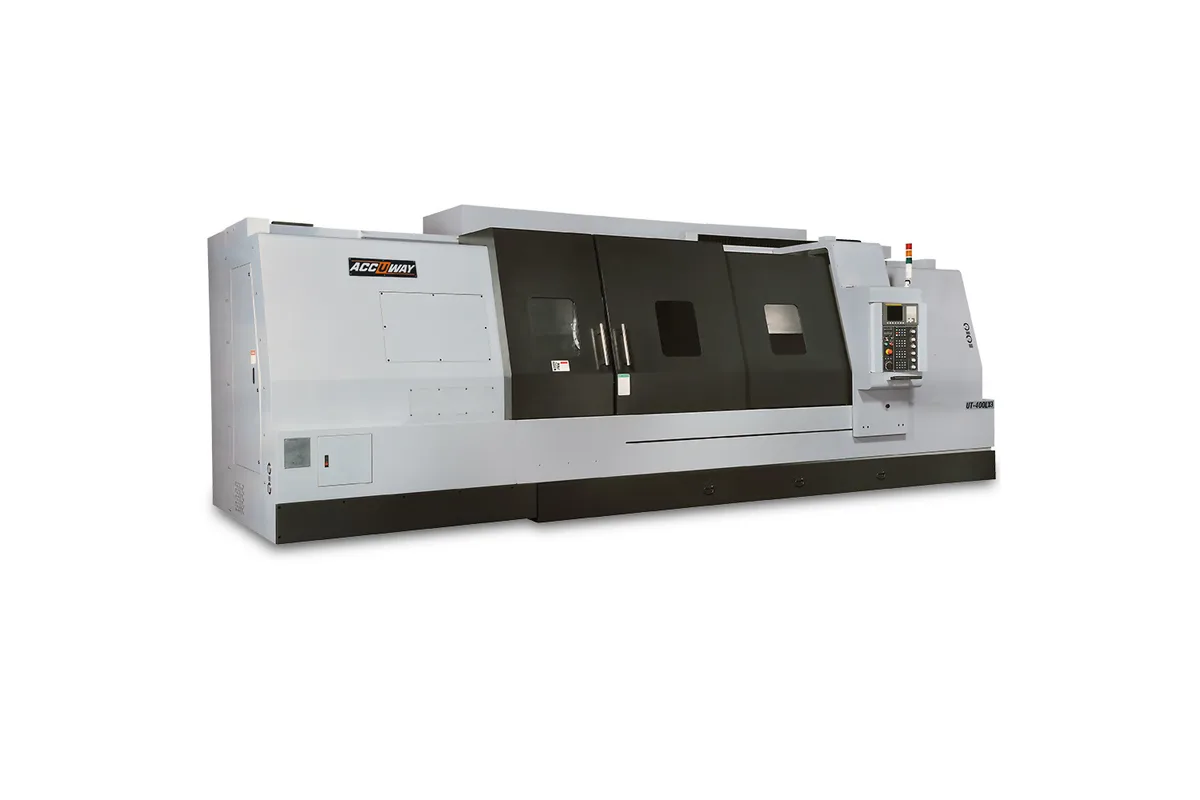

Accuway UT-400LX3
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-400LX3 cost?
Price estimate
We do not have a price for the Accuway UT-400LX3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Three metres of heavy turning: the Accuway UT-400LX3 has a Z travel of 3,100 mm (122.0 in) and turns 2,980 mm (117.3 in) between the chuck and the tailstock at up to 700 mm (27.6 in) in diameter.
How does it differ from the three-metre machines in Accuway's lighter series? The UT-380LX3 has an 18.5/22 kW (24.8/29.5 hp) motor and a largest bore of 166.5 mm (6.6 in). The UT-400LX3 has 30/37 kW (40.2/49.6 hp) and bores up to 258 mm (10.2 in), with a tailstock quill of 160 mm (6.3 in). Turning diameters are close, so the choice between them is about bore, power and the weight of the workpiece, not about swing.
The UT-400LX3 is 7.9 x 2.8 x 2.7 m (311.0 x 110.2 x 106.3 in) and is listed at 17,000 kg (37,478 lb). Z rapid traverse is 10 m/min (394 in/min); X travels 380 mm (15.0 in) at 20 m/min (787 in/min).
Speeds are low by design. The quickest column, A2-11 with a 15 in chuck, reaches 2,000 rpm. The three A2-15 columns run 1,500 rpm, 850 rpm and 800 rpm, the last with a 24 in chuck. At these diameters surface speed is reached early, and the 2-step gearbox, a standard accessory, is there for torque. A steady rest is optional and, on a part this long, usually needed.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 900 mm (35.4 in) |
| Swing Over Saddle | 745 mm (29.3 in) |
| Max Turning Diameter | 700 mm (27.6 in) |
| Max Turning Length | 2,980 mm (117.3 in) |
| Guideway Type | Box |
| Spindle Nose | A2-11 / A2-15 / A2-15 / A2-15 |
| Chuck Size | 15 / 20 / 20 / 24 in |
| Spindle Bore | 131 / 205 / 235 / 258 mm (5.2 / 8.1 / 9.3 / 10.2 in) |
| Max Spindle Speed | 2,000 / 1,500 / 850 / 800 rpm |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox |
| X Axis Travel | 380 mm (15.0 in) |
| Z Axis Travel | 3,100 mm (122.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 10 m/min (394 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 2,950 mm (116.1 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 160 mm (6.3 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 7.9 x 2.8 x 2.7 m (311.0 x 110.2 x 106.3 in) |
| Machine Weight | 17,000 kg (37,478 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,980 mm (117.3 in) turning length with a 30/37 kW (40.2/49.6 hp) spindle
- Spindle bores of 205 mm (8.1 in), 235 mm (9.3 in) and 258 mm (10.2 in) on A2-15
- Tailstock body travel of 2,950 mm (116.1 in), 160 mm (6.3 in) quill
- Gear box with 2 steps as standard
- 900 mm (35.4 in) swing over bed
Limitations
- Z rapid traverse of 10 m/min (394 in/min)
- Maximum speed of 800 rpm with the largest bore
- Needs a 7.9 m long, 2.8 m wide space
- Steady rest and APT 60 power turret are optional
Best For
Frequently Asked Questions
01
2,980 mm (117.3 in), on a Z-axis travel of 3,100 mm (122.0 in). Maximum turning diameter is 700 mm (27.6 in), and the tailstock body travels 2,950 mm (116.1 in).
02
The UT-400LX4 has 4,100 mm (161.4 in) of Z travel, a 3,980 mm (156.7 in) turning length, a Z rapid of 6 m/min (236 in/min) and weighs 19,000 kg (41,887 lb). The UT-400LX3 has 3,100 mm (122.0 in), 2,980 mm (117.3 in), 10 m/min (394 in/min) and 17,000 kg (37,478 lb).
03
A 12-station turret with BOT tooling and servo mechanical drive, taking 32 mm (1.3 in) square shank and 50 mm (2.0 in) round shank tools. An APT 60 power turret with CS contouring control or CF Axis Control is optional.
04
Yes. The UT-400LX3Y has the same 3,100 mm (122.0 in) Z travel with a Y axis of ±75 mm (±3.0 in), a BMT-85 turret, rotary tools at 4,000 rpm and a weight of 19,000 kg (41,887 lb).
