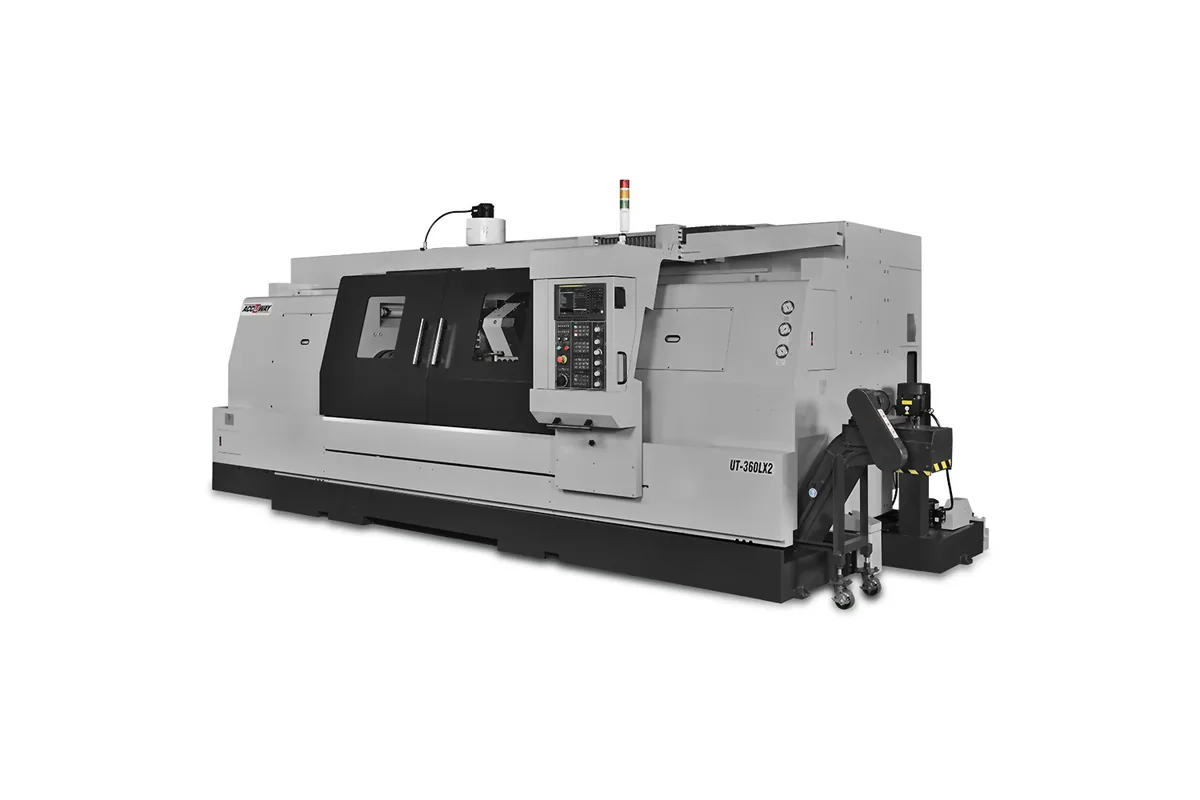

Accuway UT-360LX2
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-360LX2 cost?
Price estimate
We do not have a price for the Accuway UT-360LX2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Nine and a half tonnes of lathe for two-metre work: the Accuway UT-360LX2 weighs 9,500 kg (20,944 lb) and has 2,250 mm (88.6 in) of Z travel. Maximum turning length is 2,130 mm (83.9 in) with the A2-8 nose and 2,050 mm (80.7 in) with the A2-11 noses, at a turning diameter of 540 mm (21.3 in).
So what does it do that the UT-300LX2 cannot? Both have the same Z travel and the same 5.5 x 2.3 x 2.2 m (216.5 x 90.6 x 86.6 in) outline. The UT-360LX2 has the stronger motor, 18.5/22 kW (24.8/29.5 hp), the larger saddle swing of 600 mm (23.6 in) and the heavier MT#6 tailstock. It is the choice when the two-metre part is also thick.
Z rapid traverse is 15 m/min (591 in/min) and X is 20 m/min (787 in/min). The tailstock body can travel 2,040 mm (80.3 in).
Long, heavy shafts sag and chatter, which is why three of the options deserve a look at quotation time: the steady rest, the gear box for torque at low speed, and the linear scale. A 12-station servo turret can replace the standard BOT turret, and an APT 50 power turret with CS contouring control or CF axis control adds driven tools. Spindle bores in the table run from 90 mm (3.5 in) to 116.5 mm (4.6 in), with an A2-15 spindle headstock and 166 mm bar capacity as an option.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 750 mm (29.5 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter | 540 mm (21.3 in) |
| Max Turning Length | 2,130 / 2,050 / 2,050 mm (83.9 / 80.7 / 80.7 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 |
| Chuck Size | 12 / 15 / 15 in |
| Bar Capacity | 90 / 105 / 116.5 mm (3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) |
| X Axis Travel | 305 mm (12.0 in) |
| Z Axis Travel | 2,250 mm (88.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 2,040 mm (80.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 5.5 x 2.3 x 2.2 m (216.5 x 90.6 x 86.6 in) |
| Machine Weight | 9,500 kg (20,944 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,130 mm (83.9 in) turning length at 540 mm (21.3 in) diameter
- 9,500 kg (20,944 lb) of mass under the cut
- 18.5/22 kW (24.8/29.5 hp) spindle with an optional gear box
- Tailstock body travel of 2,040 mm (80.3 in), 120 mm (4.7 in) quill
- Optional steady rest and linear scale
Limitations
- Z rapid traverse of 15 m/min (591 in/min)
- Spindle speeds of 2,700 rpm and below
- Driven tools require the optional power turret
- Steady rest and gear box are not standard
Best For
Frequently Asked Questions
01
X-axis travel is 305 mm (12.0 in) and Z-axis travel 2,250 mm (88.6 in). X rapid traverse is 20 m/min (787 in/min) and Z rapid traverse 15 m/min (591 in/min). Tailstock body travel is 2,040 mm (80.3 in).
02
The UT-300LX2 weighs 9,000 kg (19,841 lb), turns 500 mm (19.7 in) and has a 15/18.5 kW (20.1/24.8 hp) spindle. The UT-360LX2 weighs 9,500 kg (20,944 lb), turns 540 mm (21.3 in) and has 18.5/22 kW (24.8/29.5 hp). Z travel is 2,250 mm (88.6 in) on both.
03
A 12 in chuck on an A2-8 nose with a 90 mm (3.5 in) bar capacity at 2,700 rpm, or a 15 in chuck on an A2-11 nose with 105 mm (4.1 in) at 2,500 rpm or 116.5 mm (4.6 in) at 2,000 rpm.
04
FANUC 0i-T controller, RJ-45 interface, rigid tapping, heat exchanger for the electric cabinet, 10.4" Colored LCD monitor, lubrication system, 4-bar coolant system and three-color warning light are the standard accessories. The table lists a 12-station BOT turret and a tailstock.
