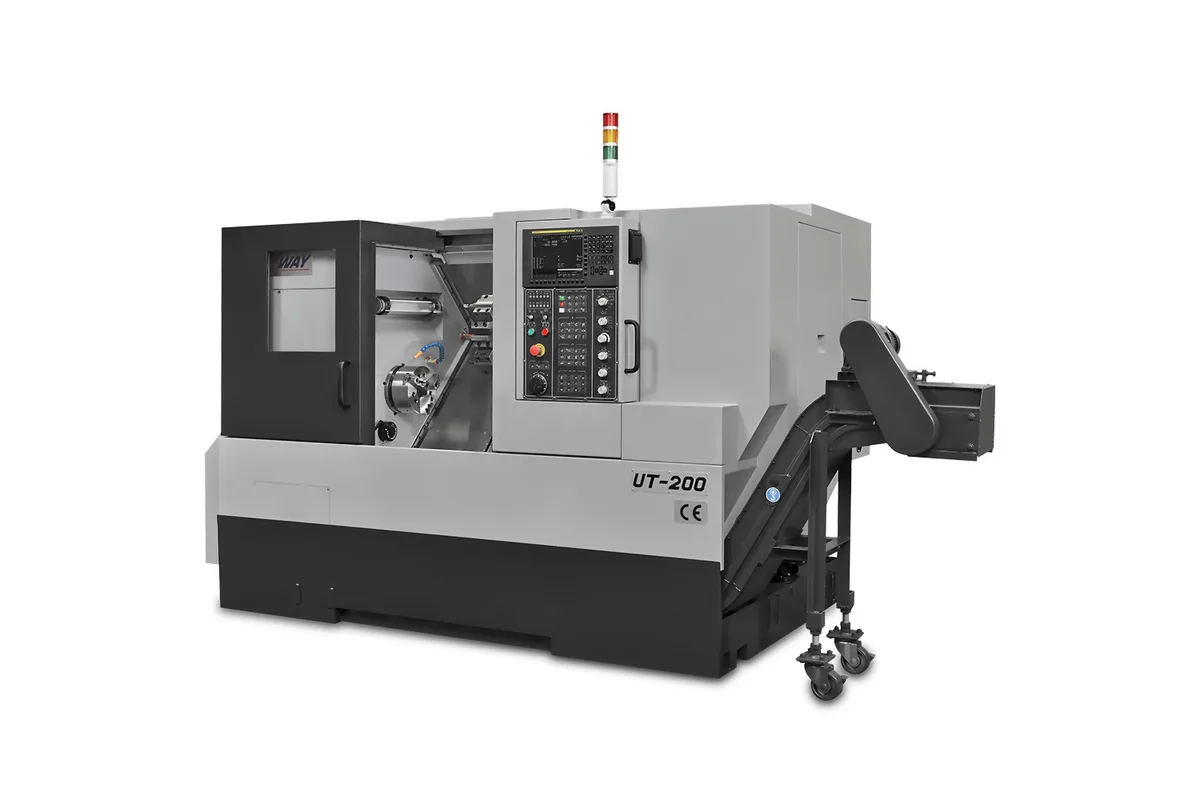

Accuway UT-200M
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-200M cost?
Price estimate
We do not have a price for the Accuway UT-200M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Rotary tools at 6,000 rpm on a 12-station servo turret turn the basic UT-200 into the Accuway UT-200M. The tooling system is listed as BMT/VDI, the turret drive as Servo mechanical, and the rotary tool motor as 3.7/5.5 kW (5.0/7.4 hp). There is no Y axis, so milling is done on centre with X, Z and the spindle.
The driven turret costs some envelope. Maximum turning diameter is 260 mm (10.2 in), against 300 mm (11.8 in) on the UT-200, and maximum turning length is 450 mm (17.7 in), or 370 mm (14.6 in) with the largest spindle. Travels are unchanged at 220 mm (8.7 in) in X and 600 mm (23.6 in) in Z.
Spindle choice is the same four-column list as on the turning-only model. From small to large: A2-5, 6 in chuck, 44 mm (1.7 in) bar, 6,000 rpm; A2-6, 8 in, 52 mm (2.0 in), 4,500 rpm; A2-6, 8 in, 65 mm (2.6 in), 4,000 rpm; A2-8, 10 in, 75 mm (3.0 in), 3,500 rpm. Power is 11/15 kW (14.8/20.1 hp), with 15/18.5 kW (20.1/24.8 hp) in brackets.
Unlike the UT-200, where station count varies with the spindle, every column here has 12 stations with 20 mm (0.8 in) square and 32 mm (1.3 in) round shanks. The rotary tool holders themselves, 0 degree and 90 degree, are on the optional accessories list, so budget for them. Weight is 3,600 kg (7,937 lb), and the tailstock has an MT#4 quill.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 505 mm (19.9 in) |
| Swing Over Saddle | 318 mm (12.5 in) |
| Max Turning Diameter | 260 mm (10.2 in) |
| Max Turning Length | 450 / 450 / 450 / 370 mm (17.7 / 17.7 / 17.7 / 14.6 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 / A2-6 / A2-6 / A2-8 |
| Chuck Size | 6 / 8 / 8 / 10 in |
| Bar Capacity | 44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 / 3,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| X Axis Travel | 220 mm (8.7 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 545 mm (21.5 in) |
| Tailstock Quill Travel | 80 mm (3.1 in) |
| Tailstock Quill Diameter | 75 mm (3.0 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 2.9 x 1.6 x 1.9 m (114.2 x 63.0 x 74.8 in) |
| Machine Weight | 3,600 kg (7,937 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary tools at 6,000 rpm with a 3.7/5.5 kW (5.0/7.4 hp) drive
- 12-station servo mechanical turret with BMT/VDI tooling in every spindle configuration
- Same four spindle choices as the UT-200, up to 75 mm (3.0 in) bar capacity
- Tailstock with 545 mm (21.5 in) of body travel
- No heavier than the turning-only model at 3,600 kg (7,937 lb)
Limitations
- No Y axis; off-centre milling needs the UT-200Y
- Maximum turning diameter drops to 260 mm (10.2 in)
- Turning length of 450 mm (17.7 in) is shorter than the UT-200's 550 mm (21.7 in)
- 0 degree and 90 degree rotary tool holders are optional accessories
Best For
Frequently Asked Questions
01
Rotary tools. The table lists a maximum rotary tool speed of 6,000 rpm and rotary tool power of 3.7/5.5 kW (5.0/7.4 hp), on a 12-station turret with BMT/VDI tooling and servo mechanical drive. The UT-200 has a BOT turret and no rotary tool rows.
02
No. The Y-axis rows of the table are blank for this model. Accuway lists the UT-200Y for that, with ±50 mm (±2.0 in) of Y travel on a wider bed and a 4,500 kg (9,921 lb) net weight.
03
Maximum turning diameter is 260 mm (10.2 in). Maximum turning length is 450 mm (17.7 in), or 370 mm (14.6 in) in the A2-8 spindle column. Swing over bed is 505 mm (19.9 in) and swing over saddle 318 mm (12.5 in).
04
The control is a FANUC 0i-T with a 10.4" colored LCD monitor and rigid tapping as standard. Options include a bar feeder and bar feeder interface, a parts catcher and parts conveyor, a loader interface, a gantry loader system and an auto door.
