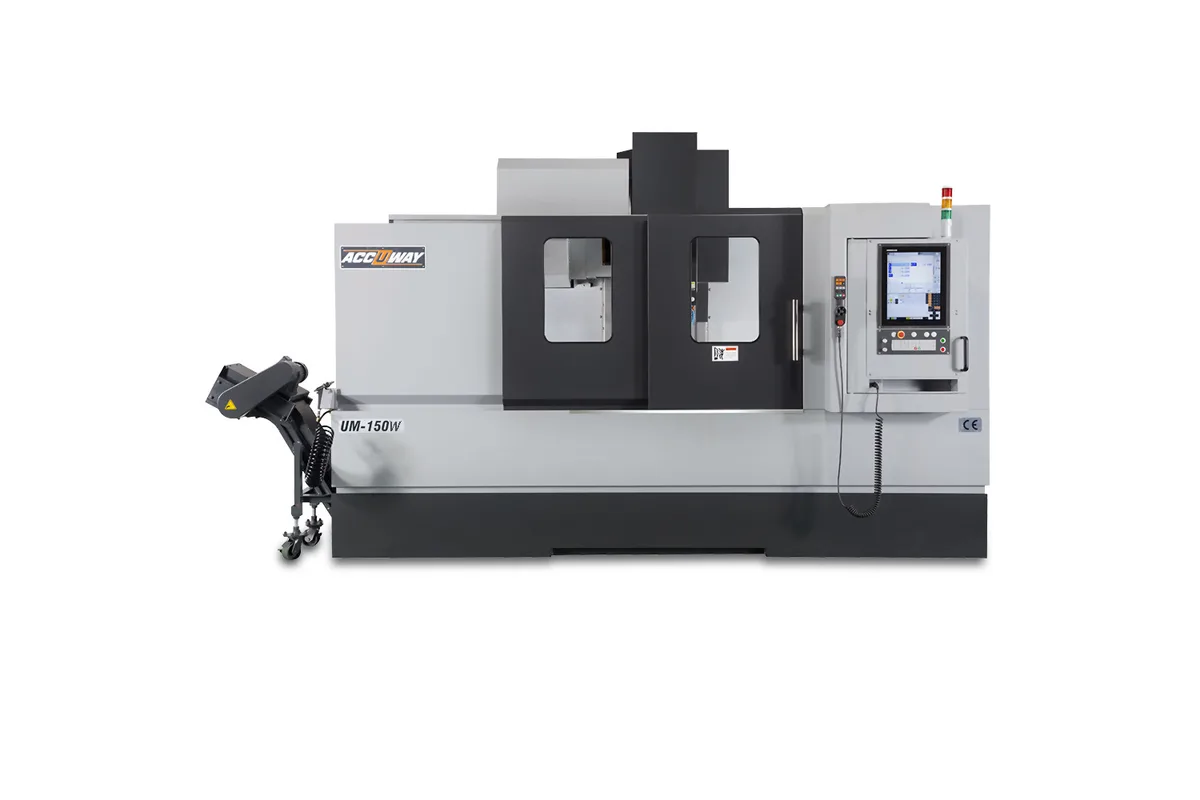

Accuway UM-150W
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-150W cost?
Price estimate
We do not have a price for the Accuway UM-150W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Ten tonnes of machine, a 1,600 x 770 mm (63.0 x 30.3 in) table and a 50-taper spindle: the Accuway UM-150W is the largest BT-50 model that still uses roller guideways and a belt drive. Travels are 1,500 mm (59.1 in) in X, 750 mm (29.5 in) in Y and 550 mm (21.7 in) in Z.
It sits at a fork in the range. Below it, the UM-120W and UM-130W share a 650 mm (25.6 in) Y. Above it, the UM-160 switches to box ways, a 2-step gearbox and 15 m/min (591 in/min) rapids. The UM-150W keeps 30 m/min (1,181 in/min), so it is the biggest table in the group that still moves quickly between features.
Table load is 1,500 kg (3,307 lb) and there are 7 T-slots, 18 mm wide on a 100 mm pitch. Under the spindle there is 150~700 mm (5.9~27.6 in). The head is the 6,000 rpm BT50 unit with 15/18.5 kW (20.1/24.8 hp) and a 90 mm (3.5 in) bearing, and the changer accepts 15 kg (33 lb) tools.
What separates it from the BT40 UM-150 is tooling and weight, not envelope. The UM-150 shares the travels and table but weighs 9,500 kg (20,944 lb) and limits tools to 7 kg (15 lb). Net weight here is 10,000 kg (22,046 lb), on a footprint of 3.7 x 2.9 m.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 6,000 rpm |
| Spindle Taper | BT50 |
| Spindle Bearing Inner Diameter | 90 mm (3.5 in) |
| Spindle Drive | Belt |
| X Axis Travel | 1,500 mm (59.1 in) |
| Y Axis Travel | 750 mm (29.5 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 150~700 mm (5.9~27.6 in) |
| Table Size | 1,600 x 770 mm (63.0 x 30.3 in) |
| T-Slots | No. of T-slot x width x pitch: 7 x 18 x 100 mm |
| Max Table Load | 1,500 kg (3,307 lb) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (32) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Diameter (full magazine) | 105 mm (4.1 in) |
| Max Tool Diameter Without Adjacent Tools | 210 mm (8.3 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3.7 x 2.9 x 3.0 m (145.7 x 114.2 x 118.1 in) |
| Machine Weight | 10,000 kg (22,046 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,500 x 750 mm of X and Y travel with a BT50 spindle
- Keeps 30 m/min (1,181 in/min) rapids and roller guideways at this size
- 1,600 x 770 mm (63.0 x 30.3 in) table with 7 T-slots and a 1,500 kg (3,307 lb) load
- Tool diameter up to 210 mm (8.3 in) without adjacent tools, weight up to 15 kg (33 lb)
Limitations
- Only 550 mm (21.7 in) of Z travel
- Belt drive at 6,000 rpm; the gearbox is an option here and standard on the UM-160
- Table load matches the smaller UM-130W at 1,500 kg
- 10,000 kg (22,046 lb) net weight needs a suitable floor
Best For
Frequently Asked Questions
01
Travels are 1,500 mm (59.1 in), 750 mm (29.5 in) and 550 mm (21.7 in) in X, Y and Z. The table is 1,600 x 770 mm (63.0 x 30.3 in). The machine measures 3.7 x 2.9 x 3.0 m (145.7 x 114.2 x 118.1 in) and weighs 10,000 kg (22,046 lb).
02
The UM-160 has 1,600 mm (63.0 in) of X, 850 mm (33.5 in) of Y and Z, a 2,000 kg (4,409 lb) table load, box ways and a 2-step gearbox, at 15 m/min (591 in/min) rapids and 15,000 kg (33,069 lb). The UM-150W is lighter and twice as fast in rapid, with less Z and a belt drive.
03
15/18.5 kW (20.1/24.8 hp) on continuous and 30 min ratings at up to 6,000 rpm, through a belt drive to a BT50 spindle with a 90 mm (3.5 in) bearing inner diameter. Spindle speed upgrading and a 2-step gear box are optional accessories.
04
The tool magazine capacity row reads 24 (32). Tools are exchanged by an arm and can be 300 mm (11.8 in) long, 105 mm (4.1 in) in diameter with adjacent tools, 210 mm (8.3 in) without, and 15 kg (33 lb).
