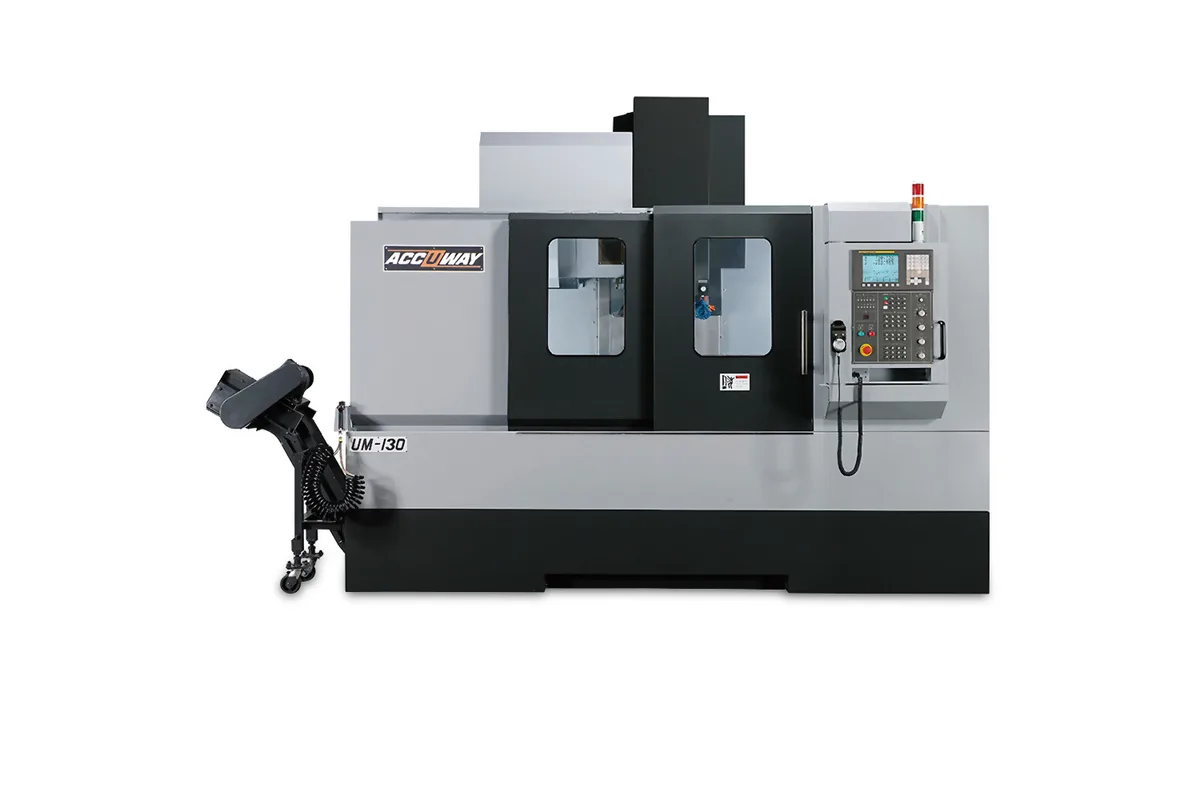

Accuway UM-130
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-130 cost?
Price estimate
We do not have a price for the Accuway UM-130 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UM-130 is where the BT40 line stops bracketing its bigger motor and makes it the listed one. Spindle power is 15/18.5 kW (20.1/24.8 hp), continuous and 30 min, the axis feed motors are 4/4/7 kW, and the guideway bearings are Roller. Travels are 1,300 mm (51.2 in) in X, 650 mm (25.6 in) in Y and 550 mm (21.7 in) in Z.
Put beside the UM-120, the differences are consistent. The UM-120 lists 7.5/11 kW (10.1/14.8 hp) and ball guideways. The UM-130 has the longer X, a 1,500 x 650 mm (59.1 x 25.6 in) table and a 1,500 kg (3,307 lb) load, and weighs 8,000 kg (17,637 lb). Its Z is the shorter of the two.
The table is longer than the X stroke. Parts longer than 1,300 mm can sit on it, but the ends are out of reach without repositioning.
Speed is 10,000 rpm, with 12,000 rpm in brackets and a Belt (Direct) drive row. At 18.5 kW on the 30 min rating, a BT40 spindle is close to what the taper is normally asked to carry, and the 7 kg (15 lb) tool weight limit still applies. Rapids are 30 m/min (1,181 in/min) on all axes with 45/45/45 mm (1.8/1.8/1.8 in) ball screws. The magazine row reads 24 (30/32), and the control is a FANUC 0i-M with AICC II.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 10,000 (12,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Belt (Direct) |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 150~700 mm (5.9~27.6 in) |
| Table Size | 1,500 x 650 mm (59.1 x 25.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 100 mm |
| Max Table Load | 1,500 kg (3,307 lb) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (30/32) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I (AICC II) |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3.3 x 2.7 x 3 m (129.9 x 106.3 x 118.1 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 15/18.5 kW (20.1/24.8 hp) spindle motor as the listed rating, not a bracketed one
- Roller guideway bearings and 4/4/7 kW feed motors
- 1,500 x 650 mm (59.1 x 25.6 in) table carrying 1,500 kg (3,307 lb)
- 1,300 mm (51.2 in) of X travel at 30 m/min (1,181 in/min)
Limitations
- Z travel is 550 mm (21.7 in), shorter than the UM-120's 600 mm (23.6 in)
- The 1,500 mm table is longer than the 1,300 mm X stroke, so its ends cannot be machined in one setup
- Tool weight limit of 7 kg (15 lb) with an 18.5 kW motor
- Chip conveyor and through-spindle coolant are optional accessories
Best For
Frequently Asked Questions
01
15/18.5 kW (20.1/24.8 hp), continuous and 30 min ratings. Speed is listed at 10,000 rpm with 12,000 rpm in brackets, the taper is BT40 and the drive system row reads Belt (Direct). A spindle oil cooling system is a standard accessory.
02
The UM-150 has 1,500 mm (59.1 in) of X and 750 mm (29.5 in) of Y, a 1,600 x 770 mm (63.0 x 30.3 in) table and weighs 9,500 kg (20,944 lb). Both carry 1,500 kg on the table and both list the 15/18.5 kW motor, roller guideways and 550 mm of Z.
03
The table is 1,500 x 650 mm (59.1 x 25.6 in) with 5 T-slots, 18 mm wide, at a 100 mm pitch. Maximum weight on the table is 1,500 kg (3,307 lb), and the spindle nose travels 150~700 mm (5.9~27.6 in) above it.
04
The dimension row gives 3.3 x 2.7 x 3 m (129.9 x 106.3 x 118.1 in) for length, width and height, and the net weight is 8,000 kg (17,637 lb). Air supply is 5.5 kg/cm². An optional chain type chip conveyor and chip cart need space beyond that.
