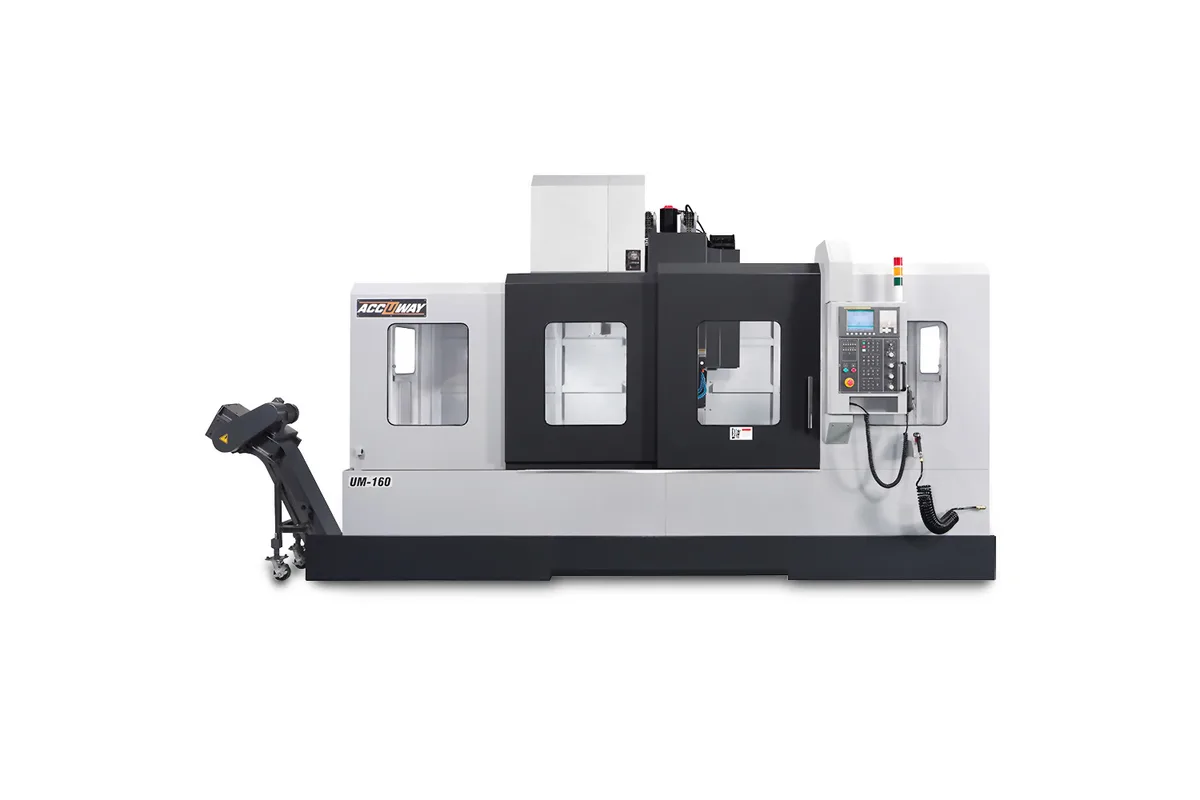

Accuway UM-160
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-160 cost?
Price estimate
We do not have a price for the Accuway UM-160 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 2-step gearbox is the listed drive system of the Accuway UM-160, and Gear box appears among its standard accessories. That, plus box guideways, sets it apart from the belt-drive W machines below it. It is a 15,000 kg (33,069 lb) BT50 vertical machining center with travels of 1,600 mm (63.0 in), 850 mm (33.5 in) and 850 mm (33.5 in).
The gearbox matters because the motor rating is not larger than on the smaller models: 15/18.5 kW (20.1/24.8 hp), continuous and 30 min, at up to 6,000 rpm. Two mechanical ranges let that power arrive as torque at low spindle speed, which is where big face mills, shell mills and large drills in steel do their work.
Rapid traverse is 15 m/min (591 in/min) on each axis. On box ways, with 50/50/50 mm (2.0/2.0/2.0 in) ball screws and 4/4/7 kW feed motors, the machine is built to push, not to sprint. Cutting feed rate is 12 m/min (472 in/min).
The table is 1,700 x 880 mm (66.9 x 34.6 in), with 7 T-slots on a 120 mm pitch and a 2,000 kg (4,409 lb) limit. Z daylight is generous: the spindle nose travels 150~1,000 mm (5.9~39.4 in) above the table. The BT40 UM-160S covers the same strokes with a lighter spindle and faster axes; the UM-210 extends this design to 2,100 mm (82.7 in) of X.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 6,000 rpm |
| Spindle Taper | BT50 |
| Spindle Bearing Inner Diameter | 90 mm (3.5 in) |
| Spindle Drive | 2-step gearbox |
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 850 mm (33.5 in) |
| Distance Spindle Nose to Table | 150~1,000 mm (5.9~39.4 in) |
| Table Size | 1,700 x 880 mm (66.9 x 34.6 in) |
| T-Slots | No. of T-slot x width x pitch: 7 x 18 x 120 mm |
| Max Table Load | 2,000 kg (4,409 lb) |
| Rapid Traverse X | 15 m/min (591 in/min) |
| Rapid Traverse Y | 15 m/min (591 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 50/50/50 mm (2.0/2.0/2.0 in) |
| Guideway Bearing Type | Box |
| Tool Capacity | 24 (32) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Diameter (full magazine) | 105 mm (4.1 in) |
| Max Tool Diameter Without Adjacent Tools | 210 mm (8.3 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 4.4 x 3.9 x 3.0 m (173.2 x 153.5 x 118.1 in) |
| Machine Weight | 15,000 kg (33,069 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2-step gearbox as the standard spindle drive
- Box guideways with 50/50/50 mm (2.0/2.0/2.0 in) ball screws
- 850 mm (33.5 in) of Y and Z travel, with up to 1,000 mm (39.4 in) under the spindle nose
- 2,000 kg (4,409 lb) table load on a 1,700 x 880 mm (66.9 x 34.6 in) table
- BT50 tooling up to 15 kg (33 lb)
Limitations
- Rapid traverse is 15 m/min (591 in/min), half that of the UM-150W
- Spindle motor stays at 15/18.5 kW (20.1/24.8 hp)
- 6,000 rpm limits finishing with small tools
- 4.4 x 3.9 m footprint and 15,000 kg (33,069 lb)
Best For
Frequently Asked Questions
01
Yes. The drive system row reads 2-step gearbox and the standard accessories list includes a 2-step gear box. The spindle is BT50, 6,000 rpm, with a 15/18.5 kW (20.1/24.8 hp) motor and a 90 mm (3.5 in) bearing inner diameter.
02
1,600 mm (63.0 in) in X and 850 mm (33.5 in) in both Y and Z. The table is 1,700 x 880 mm (66.9 x 34.6 in), with 7 T-slots 18 mm wide at a 120 mm pitch, and carries 2,000 kg (4,409 lb).
03
The UM-160S is the BT40 machine: 10,000 rpm, roller guideways, 30 m/min (1,181 in/min) rapids, 7 kg (15 lb) tools and a 1,700 x 950 mm table. The UM-160 is BT50 with a gearbox, box ways, 15 m/min (591 in/min) rapids and 15 kg (33 lb) tools. Travels are the same.
04
Rapid traverse is 15 m/min (591 in/min) in X, Y and Z, and cutting feed rate is 12 m/min (472 in/min). The guideway bearing type is Box and the X/Y/Z feed motors are 4/4/7 kW.
