Accuway Vertical Machining Centers (VMC)

Accuway UM-150

Q: How much does the Accuway UM-150 cost?

The price estimate for the Accuway UM-150 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-um-150#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

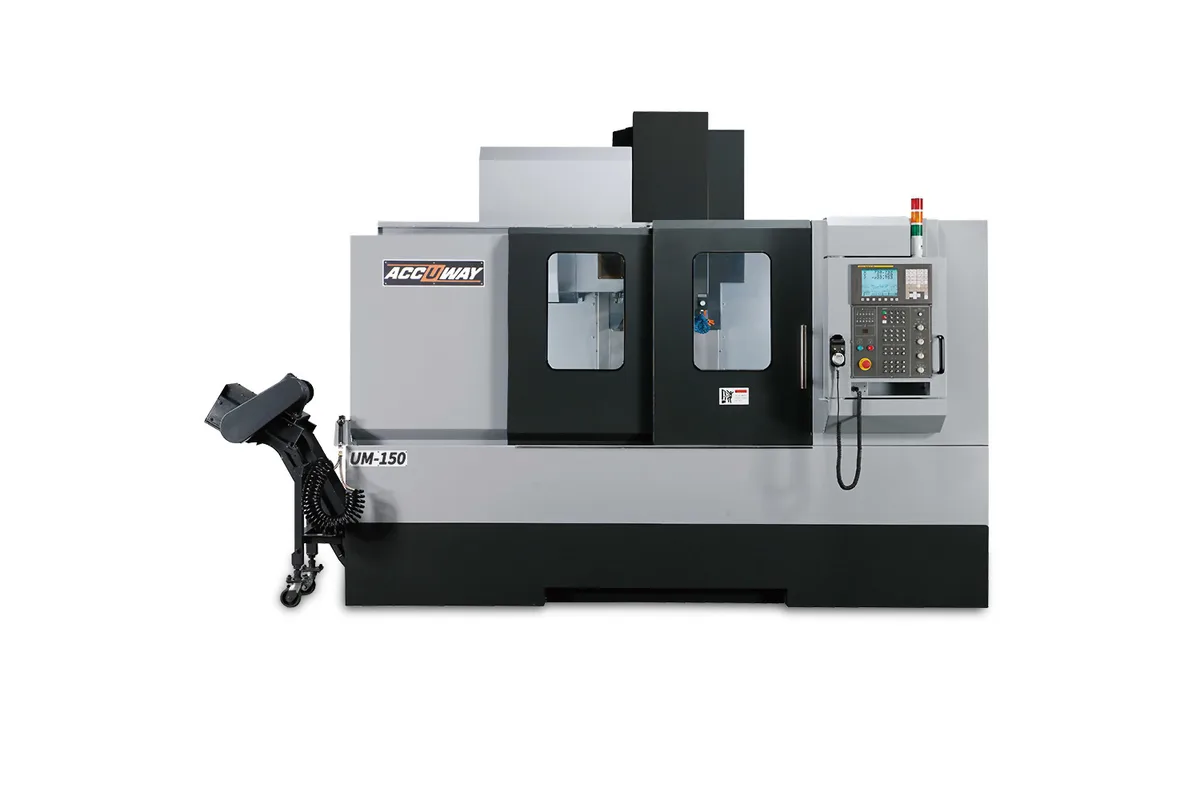

Accuway UM-150 vertical machining center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

10,000 (12,000) rpm

Spindle Taper

BT40

Tool Capacity

24 (30/32)

Table Size

1,600 x 770 mm (63.0 x 30.3 in)

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp)

control

FANUC 0i-M

How much does the Accuway UM-150 cost?

Price estimate

Uncertain

We do not have a price for the Accuway UM-150 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

At 1,500 mm (59.1 in) of X and 750 mm (29.5 in) of Y, the Accuway UM-150 is a large-table vertical machining center that still uses a BT40 spindle. The table measures 1,600 x 770 mm (63.0 x 30.3 in), has 7 T-slots where the smaller frames have 5, and is rated for 1,500 kg (3,307 lb).

Z travel is 550 mm (21.7 in), with the spindle nose 150~700 mm (5.9~27.6 in) from the table. So the envelope is wide and flat. It suits plates, frames and several fixtures side by side far better than tall parts.

The drive package matches the UM-130: 15/18.5 kW (20.1/24.8 hp) on continuous and 30 min ratings, 10,000 rpm with 12,000 rpm in brackets, roller guideways and 4/4/7 kW feed motors on 45/45/45 mm (1.8/1.8/1.8 in) ball screws. Rapid traverse is 30 m/min (1,181 in/min) per axis. Moving a 1,500 kg load at that rate is what the larger feed motors are for.

Net weight is 9,500 kg (20,944 lb), against 8,000 kg (17,637 lb) for the UM-130. Buyers who want this X stroke with a 50-taper spindle have the UM-150W on Accuway's BT-50 list; the UM-150 is the choice when tool cost, speed and 24 pockets (30/32 bracketed) of 40-taper tooling matter more than the heaviest cuts.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-M
Max Spindle Speed	10,000 (12,000) rpm
Spindle Taper	BT40
Spindle Bearing Inner Diameter	70 mm (2.8 in)
Spindle Drive	Belt (Direct)
X Axis Travel	1,500 mm (59.1 in)
Y Axis Travel	750 mm (29.5 in)
Z Axis Travel	550 mm (21.7 in)
Distance Spindle Nose to Table	150~700 mm (5.9~27.6 in)
Table Size	1,600 x 770 mm (63.0 x 30.3 in)
T-Slots	No. of T-slot x width x pitch: 7 x 18 x 100 mm
Max Table Load	1,500 kg (3,307 lb)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Y	30 m/min (1,181 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Cutting Feed Rate	12 m/min (472 in/min)
Ball Screw Diameter Xyz	X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in)
Guideway Bearing Type	Roller
Tool Capacity	24 (30/32)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	75 mm (3.0 in)
Max Tool Diameter Without Adjacent Tools	150 mm (5.9 in)
Tool Change Method	Arm type
Max Tool Length	300 mm (11.8 in)
Ai Contour Control	AICC I (AICC II)
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp)
Feed Motor Xyz	X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp)
Coolant Pump Motor	50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp)
Air Supply	5.5 kg/cm²
Machine Dimensions	L x W x H: 3.7 x 2.9 x 3 m (145.7 x 114.2 x 118.1 in)
Machine Weight	9,500 kg (20,944 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

1,500 x 750 mm of X and Y travel under a BT40 spindle
1,600 x 770 mm (63.0 x 30.3 in) table with 7 T-slots
15/18.5 kW (20.1/24.8 hp) motor and roller guideways as listed
1,500 kg (3,307 lb) table load moved at 30 m/min (1,181 in/min)
FANUC 0i-M controller with AICC II on the standard accessories list

Limitations

Z travel of 550 mm (21.7 in) is short for a table this size
BT40 tooling: 7 kg (15 lb) and 75 mm (3.0 in) diameter with a full magazine
Table load is no higher than the smaller UM-130
9,500 kg (20,944 lb) and 3.7 x 2.9 m of floor need planning

Best For

Large plates and frames up to 1,500 x 750 mm Several fixtures or vises across a 1,600 mm table Aluminium and steel plate work at 10,000 rpm Shops standardised on BT40 tooling that need a big table

Frequently Asked Questions

01 How large a part fits on the Accuway UM-150?

Travels are 1,500 mm (59.1 in) in X, 750 mm (29.5 in) in Y and 550 mm (21.7 in) in Z. The table is 1,600 x 770 mm (63.0 x 30.3 in) and carries 1,500 kg (3,307 lb). Spindle nose to table is 150~700 mm (5.9~27.6 in).

02 How many T-slots does the UM-150 table have?

Seven. The T-slot row reads 7 x 18 x 100 mm, meaning the number of slots, their width and their pitch. The smaller BT40 frames up to the UM-130 list five slots of the same width.

03 Is the UM-150 a BT40 or a BT50 machine?

40-taper. The spindle nose taper is BT40 with a 70 mm (2.8 in) bearing inner diameter, 10,000 rpm and a 15/18.5 kW (20.1/24.8 hp) motor. Accuway lists it in its BT-40 group; the UM-150W is the model in the BT-50 group.

04 What are the installation figures for the UM-150?

Machine dimensions are 3.7 x 2.9 x 3 m (145.7 x 114.2 x 118.1 in), L x W x H, and net weight is 9,500 kg (20,944 lb). The air supply is 5.5 kg/cm², and the coolant pump motor row reads 0.53+0.85/0.75+1.27 kW for 50Hz/60Hz.
