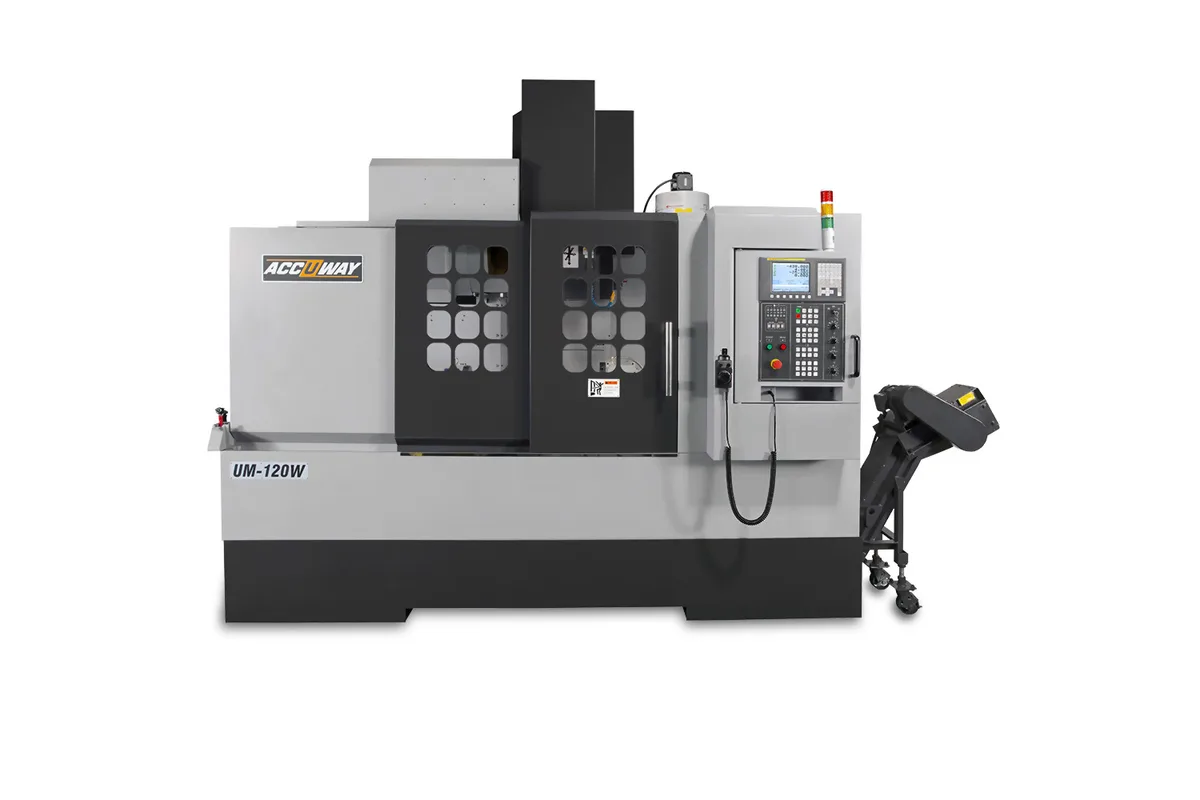

Accuway UM-120W
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-120W cost?
Price estimate
We do not have a price for the Accuway UM-120W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Accuway's UM-120W is a 50-taper vertical machining center with a square-ish envelope: 1,200 mm (47.2 in) of X, 650 mm (25.6 in) of Y and 600 mm (23.6 in) of Z. The 1,200 x 650 mm (47.2 x 25.6 in) table has the same plan dimensions as the X and Y strokes.
Compared with the UM-110W it is wider in Y, longer in Z and heavier, at 8,000 kg (17,637 lb), yet the table load is the same 1,200 kg (2,646 lb). The gain is reach, not capacity. Spindle nose to table runs 130~730 mm (5.1~28.7 in), which leaves room for a long BT50 boring bar above a fixture.
The head is common to the belt-drive BT-50 machines. It turns 6,000 rpm on a 15/18.5 kW (20.1/24.8 hp) motor, continuous and 30 min, with a 90 mm (3.5 in) bearing inner diameter. Speed that low suits cutters of large diameter, and the changer is sized for them: 105 mm (4.1 in) with a full magazine and 210 mm (8.3 in) when adjacent pockets are empty, at up to 15 kg (33 lb) each.
Axes run on roller guideways at 30 m/min (1,181 in/min) with 45/45/45 mm (1.8/1.8/1.8 in) ball screws. If sliding ways are preferred, the UM-120WB offers them on these travels at lower rapids. Standard equipment includes a FANUC 0i-M with AICC II, rigid tapping and a spindle oil cooling system.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 6,000 rpm |
| Spindle Taper | BT50 |
| Spindle Bearing Inner Diameter | 90 mm (3.5 in) |
| Spindle Drive | Belt |
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Distance Spindle Nose to Table | 130~730 mm (5.1~28.7 in) |
| Table Size | 1,200 x 650 mm (47.2 x 25.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 100 mm |
| Max Table Load | 1,200 kg (2,646 lb) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (32) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Diameter (full magazine) | 105 mm (4.1 in) |
| Max Tool Diameter Without Adjacent Tools | 210 mm (8.3 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/7 kW (4.0/4.0/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3.3 x 2.7 x 3.0 m (129.9 x 106.3 x 118.1 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,200 x 650 x 600 mm travels with a BT50 spindle
- Spindle nose to table up to 730 mm (28.7 in) for long tools
- Roller guideways and 30 m/min (1,181 in/min) rapid traverse
- Tool changer handles 15 kg (33 lb) tools up to 210 mm (8.3 in) without adjacent tools
- 15/18.5 kW (20.1/24.8 hp) spindle motor
Limitations
- 6,000 rpm maximum spindle speed
- 1,200 kg (2,646 lb) table load, the same as the smaller UM-110W
- Magazine capacity is 24 unless the bracketed 32 is ordered
- The 2-step gear box and 20 bar through-spindle coolant are options
Best For
Frequently Asked Questions
01
BT50 taper, 6,000 rpm, belt drive, 90 mm (3.5 in) bearing inner diameter and a 15/18.5 kW (20.1/24.8 hp) motor rated continuous and 30 min. A spindle oil cooling system is standard, and a 2-step gear box and spindle speed upgrading are on the options list.
02
Travels and table size match. The UM-120 lists 10,000 rpm, a 7.5/11 kW (10.1/14.8 hp) motor, ball guideways, 7 kg (15 lb) tools and a 1,300 kg (2,866 lb) table load. The UM-120W lists 6,000 rpm, 15/18.5 kW, roller guideways, 15 kg (33 lb) tools and 1,200 kg.
03
The X/Y/Z feed motor row reads 3/3/7 kW and the ball screw diameters are 45/45/45 mm (1.8/1.8/1.8 in). Guideway bearing type is Roller. Rapid traverse is 30 m/min (1,181 in/min) on each axis and the cutting feed rate is 12 m/min (472 in/min).
04
The machine is 3.3 x 2.7 x 3.0 m (129.9 x 106.3 x 118.1 in) and weighs 8,000 kg (17,637 lb). Air supply is 5.5 kg/cm². A chain type chip conveyor with chip cart is an optional accessory and sits outside those dimensions.
