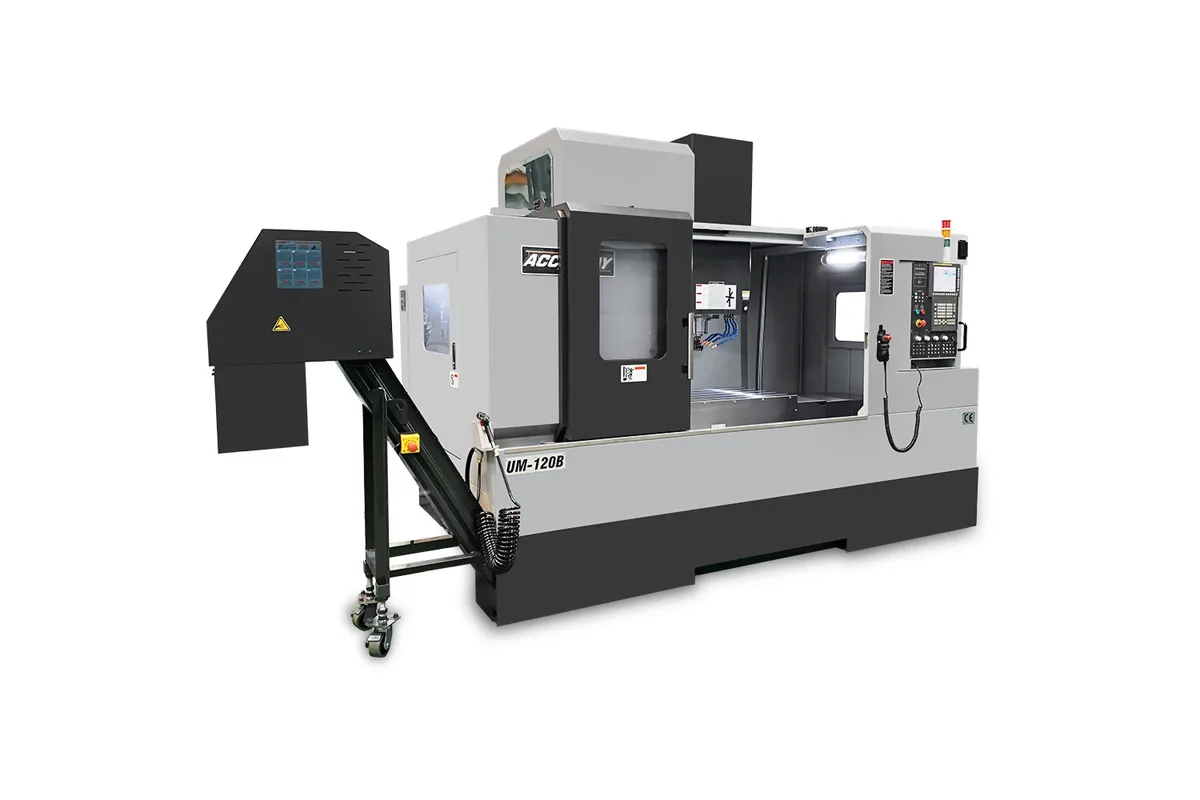

Accuway UM-120B
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-120B cost?
Price estimate
We do not have a price for the Accuway UM-120B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Box guideways are the reason the Accuway UM-120B exists. It shares its travels with the linear-guide UM-120, namely 1,200 mm (47.2 in), 650 mm (25.6 in) and 600 mm (23.6 in), but the guideway bearing type row says Box and the rapid traverse drops to 24 m/min (945 in/min) on every axis.
That trade is deliberate. Sliding box ways give more contact area and damping than rolling guides, which helps in interrupted cuts and with long tools in steel or cast iron, and they cost traverse speed. The options list supports the same intent: it offers a 2-step gear box, an entry that no linear-guide page in the BT40 line carries. A geared spindle multiplies torque at low speed for large drills and face mills.
As listed, the spindle is 10,000 rpm with 12,000 rpm in brackets and a Belt (Direct) drive, on 7.5/11 kW (10.1/14.8 hp) with 15/18.5 kW (20.1/24.8 hp) bracketed. Tools are BT40, up to 7 kg (15 lb), which sets its own limit on how heavy a cutter can be however stiff the ways are.
The table is 1,300 x 650 mm (51.2 x 25.6 in), longer than the X travel, with five 18 mm T-slots on a 120 mm pitch, and takes 1,200 kg (2,646 lb). Spindle nose to table is 150~750 mm (5.9~29.5 in). The machine weighs 7,500 kg (16,534 lb) and runs a FANUC 0i-M with AICC II.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 10,000 (12,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Belt (Direct) |
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Distance Spindle Nose to Table | 150~750 mm (5.9~29.5 in) |
| Table Size | 1,300 x 650 mm (51.2 x 25.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 120 mm |
| Max Table Load | 1,200 kg (2,646 lb) |
| Rapid Traverse X | 24 m/min (945 in/min) |
| Rapid Traverse Y | 24 m/min (945 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Box |
| Tool Capacity | 24 (30/32) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I (AICC II) |
| Spindle Motor Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.75+1.27 kW (1.0+1.7 hp), in brackets 1.01+1.73 kW (1.4+2.3 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3.1 x 2.3 x 2.8 m (122.0 x 90.6 x 110.2 in) |
| Machine Weight | 7,500 kg (16,534 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Box guideways on a 1,200 x 650 x 600 mm travel BT40 machine
- A 2-step gear box is offered on the optional accessories list
- 1,300 x 650 mm (51.2 x 25.6 in) table, longer than the X travel, for clamping outside the cut
- Spindle nose to table reaches 750 mm (29.5 in)
Limitations
- Rapid traverse is 24 m/min (945 in/min), the slowest of the BT40 UM machines
- Table load of 1,200 kg (2,646 lb) is below the 1,300 kg (2,866 lb) of the UM-120
- The gear box is optional; the standard drive row reads Belt (Direct)
- BT40 tooling limits tool weight to 7 kg (15 lb)
Best For
Frequently Asked Questions
01
Accuway does not spell it out, but the table shows the difference: the guideway bearing type is Box, where the UM-120 lists Ball. Rapid traverse is 24 m/min (945 in/min) on X, Y and Z, against 30 m/min (1,181 in/min) on the UM-120.
02
Not as standard. The drive system row reads Belt (Direct), and 2-step gear box is one of the optional accessories. Listed spindle speed is 10,000 rpm with 12,000 rpm in brackets, and motor power is 7.5/11 kW (10.1/14.8 hp) with 15/18.5 kW (20.1/24.8 hp) in brackets.
03
1,300 x 650 mm (51.2 x 25.6 in), with 5 T-slots 18 mm wide at a 120 mm pitch, and a maximum load of 1,200 kg (2,646 lb). X travel is 1,200 mm (47.2 in), so the table extends past the stroke.
04
The magazine row reads 24, with 30/32 bracketed, and tool exchange is by arm. Maximum tool length is 300 mm (11.8 in), maximum diameter 75 mm (3.0 in), or 150 mm (5.9 in) without adjacent tools, and maximum weight 7 kg (15 lb).
