Accuway Vertical Machining Centers (VMC)

Accuway UM-110W

Q: How much does the Accuway UM-110W cost?

The price estimate for the Accuway UM-110W is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-um-110w#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

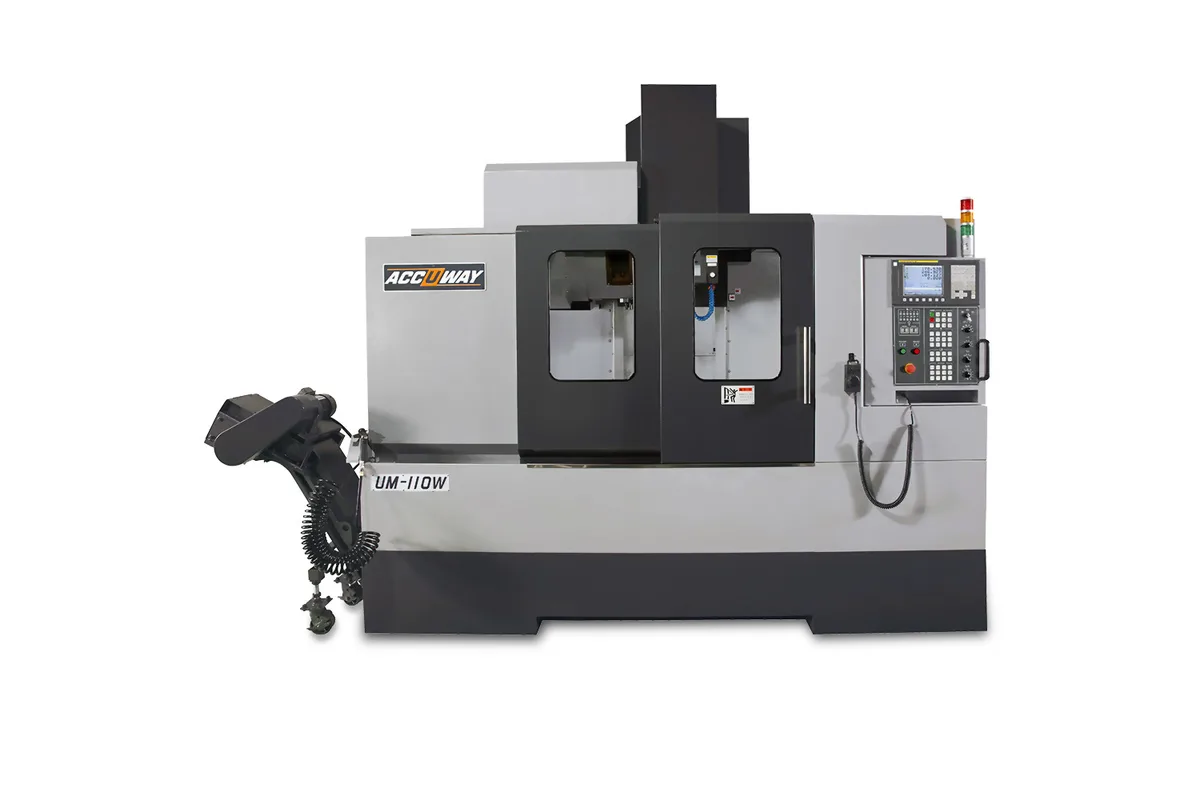

Accuway UM-110W vertical machining center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

BT50

Tool Capacity

24 (32)

Table Size

1,200 x 600 mm (47.2 x 23.6 in)

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp)

control

FANUC 0i-M

How much does the Accuway UM-110W cost?

Price estimate

Uncertain

We do not have a price for the Accuway UM-110W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UM-110W puts a BT50 spindle on the 1,100 mm frame. Where the UM-110 turns 10,000 rpm on a 70 mm (2.8 in) bearing, this one is listed at 6,000 rpm with a 90 mm (3.5 in) bearing inner diameter and a 15/18.5 kW (20.1/24.8 hp) motor on a belt drive. It is the entry point of Accuway's BT-50 group.

Travels are 1,100 mm (43.3 in), 550 mm (21.7 in) and 550 mm (21.7 in). The table is 1,200 x 600 mm (47.2 x 23.6 in) and takes 1,200 kg (2,646 lb). Those are the figures of the UM-110, and the net weight is the same 7,500 kg (16,534 lb), so the W changes the head and the tooling more than the base.

Tooling is the point. The magazine accepts tools of 15 kg (33 lb), 105 mm (4.1 in) in diameter with neighbours in place and 210 mm (8.3 in) without, against 7 kg (15 lb) and 75 mm (3.0 in) on the UM-110. Large face mills, long boring bars and big drills become usable. Capacity is 24, with 32 bracketed.

Guideway bearings are Roller, rapids are 30 m/min (1,181 in/min), and the Z feed motor is larger: the X/Y/Z row reads 3/3/7 kW. A 2-step gear box is offered as an option for more low-speed torque than the belt drive gives. Spindle nose to table is 155~705 mm (6.1~27.8 in).

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-M
Max Spindle Speed	6,000 rpm
Spindle Taper	BT50
Spindle Bearing Inner Diameter	90 mm (3.5 in)
Spindle Drive	Belt
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	550 mm (21.7 in)
Z Axis Travel	550 mm (21.7 in)
Distance Spindle Nose to Table	155~705 mm (6.1~27.8 in)
Table Size	1,200 x 600 mm (47.2 x 23.6 in)
T-Slots	No. of T-slot x width x pitch: 5 x 18 x 100 mm
Max Table Load	1,200 kg (2,646 lb)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Y	30 m/min (1,181 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Cutting Feed Rate	12 m/min (472 in/min)
Ball Screw Diameter Xyz	X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in)
Guideway Bearing Type	Roller
Tool Capacity	24 (32)
Max Tool Weight	15 kg (33 lb)
Max Tool Diameter (full magazine)	105 mm (4.1 in)
Max Tool Diameter Without Adjacent Tools	210 mm (8.3 in)
Tool Change Method	Arm type
Max Tool Length	300 mm (11.8 in)
Ai Contour Control	AICC I
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp)
Feed Motor Xyz	X/Y/Z: 3/3/7 kW (4.0/4.0/9.4 hp)
Coolant Pump Motor	50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp)
Air Supply	5.5 kg/cm²
Machine Dimensions	L x W x H: 3.0 x 2.2 x 3.0 m (118.1 x 86.6 x 118.1 in)
Machine Weight	7,500 kg (16,534 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

BT50 spindle with a 90 mm (3.5 in) bearing inner diameter and a 15/18.5 kW (20.1/24.8 hp) motor
Tools up to 15 kg (33 lb) and 210 mm (8.3 in) in diameter without adjacent tools
Roller guideways with 30 m/min (1,181 in/min) rapids on all axes
A 2-step gear box is available as an optional accessory

Limitations

Spindle speed is 6,000 rpm, which limits small-tool and aluminium work
Table load of 1,200 kg (2,646 lb) is no higher than the BT40 UM-110
Y travel is 550 mm (21.7 in)
Belt drive as standard; the gear box costs extra

Best For

Heavy face milling and boring in steel on mid-size parts Shops with existing BT50 tooling Long parts up to 1,100 mm that need large cutters Cast-iron and steel roughing below 6,000 rpm

Frequently Asked Questions

01 What does the W mean on the Accuway UM-110W?

Accuway does not define the letter, but the W models sit in its BT-50 group. The UM-110W has a BT50 spindle nose taper, 6,000 rpm and a 15/18.5 kW (20.1/24.8 hp) motor, where the UM-110 has BT40, 10,000 rpm and 7.5/11 kW (10.1/14.8 hp).

02 How large a tool can the UM-110W change?

Maximum tool weight is 15 kg (33 lb) and maximum length 300 mm (11.8 in). Diameter is limited to 105 mm (4.1 in) with a full magazine, or 210 mm (8.3 in) without adjacent tools. The magazine row reads 24 (32) and the exchange method is arm type.

03 Does the UM-110W have a gearbox?

The drive system row reads Belt. A 2-step gear box appears in the optional accessories, together with spindle speed upgrading. The larger UM-160 and UM-210 list a 2-step gearbox as their drive system.

04 What are the UM-110W travels and table size?

1,100 mm (43.3 in) in X and 550 mm (21.7 in) in both Y and Z, over a 1,200 x 600 mm (47.2 x 23.6 in) table with 5 T-slots of 18 mm at a 100 mm pitch. The table carries 1,200 kg (2,646 lb).
