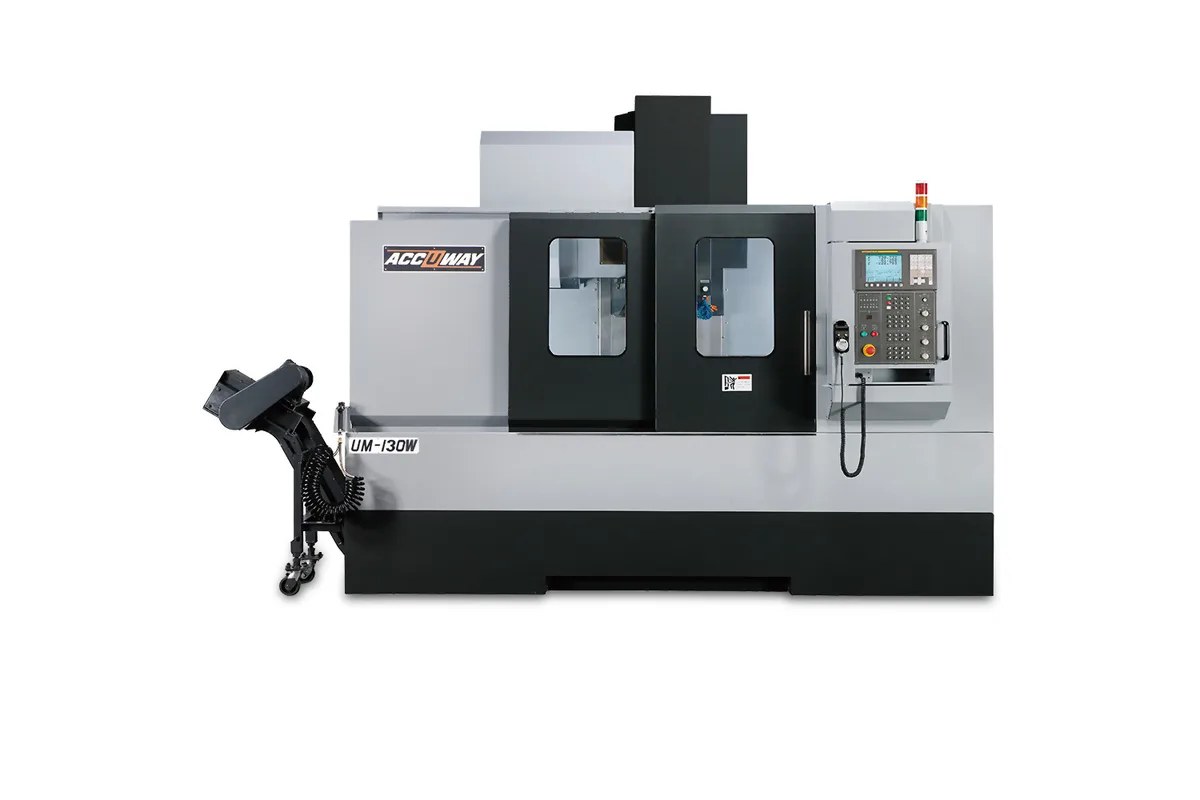

Accuway UM-130W
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-130W cost?
Price estimate
We do not have a price for the Accuway UM-130W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UM-130W is a BT50 vertical machining center with 1,300 mm (51.2 in) of X travel and a table longer than that stroke, 1,500 x 650 mm (59.1 x 25.6 in). It is rated for 1,500 kg (3,307 lb) on the table and weighs 9,000 kg (19,841 lb), against 8,000 kg (17,637 lb) for the UM-120W.
More mass and more load come with stronger axis drives. The X/Y/Z feed motor row reads 4/4/7 kW here, where the UM-110W and UM-120W list 3/3/7 kW. Roller guideways and 45/45/45 mm (1.8/1.8/1.8 in) ball screws carry the axes at 30 m/min (1,181 in/min).
Y is 650 mm (25.6 in) and Z is 550 mm (21.7 in), with the spindle nose 155~705 mm (6.1~27.8 in) from the table. The spindle itself does not change through this part of the range: BT50, 6,000 rpm, belt drive, 15/18.5 kW (20.1/24.8 hp), 90 mm (3.5 in) bearing.
Because the table is longer than the X travel, a part that fills it needs a second setup to be machined end to end; the extra length is clamping room. With tools up to 15 kg (33 lb) and 210 mm (8.3 in) across when neighbouring pockets are left free, the machine is aimed at steel plate, die sets and machine components that need large cutters more than high speed. The FANUC 0i-M with AICC II is standard.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 6,000 rpm |
| Spindle Taper | BT50 |
| Spindle Bearing Inner Diameter | 90 mm (3.5 in) |
| Spindle Drive | Belt |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 155~705 mm (6.1~27.8 in) |
| Table Size | 1,500 x 650 mm (59.1 x 25.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 100 mm |
| Max Table Load | 1,500 kg (3,307 lb) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (32) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Diameter (full magazine) | 105 mm (4.1 in) |
| Max Tool Diameter Without Adjacent Tools | 210 mm (8.3 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3.3 x 2.7 x 3.0 m (129.9 x 106.3 x 118.1 in) |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,500 kg (3,307 lb) table load on a 1,500 x 650 mm (59.1 x 25.6 in) table
- 4/4/7 kW feed motors and roller guideways
- BT50 spindle with 15/18.5 kW (20.1/24.8 hp)
- 30 m/min (1,181 in/min) rapids on a 9,000 kg (19,841 lb) machine
Limitations
- Z travel of 550 mm (21.7 in) is less than the 600 mm (23.6 in) of the UM-120W
- The table is longer than the 1,300 mm X stroke
- 6,000 rpm spindle with belt drive as standard
- Magazine row reads 24 (32); the larger capacity is not the base figure
Best For
Frequently Asked Questions
01
X travel is 1,300 mm (51.2 in), Y is 650 mm (25.6 in) and Z is 550 mm (21.7 in). The table measures 1,500 x 650 mm (59.1 x 25.6 in) with 5 T-slots, 18 mm wide at a 100 mm pitch, and carries 1,500 kg (3,307 lb).
02
Same envelope, different spindle. The UM-130 is BT40 at 10,000 rpm with 7 kg (15 lb) tools and weighs 8,000 kg (17,637 lb). The UM-130W is BT50 at 6,000 rpm with 15 kg (33 lb) tools and weighs 9,000 kg (19,841 lb). Both list a 15/18.5 kW motor and roller guideways.
03
As an option. The drive system row reads Belt, and the optional accessories include a 2-step gear box. Accuway lists the 2-step gearbox as the standard drive only from the UM-160 upward.
04
A 4-bar coolant system, cutter air blast and spray gun are standard accessories. A 20 bar coolant through spindle system, an oil-coolant skimmer and an oil mist collector are options. The coolant pump motor row reads 0.53+0.85/0.75+1.27 kW under 50Hz/60Hz.
