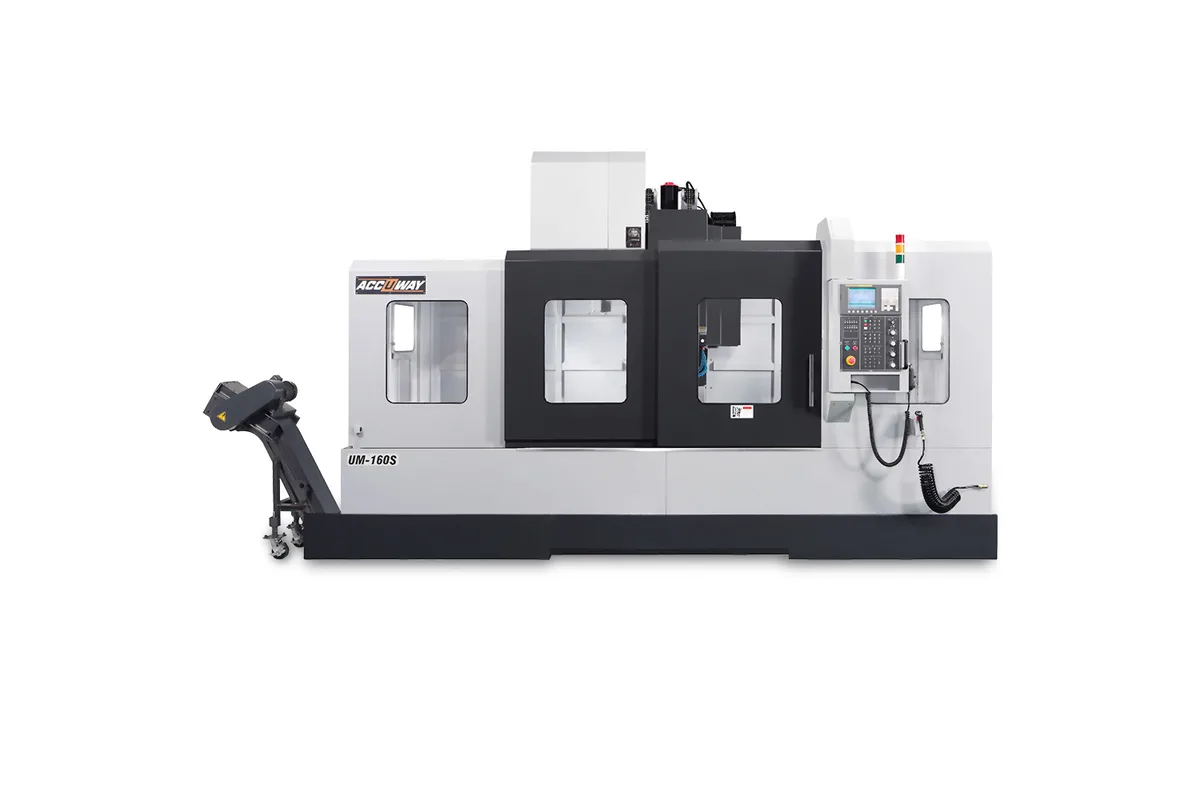

Accuway UM-160S
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-160S cost?
Price estimate
We do not have a price for the Accuway UM-160S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UM-160S breaks the pattern of the BT40 range in one direction: height. Z travel is 850 mm (33.5 in) and the spindle nose reaches 1,000 mm (39.4 in) above the table, from a minimum of 150 mm. The UM-120, the next tallest BT40 model in the line, lists 600 mm (23.6 in) of Z. X is 1,600 mm (63.0 in) and Y is 850 mm (33.5 in).
Everything structural is scaled to match. Ball screws are 50/50/50 mm (2.0/2.0/2.0 in), the largest in the group. The table is 1,700 x 950 mm (66.9 x 37.4 in) with 9 T-slots and a 2,000 kg (4,409 lb) rating, and the machine weighs 14,000 kg (30,864 lb), against 9,500 kg (20,944 lb) for the UM-150.
The spindle, though, is the familiar one. It is BT40, 10,000 rpm with 12,000 rpm in brackets, Belt (Direct), and 15/18.5 kW (20.1/24.8 hp) continuous and 30 min. A tall Z with a 40-taper means long tool overhang is likely, and the 300 mm (11.8 in) tool length and 7 kg (15 lb) weight limits apply as on the small machines. Deep cavities are reached by moving the head, not by long tools.
Roller guideways and 4/4/7 kW feed motors move the axes at 30 m/min (1,181 in/min). Control is a FANUC 0i-M with AICC II. Accuway also lists a UM-160 in its BT-50 group for those who need the heavier taper.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 10,000 (12,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Belt (Direct) |
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 850 mm (33.5 in) |
| Distance Spindle Nose to Table | 150~1,000 mm (5.9~39.4 in) |
| Table Size | 1,700 x 950 mm (66.9 x 37.4 in) |
| T-Slots | No. of T-slot x width x pitch: 9 x 18 x 100 mm |
| Max Table Load | 2,000 kg (4,409 lb) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 50/50/50 mm (2.0/2.0/2.0 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (30/32) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I (AICC II) |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 4.4 x 3.2 x 3.2 m (173.2 x 126.0 x 126.0 in) |
| Machine Weight | 14,000 kg (30,864 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 850 mm (33.5 in) of Z travel and up to 1,000 mm (39.4 in) from spindle nose to table
- 1,700 x 950 mm (66.9 x 37.4 in) table with 9 T-slots, rated for 2,000 kg (4,409 lb)
- 50/50/50 mm (2.0/2.0/2.0 in) ball screws with roller guideways
- 1,600 x 850 mm of X and Y travel on a 14,000 kg (30,864 lb) machine
- 15/18.5 kW (20.1/24.8 hp) spindle motor as listed
Limitations
- BT40 spindle and a 7 kg (15 lb) tool limit on a machine of this size
- Maximum tool length is 300 mm (11.8 in) despite the 850 mm Z
- Needs 4.4 x 3.2 m of floor and 3.2 m of height
- Cutting feed rate is 12 m/min (472 in/min), unchanged from the small frames
Best For
Frequently Asked Questions
01
1,600 mm (63.0 in) in X, 850 mm (33.5 in) in Y and 850 mm (33.5 in) in Z. The distance from spindle nose to table is 150~1,000 mm (5.9~39.4 in). The table is 1,700 x 950 mm (66.9 x 37.4 in).
02
2,000 kg (4,409 lb). The T-slot row reads 9 x 18 x 100 mm, so there are nine 18 mm slots at a 100 mm pitch across the 950 mm width for clamping large or multiple workpieces.
03
For Z and load. The UM-150 lists 550 mm (21.7 in) of Z and 1,500 kg (3,307 lb) on a 1,600 x 770 mm table. The UM-160S lists 850 mm of Z, 2,000 kg and a 1,700 x 950 mm table, with larger 50 mm ball screws. Spindle and motor are the same.
04
A BT40 spindle at 10,000 rpm, with 12,000 rpm in brackets, driven by a 15/18.5 kW (20.1/24.8 hp) motor. The arm type changer is listed at 24, with 30/32 bracketed; tools can be 75 mm (3.0 in) in diameter, or 150 mm (5.9 in) without adjacent tools.
