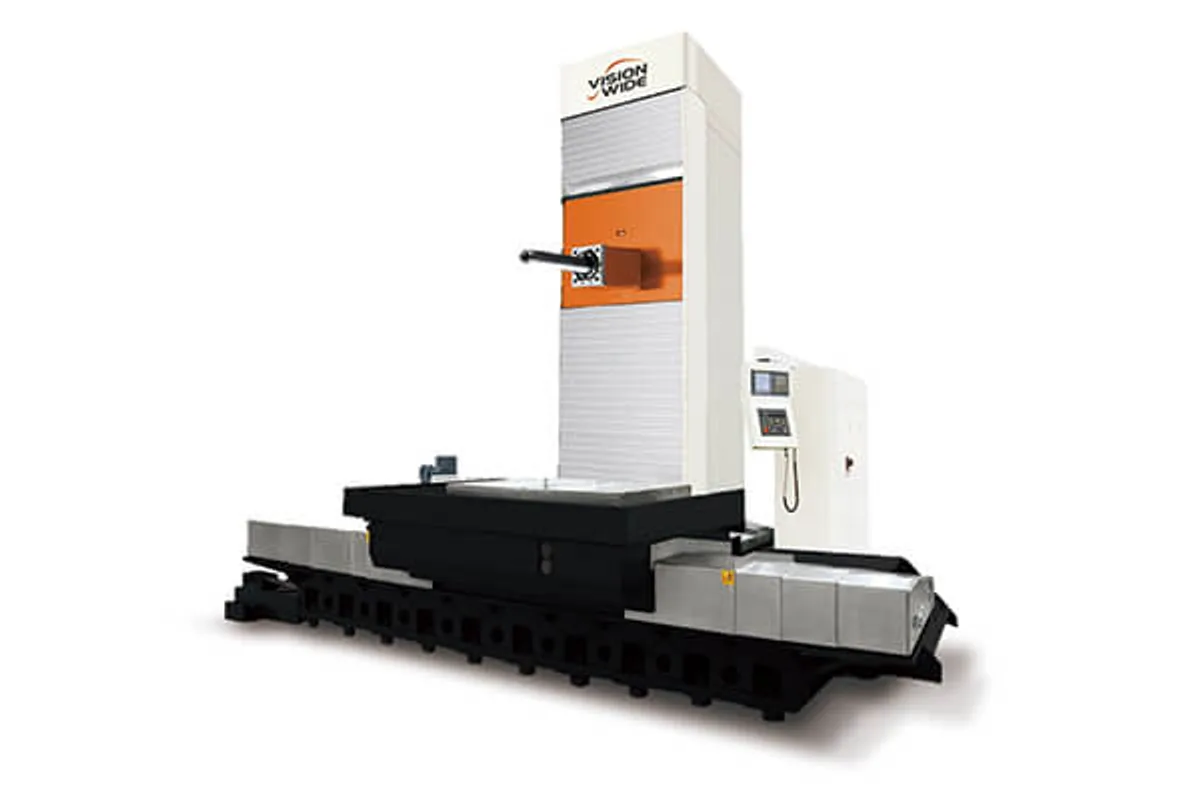

Vision Wide VBH-130-1618
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-130-1618 cost?
Price estimate
We do not have a price for the Vision Wide VBH-130-1618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,970 Nm available in short-time duty, the Vision Wide VBH-130-1618 is a boring mill for heavy stock removal on parts up to 20,000 kg (44,092 lb). The continuous torque figure is 1,444 Nm, and the full row reads 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft).
Torque at that level is delivered at low speed, and the 3,000 rpm top speed confirms a spindle geared for it. In use it means face mills of large diameter in cast iron and steel, big boring heads, and line boring of several bores in one pass with the W axis extended. The W axis has 700 mm (27.6 in) of travel.
The table is 1,600 x 1,800 mm (63.0 x 70.9 in) and rated for 15,000 kg, or 20,000 kg as an option, in the central area. X travel is 2,000 mm with 2,500 mm optional, Y is 2,000 mm with 2,500 mm optional, and Z is 1,500 mm with 2,000 mm optional.
Note how many of those figures are options. A quotation for this model needs five choices made: X, Y, Z, table load, and the column structure, since the VBT-130-1618 offers the same figures with a Y-axis box way design in place of the VBH's box in box frame.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load Central Area | 15,000 / 20,000 kg (33,069 / 44,092 lb) (Opt.) |
| Distance Spindle Nose to Table Center | -40~660~2,160 / -40~660~2,660 mm (-1.6~26.0~85.0 / -1.6~26.0~104.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,000 / 0~2,500 mm (0~78.7 / 0~98.4 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) of spindle torque
- Table load of 15,000 kg, or 20,000 kg (44,092 lb) as an option
- 700 mm (27.6 in) W axis for line boring
- Optional travels of 2,500 mm in X and Y and 2,000 mm in Z
Limitations
- Many headline figures are options: long X, Y and Z and the heavier table
- Spindle speed limited to 3,000 rpm
- No feed, rapid traverse or tool changer data on the page
Best For
Frequently Asked Questions
01
1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), continuous and short-time, from a 22 / 30 kW (29.5 / 40.2 hp) motor. Spindle speed is 3,000 rpm.
02
X 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Z 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) and W 700 mm (27.6 in).
03
15,000 / 20,000 kg (33,069 / 44,092 lb) (Opt.) in the central area, on a 1,600 x 1,800 mm (63.0 x 70.9 in) table.
04
The VBH-130-1822 is larger, with a 1,800 x 2,200 mm (70.9 x 86.6 in) table for 20,000 kg (44,092 lb) and X travel of 3,000 mm, or 3,500 mm as an option. Spindle figures are the same on both.
