Vision Wide VBH-110-1416

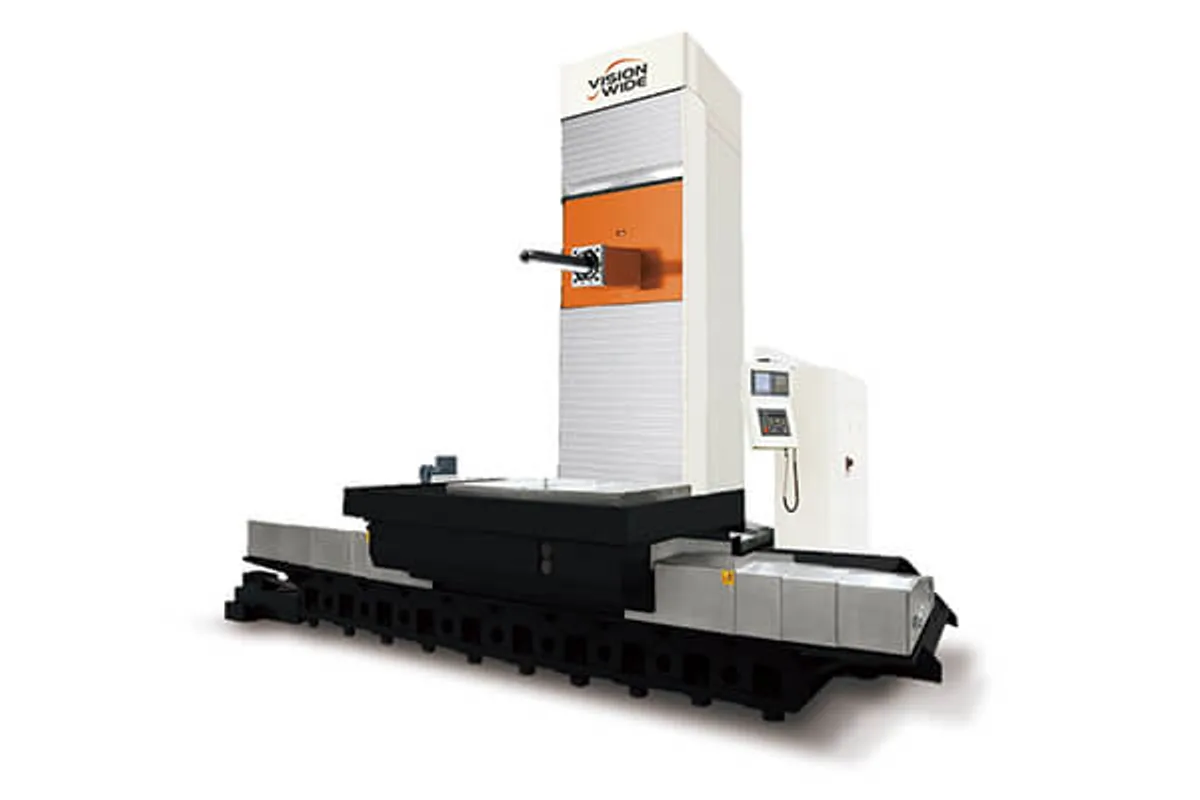

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-110-1416 cost?
Price estimate
We do not have a price for the Vision Wide VBH-110-1416 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Table load comes in two ratings on the Vision Wide VBH-110-1416: 6,000 kg as standard and 10,000 kg as an option, printed as 6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) and measured in the central area. The table is 1,400 x 1,600 mm (55.1 x 63.0 in).
That choice is worth making deliberately. Vision Wide lists heavy load ability first among the VBH features, and names diesel engine bodies, construction machinery and large structural parts among the work the series is meant for. An engine block or a transmission case of the size this table holds can pass 6,000 kg once the fixture is counted. The heavier table is the safer specification for such parts, and it cannot be assumed after delivery.
Travels are 2,000 mm in X, or 2,500 mm as an option, and 1,600 mm in Y, or 2,000 mm. Z is 1,500 mm (59.1 in) and the W-axis spindle travel is 550 mm (21.7 in).
The spindle belongs to the smaller of the two classes in the series: 3,500 rpm, 18.5 / 22 kW (24.8 / 29.5 hp) and 972 / 1,155 Nm (717 / 852 lb-ft). The VBH-130-1416 offers the same table under the larger spindle. A VBT-110-1416 is listed with the same figures and a different column structure.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 1,600 / 2,000 mm (63.0 / 78.7 in) (Opt.) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| W Axis Travel | 550 mm (21.7 in) |
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| Max Table Load Central Area | 6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) |
| Distance Spindle Nose to Table Center | -25~525~2,025 mm (-1.0~20.7~79.7 in) |
| Distance Spindle Center to Table Surface | 0~1,600 / 0~2,000 mm (0~63.0 / 0~78.7 in) (Opt.) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Power Cont 30 Min | 18.5 / 22 kW (24.8 / 29.5 hp) |
| Spindle Torque Cont 30 Min | 972 / 1,155 Nm (717 / 852 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table load of 6,000 kg, or 10,000 kg (22,046 lb) with the option
- 1,400 x 1,600 mm (55.1 x 63.0 in) table
- Box in box structure for stability
- Optional X travel of 2,500 mm and Y travel of 2,000 mm
Limitations
- The 10,000 kg table rating is an option
- Spindle torque of 972 / 1,155 Nm (717 / 852 lb-ft) is the lower class of the series
- No rapid traverse or feed figures are published
Best For
Frequently Asked Questions
01
6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) in the central area: 6,000 kg standard and 10,000 kg optional. The table measures 1,400 x 1,600 mm (55.1 x 63.0 in).
02
Same table and table load. The VBH-130-1416 has a 3,000 rpm spindle with 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), a 700 mm (27.6 in) W axis and longer Y and Z options.
03
X 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y 1,600 / 2,000 mm (63.0 / 78.7 in) (Opt.), Z 1,500 mm (59.1 in) and W 550 mm (21.7 in).
04
The two tables match row for row. The stated difference is structural: box in box for the VBH, a Y-axis box way structure design for the VBT.
