Zayer ZERO G
Image: zayer.com, Zayer
Key Specifications
Tool Capacity
Rapid Traverse
Accuracy
Repeatability
rotary table size
x axis travel
How much does the Zayer ZERO G cost?
Price estimate
We do not have a price for the Zayer ZERO G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

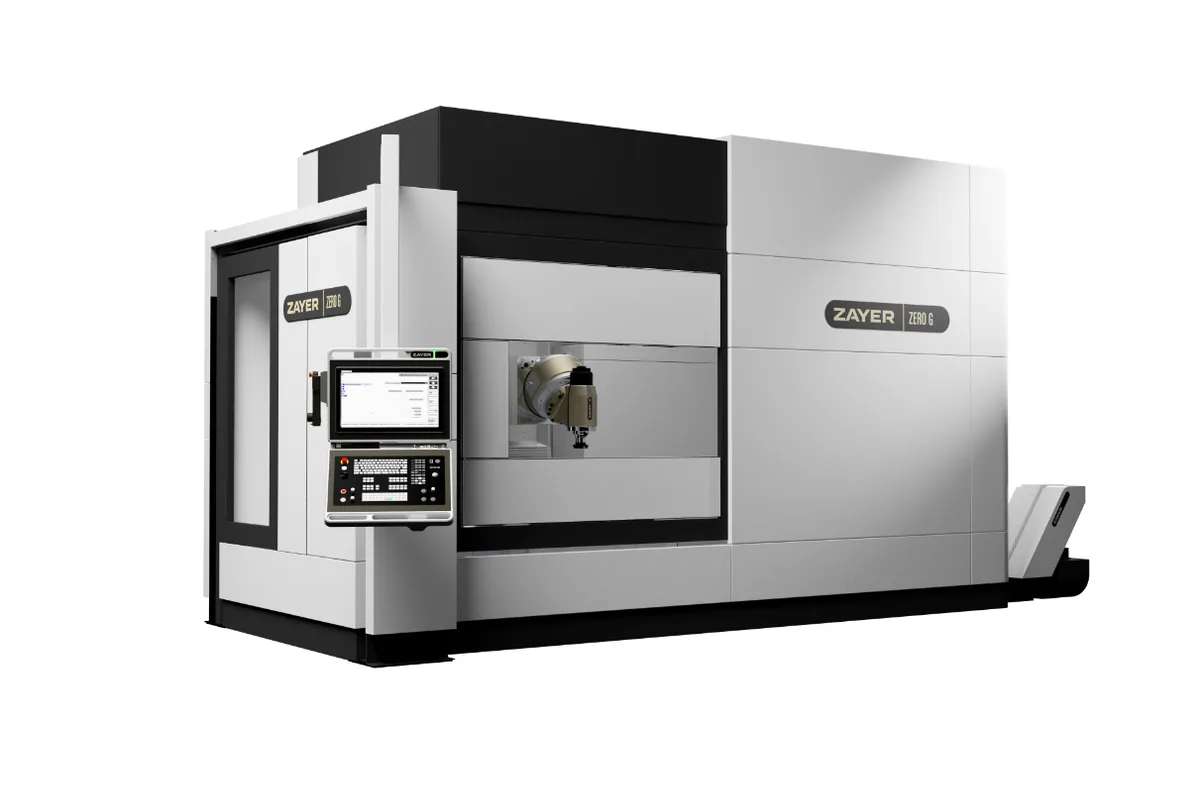

The Zayer ZERO G puts a rotary table on the ZERO bed type platform. Zayer lists it together with the ZERO G-MT on one page with a single specification table: a 1,500 x 1,250 mm (59.1 x 49.2 in) rotary table, 2,000 mm (78.7 in) of X travel, 1,200 mm (47.2 in) of Y and 1,600 mm (63.0 in) of Z.
This is the most compact machine in Zayer's bed type group. The ZERO starts at 3,000 mm (118.1 in) of X travel, and the XIOS G starts at 2,500 mm (98.4 in). The short stroke fits the job: a part sits on the rotary table and is turned to face the ram, so table rotation does much of the work a long longitudinal axis would do on a plain bed mill. The table carries 6,000 kg (13,228 lb), and the maximum distance from the table to the spindle nose is 1,345 mm (53.0 in).
Like its parent, it drives all three linear axes by ball screw and reaches 40,000 mm/min (1,575 ipm) rapid feed and 35,000 mm/min (1,378 ipm) working feed. The accuracy rows are unchanged too: 0.006/4,000 mm positioning and 0.004/4,000 mm repeatability. Power is 33 kW (44.3 hp), with the spindle head at 6,000 rpm or an optional 8,000 rpm.
Zayer marks the rotary table, a chip conveyor, the coolant tank and a complete enclosure with ceiling as standard. The head is a 45º automatic head; a continuous-rotation 45º head and a 30º head are options. The magazine holds 40 tools, or 60 as an option. The page does not say what the MT version adds, and it gives no rotary table speed, CNC or machine weight, so those points need to be confirmed with Zayer.
Full Specifications
| Parameter | Value |
|---|---|
| Rotary Table Size | 1,500 x 1,250 mm (59.1 x 49.2 in) |
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 1,600 mm (63.0 in) |
| Max Distance Table to Spindle Nose | 1,345 mm (53.0 in) |
| Rapid Traverse Rate | 40,000 mm/min (1,575 ipm) |
| Cutting Feed Rate | 35,000 mm/min (1,378 ipm) |
| Longitudinal Axis Drive | ball screw |
| Cross Axis Drive | ball screw |
| Vertical Axis Drive | ball screw |
| Power | 33 kW (44.3 hp) |
| Spindle Speed | 6,000 rpm; 8,000 rpm optional |
| Positioning Accuracy | 0.006/4,000 mm |
| Repeatability | 0.004/4,000 mm |
| Tool Capacity | 40; 60 optional |
| Max Table Load | 6,000 kg (13,228 lb) |
Specifications sourced from zayer.com — verified 2026-10-04
Strengths & Limitations
Strengths
- The 1,500 x 1,250 mm (59.1 x 49.2 in) rotary table is standard equipment, not an option
- Complete enclosure with ceiling is standard, where the ZERO has it as an option
- Ball screws on all three linear axes with 40,000 mm/min (1,575 ipm) rapid feed
- Positioning accuracy of 0.006/4,000 mm and repeatability of 0.004/4,000 mm
- 33 kW (44.3 hp), slightly more than the 30 kW (40.2 hp) of the ZERO
Limitations
- X travel is a single size, 2,000 mm (78.7 in), with no longer version listed
- Table load is 6,000 kg (13,228 lb), below the 10,000 kg (22,046 lb) of the ZERO
- Zayer's page does not explain the difference between the ZERO G and the ZERO G-MT
- No rotary table speed, CNC, spindle taper or machine weight is published
Best For
Frequently Asked Questions
01
The rotary table measures 1,500 x 1,250 mm (59.1 x 49.2 in) and is rated for 6,000 kg (13,228 lb). Zayer marks it as standard equipment. The maximum distance from the table to the spindle nose is 1,345 mm (53.0 in).
02
Zayer presents both names on one product page with one specification table, and that page does not state what separates them. The figures here, such as 2,000 mm (78.7 in) of X travel and 33 kW (44.3 hp), are the ones Zayer publishes for the pair. Ask Zayer which functions belong to the MT version.
03
The ZERO has a plain moving table 3,000 or 4,000 mm (118.1 or 157.5 in) long with matching X travel and a 10,000 kg (22,046 lb) load. The ZERO G replaces it with a rotary table and 2,000 mm (78.7 in) of X travel. Y, Z, rapid feed and the accuracy rows are the same on both.
04
Rapid feed is 40,000 mm/min (1,575 ipm) and working feed is 35,000 mm/min (1,378 ipm). Zayer gives one figure for the machine, not one per axis. All three linear axes are driven by ball screws.
05
The tool magazine holds 40 tools as standard, and a 60-tool magazine is optional. The spindle head runs at 6,000 rpm, or 8,000 rpm as an option.
