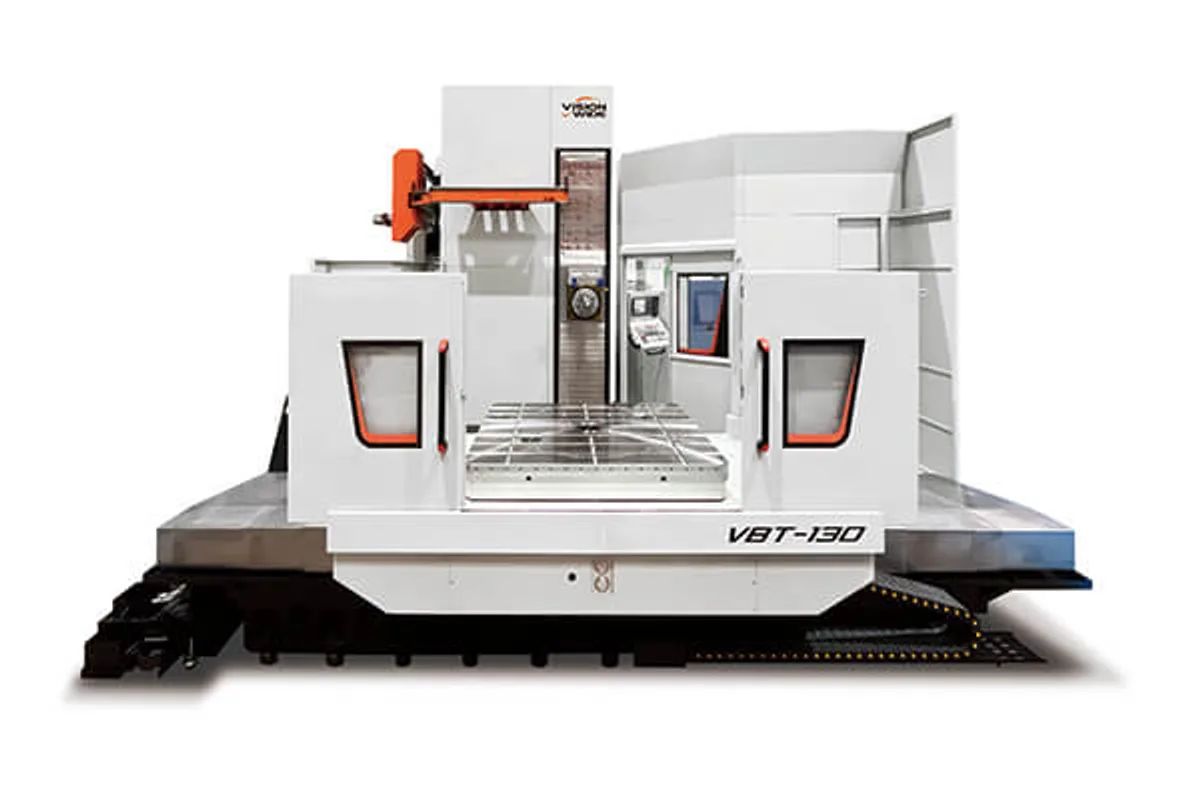

Vision Wide VBT-130-2530
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBT-130-2530 cost?
Price estimate
We do not have a price for the Vision Wide VBT-130-2530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At the top of the VBT series, the Vision Wide VBT-130-2530 takes 40,000 kg on its table as standard and 45,000 kg as an option. The table is 2,500 x 3,000 mm (98.4 x 118.1 in), and X travel is 4,500 mm, or 5,000 mm.
Vision Wide says its large boring mills are designed for large workpieces with heavy load ability, and that the large worktable serves energy and petroleum, shipbuilding, large structural parts, construction machinery and diesel engine bodies. This model is the one those words fit most literally. Its travels describe a block of space about five metres wide, three and a half high with the optional Y, and two and a half deep with the optional Z.
Read across the series, the step from the VBT-130-2525 is mostly sideways and upward. X gains a metre in both its standard and optional forms, and Y moves to 3,000 mm, or 3,500 mm. Z and the spindle stay the same.
That spindle is 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), with 700 mm (27.6 in) of W travel. The headstock rides a box way Y axis. The VBH-130-2530, described as box in box, is the alternative with the same figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,500 / 5,000 mm (177.2 / 196.9 in) (Opt.) |
| Y Axis Travel | 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) |
| Z Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 2,500 x 3,000 mm (98.4 x 118.1 in) |
| Max Table Load Central Area | 40,000 / 45,000 kg (88,183 / 99,206 lb) (Opt.) |
| Distance Spindle Nose to Table Center | 165~865~2,865 / 165~865~3,365 mm (6.5~34.1~112.8 / 6.5~34.1~132.5 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~3,000 / 0~3,500 mm (0~118.1 / 0~137.8 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table load of 40,000 kg, or 45,000 kg (99,206 lb) optional
- X travel of 4,500 mm, or 5,000 mm optional
- Y travel of 3,000 mm, or 3,500 mm optional, on box ways
- 2,500 x 3,000 mm (98.4 x 118.1 in) table
Limitations
- Z travel is no longer than on the VBT-130-2525
- Same 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) spindle as the smallest 130 model
- Machine weight, footprint and foundation data are not published
Best For
Frequently Asked Questions
01
The VBT-130-2530. It has a 2,500 x 3,000 mm (98.4 x 118.1 in) table, a load of 40,000 / 45,000 kg (88,183 / 99,206 lb) (Opt.) and X travel of 4,500 / 5,000 mm (177.2 / 196.9 in) (Opt.).
02
Vision Wide names energy petroleum, shipbuilding, large structural parts, construction machinery and diesel engine bodies as applications of the series' large worktable.
03
The VBT-130-2525 has a 2,500 x 2,500 mm (98.4 x 98.4 in) table and X travel of 3,500 mm, or 4,000 mm optional. The VBT-130-2530 has a 2,500 x 3,000 mm (98.4 x 118.1 in) table, 4,500 mm of X and 3,000 mm of Y as standard.
04
Y is 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) and Z is 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.). The W axis travels 700 mm (27.6 in).
