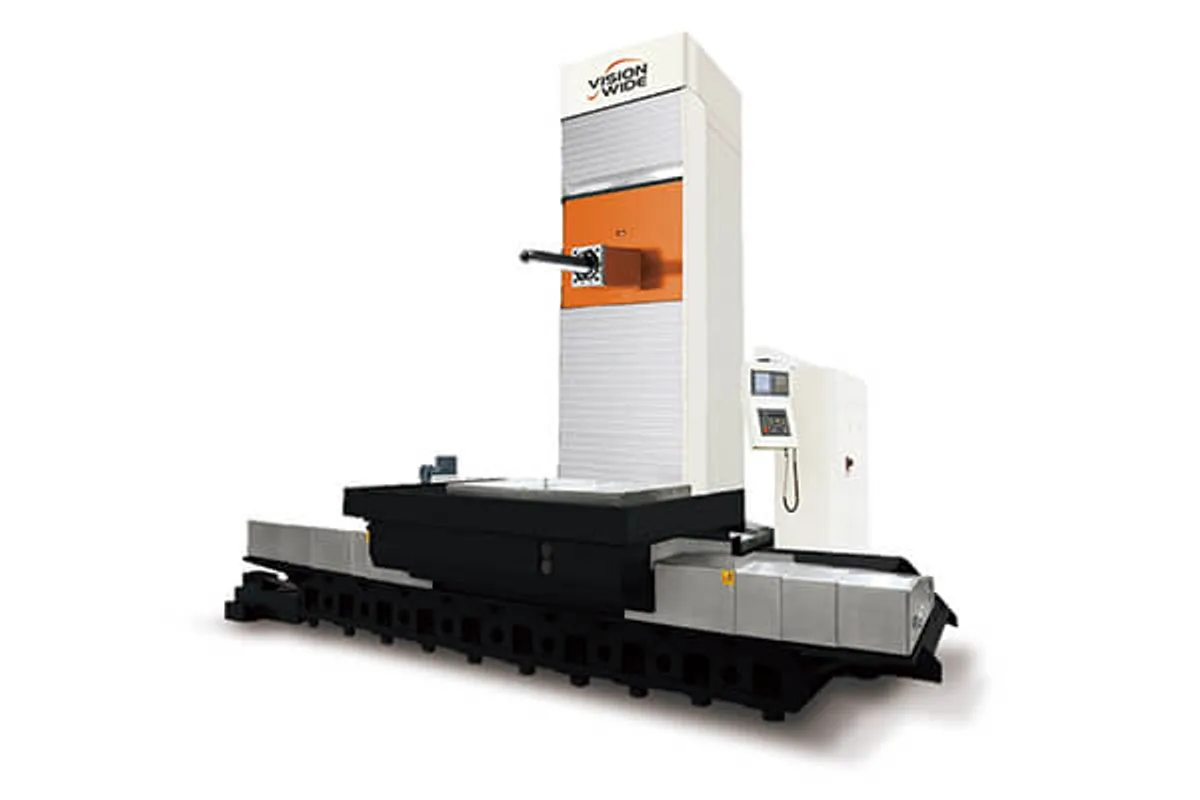

Vision Wide VBH-130-2025
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-130-2025 cost?
Price estimate
We do not have a price for the Vision Wide VBH-130-2025 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Energy, shipbuilding and engine work are the markets Vision Wide names for its large boring mills, and the Vision Wide VBH-130-2025 is sized for them. Its table is 2,000 x 2,500 mm (78.7 x 98.4 in), with a load of 20,000 kg as standard and 30,000 kg as an option.
The maker's wording is that the large worktable meets the machining applications of energy petroleum, shipbuilding, large structural parts, construction machinery and diesel engine bodies. What those have in common is weight concentrated on a few machined faces and bores: a marine diesel block, a wellhead body, a slewing frame. Thirty tonnes on the table with 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) at the spindle is a combination that fits them.
Travels match the VBH-130-1822: X of 3,000 mm, or 3,500 mm; Y of 2,500 mm, or 3,000 mm; Z of 1,500 mm, or 2,000 mm. The W axis is 700 mm (27.6 in). What this model adds is table area and the higher load option.
The structure is box in box. Spindle speed is 3,000 rpm and power 22 / 30 kW (29.5 / 40.2 hp). The specification table for the VBT-130-2025 is the same; that series is described with a Y-axis box way structure.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) |
| Y Axis Travel | 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 2,000 x 2,500 mm (78.7 x 98.4 in) |
| Max Table Load Central Area | 20,000 / 30,000 kg (44,092 / 66,138 lb) (Opt.) |
| Distance Spindle Nose to Table Center | 60~760~2,260 / 60~760~2,760 mm (2.4~29.9~89.0 / 2.4~29.9~108.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table load of 20,000 kg, or 30,000 kg (66,138 lb) as an option
- 2,000 x 2,500 mm (78.7 x 98.4 in) table
- 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) spindle on a box in box structure
- Named by the maker for energy, shipbuilding and diesel engine work
Limitations
- Travels are no longer than on the smaller VBH-130-1822
- The 30,000 kg rating is an option
- No information on controls, feeds or tooling on the page
Best For
Frequently Asked Questions
01
Vision Wide says the large worktable meets the machining applications of energy petroleum, shipbuilding, large structural parts, construction machinery and diesel engine bodies. The table takes 20,000 kg, or 30,000 kg with the option.
02
2,000 x 2,500 mm (78.7 x 98.4 in), with a central-area load of 20,000 / 30,000 kg (44,092 / 66,138 lb) (Opt.).
03
Travels and spindle are the same. The VBH-130-1822 has a 1,800 x 2,200 mm (70.9 x 86.6 in) table for 20,000 kg (44,092 lb); the VBH-130-2025 has a 2,000 x 2,500 mm (78.7 x 98.4 in) table with a 30,000 kg option.
04
3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft). The W-axis travel is 700 mm (27.6 in).
