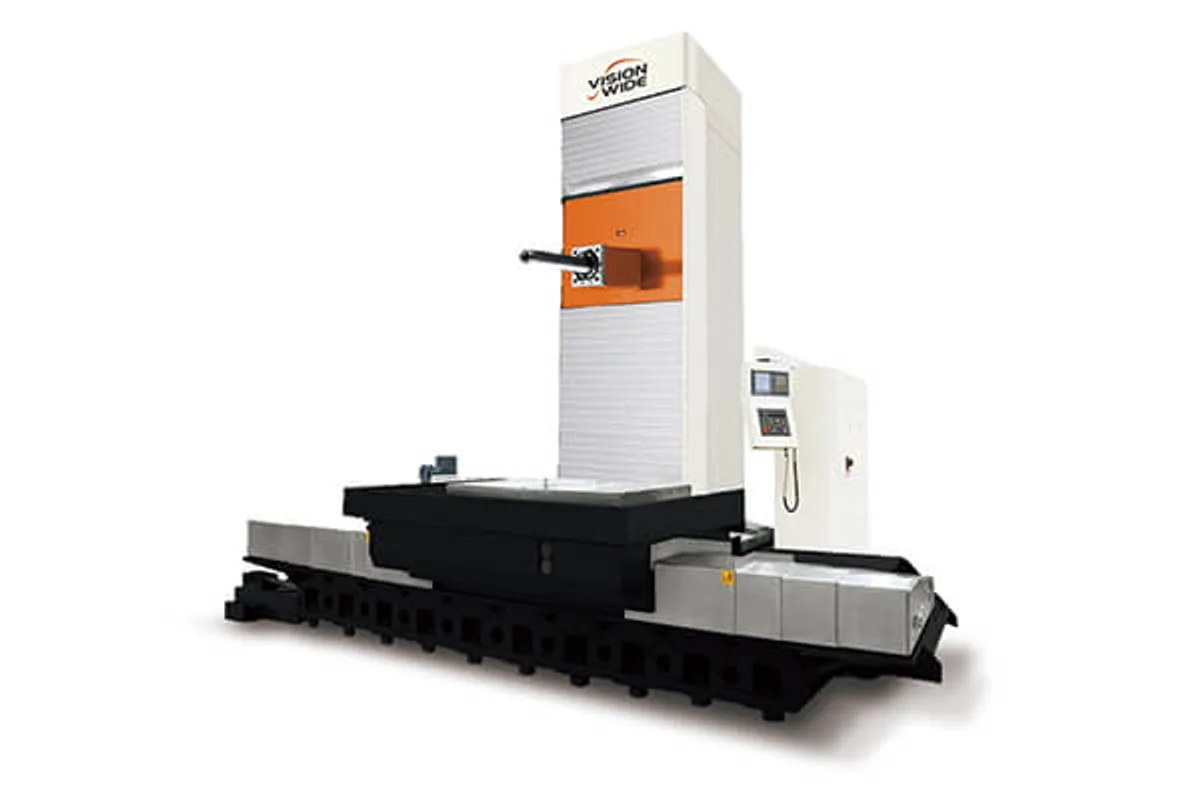

Vision Wide VBH-130-1822
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-130-1822 cost?
Price estimate
We do not have a price for the Vision Wide VBH-130-1822 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VBH-130-1822 moves the series up a frame size. X travel is 3,000 mm, with 3,500 mm as an option, and Y travel 2,500 mm, with 3,000 mm as an option; the smaller VBH-130-1618 lists 2,000 mm and 2,500 mm for both.
Its table is 1,800 x 2,200 mm (70.9 x 86.6 in) and carries 20,000 kg (44,092 lb) in the central area. Unusually for this series, the load row has a single figure and no optional rating.
The two distance rows show the reach. Spindle center to table surface runs 0~2,500 mm, or 0~3,000 mm with the long Y: the spindle can come right down to table level and rise to the top of the Y stroke. Spindle nose to table center is given as 60~760~2,260 mm, or to 2,760 mm with the long Z. The lowest of those values, 60 mm, says the nose can be brought almost to the centre of the table with the W axis out, so a bore on the table's centreline is reachable without a long bar.
Z travel is 1,500 mm with 2,000 mm optional. The spindle is the 130 class: 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp), 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft). The VBT-130-1822 prints the same table of figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) |
| Y Axis Travel | 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,800 x 2,200 mm (70.9 x 86.6 in) |
| Max Table Load Central Area | 20,000 kg (44,092 lb) |
| Distance Spindle Nose to Table Center | 60~760~2,260 / 60~760~2,760 mm (2.4~29.9~89.0 / 2.4~29.9~108.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- X travel of 3,000 mm, or 3,500 mm optional
- Y travel of 2,500 mm, or 3,000 mm optional, with the spindle reaching table level
- 20,000 kg (44,092 lb) on a 1,800 x 2,200 mm (70.9 x 86.6 in) table
- Spindle nose reaches close to the table centre with the W axis extended
Limitations
- No optional higher table load on this size
- Long X, Y and Z strokes are options
- Feeds, rapids and tool magazine are not published
Best For
Frequently Asked Questions
01
X 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.), Y 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.), Z 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) and W 700 mm (27.6 in).
02
The row for spindle nose to table center reads 60~760~2,260 / 60~760~2,760 mm (2.4~29.9~89.0 / 2.4~29.9~108.7 in) (Opt.). The three values mark the nose position with the W axis and Z axis at their limits.
03
20,000 kg (44,092 lb) in the central area. The table measures 1,800 x 2,200 mm (70.9 x 86.6 in). No optional rating is listed for this size.
04
Spindle center to table surface is 0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.), matching the standard and optional Y travel.
