DN Solutions DBC 130 S

Est. $500,000 - $750,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

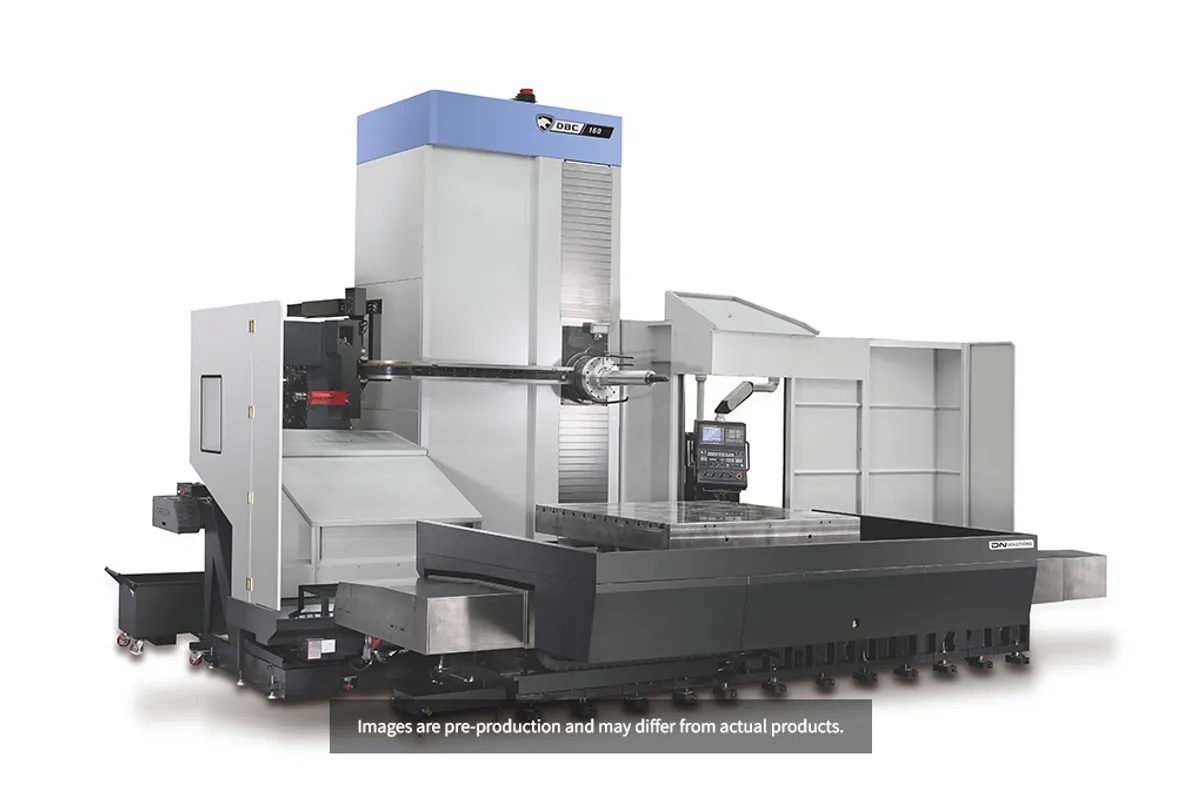

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

2,000 mm (79 in)

Y Travel

1,500 mm (59 in)

Z Travel

1,200 mm (47 in)

Max Spindle

2,500 rpm

Spindle Taper

ISO 50

Table Size

1,600 × 1,400 mm (63 × 55 in)

How much does the DN Solutions DBC 130 S cost?

Estimated price range

Est.$500,000 - $750,000

Our best estimate for a cnc boring machine in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions DBC 130 S puts the heaviest motor of the DBC 130 horizontal boring mills on the shortest travels: 37 kW (50 hp) and 3,028 N·m (2,233 ft-lb) through an ISO 50 spindle, working inside 2,000 mm (79 in) of X, 1,500 mm (59 in) of Y and 1,200 mm (47 in) of Z. The table measures 1,600 × 1,400 mm (63 × 55 in) and is rated for 8,000 kg (17,637 lb).

The spindle is the whole difference from the DBC 110 S, which has the same three travels, the same table size and the same 12 m/min (472 ipm) rapid traverse. The DBC 110 S is listed at 26 kW (35 hp) and 1,104 N·m (814 ft-lb), so the DBC 130 S delivers about 2.7 times the torque. The cost of that gearing is top speed. This machine stops at 2,500 rpm where the DBC 110 S reaches 3,000 rpm, which suits large boring bars, face mills and big drills in steel and cast iron far better than small cutters.

Set against the DBC 130 II, the trade runs the other way. The DBC 130 II is the larger machine, with 3,000 mm (118 in) of X, 2,000 mm (79 in) of Y, 1,600 mm (63 in) of Z and a 1,800 × 1,600 mm (71 × 63 in) table that takes 15,000 kg (33,069 lb), but its motor is 26 kW (35 hp) and its rapid traverse 10 m/min (394 ipm). A shop whose parts fit the smaller envelope gets more spindle power and quicker positioning from the S, and gives up roughly half the table load.

Short travels do not make it a small installation. The machine weighs 30,000 kg (66,139 lb) and DN Solutions gives its outline as 5,540 × 5,930 × 4,440 mm (218 × 233 × 175 in), length by width by height, so foundation, crane capacity and roof clearance all need checking early. DN describes the series as having a servo-driven automatic tool changer. The table for this model does not state how many tools it holds, which control is fitted or what coolant system is supplied.

Full Specifications

Parameter	Value
X-Axis Travel	2,000 mm (79 in)
Y-Axis Travel	1,500 mm (59 in)
Z-Axis Travel	1,200 mm (47 in)
Rapid Traverse Rate	12 m/min (472 ipm)
Max Spindle Speed	2,500 rpm
Spindle Motor Power	37 kW (50 hp)
Spindle Torque	3,028 N·m (2,233 ft-lb)
Spindle Taper	ISO 50
Table Size	1,600 × 1,400 mm (63 × 55 in)
Max Table Load	8,000 kg (17,637 lb)
Floor Space Required	5,540 × 5,930 × 4,440 mm (218 × 233 × 175 in)
Machine Weight	30,000 kg (66,139 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

37 kW (50 hp) spindle motor, against the 26 kW (35 hp) listed for both the DBC 110 S and the larger DBC 130 II
3,028 N·m (2,233 ft-lb) of spindle torque on an ISO 50 taper, about 2.7 times the 1,104 N·m (814 ft-lb) of the DBC 110 S with identical travels
12 m/min (472 ipm) rapid traverse, where the DBC 130 II is listed at 10 m/min (394 ipm)
8,000 kg (17,637 lb) table load on a 1,600 × 1,400 mm (63 × 55 in) table, above the 7,000 kg (15,432 lb) of the DBC 110 S
Servo-driven automatic tool changer, which DN Solutions lists as a feature of the DBC series

Limitations

Maximum spindle speed is 2,500 rpm; the DBC 110 S and DBC 130 II both reach 3,000 rpm, so small tools run below their best surface speed
Table load of 8,000 kg (17,637 lb) is about half the 15,000 kg (33,069 lb) of the DBC 130 II
Z travel is 1,200 mm (47 in) and Y is 1,500 mm (59 in); taller or deeper parts need the DBC 130 II with 2,000 mm (79 in) of Y and 1,600 mm (63 in) of Z
The table for this model gives no tool magazine capacity, control or coolant details, so those must be confirmed with DN Solutions

Best For

Heavy boring and face milling in steel and cast iron at up to 3,028 N·m (2,233 ft-lb) Castings and weldments up to 8,000 kg (17,637 lb) that fit a 1,600 × 1,400 mm table Shops that want 37 kW (50 hp) without the floor area of a long-travel boring mill Large-diameter ISO 50 tooling run below 2,500 rpm

Frequently Asked Questions

01 What is the difference between the DBC 130 S and the DBC 110 S?

Only the spindle and the load ratings. Both have 2,000 × 1,500 × 1,200 mm travels, a 1,600 × 1,400 mm (63 × 55 in) table and 12 m/min (472 ipm) rapids. The DBC 110 S is listed at 26 kW (35 hp), 1,104 N·m (814 ft-lb) and 3,000 rpm with a 7,000 kg (15,432 lb) table load. The DBC 130 S is listed at 37 kW (50 hp), 3,028 N·m (2,233 ft-lb) and 2,500 rpm with 8,000 kg (17,637 lb).

02 How does the DBC 130 S compare with the DBC 130 II?

The DBC 130 II is longer in every axis, at 3,000 mm (118 in), 2,000 mm (79 in) and 1,600 mm (63 in), and its table carries 15,000 kg (33,069 lb) against 8,000 kg (17,637 lb) here. The DBC 130 S has the stronger motor, 37 kW (50 hp) against the 26 kW (35 hp) of the DBC 130 II, and faster rapids. Torque is close: 3,028 N·m on the S and 3,383 N·m (2,495 ft-lb) on the DBC 130 II.

03 How heavy a workpiece can the DBC 130 S take?

The table is rated for 8,000 kg (17,637 lb) and measures 1,600 × 1,400 mm (63 × 55 in). Fixtures, angle plates and clamping count against that figure. If the part and its tooling come close to the limit, the DBC 130 II with its 15,000 kg (33,069 lb) table is the next step.

04 What does the DBC 130 S need on the shop floor?

DN Solutions lists the machine at 5,540 mm long, 5,930 mm wide and 4,440 mm high (218 × 233 × 175 in), with a weight of 30,000 kg (66,139 lb). Check the foundation design, the lifting capacity available for unloading and the door and roof height against those figures. Electrical and air requirements are not in the table and have to be requested.

05 Is the DBC 130 S suitable for small tools and light alloys?

It will run them, but it is not geared for them. The ISO 50 spindle tops out at 2,500 rpm, and the 37 kW (50 hp) and 3,028 N·m (2,233 ft-lb) ratings are aimed at big cutters at low speed. Work that depends on higher spindle speed is better matched to the DBC 110 II, which is listed at 4,000 rpm with 26 kW (35 hp).
