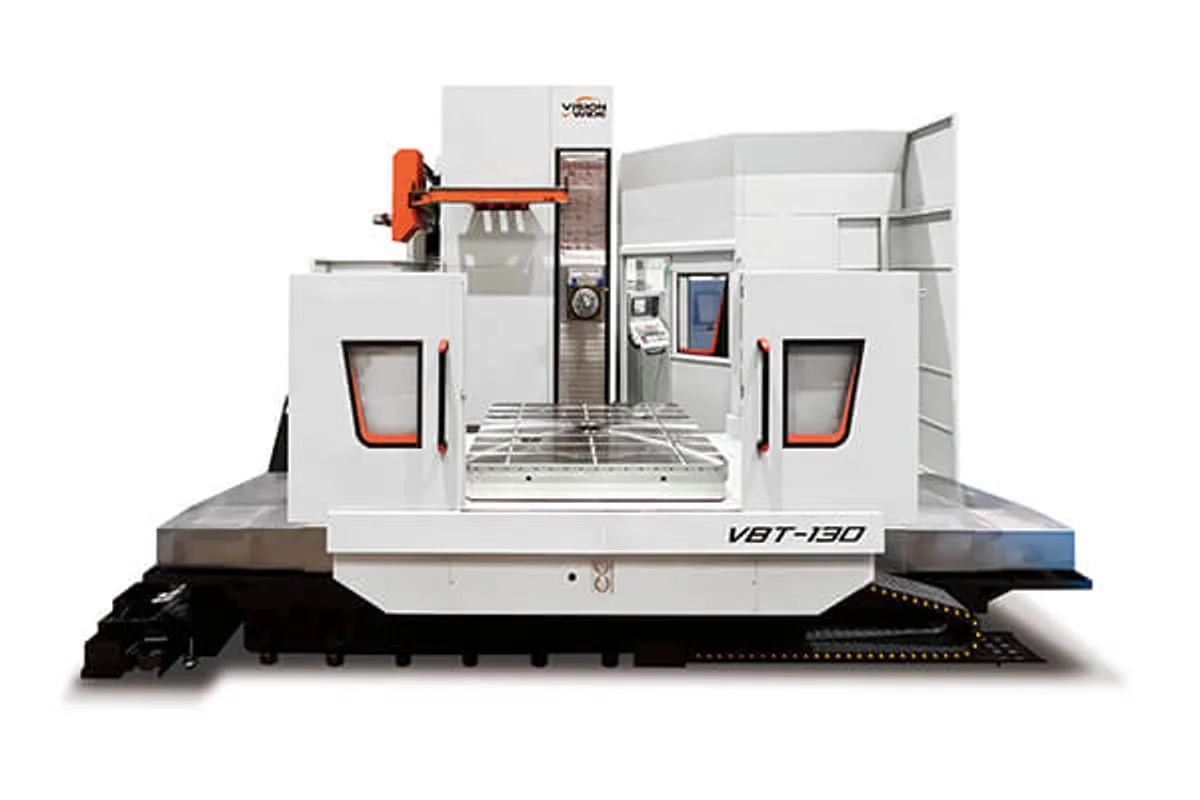

Vision Wide VBT-130-1618
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBT-130-1618 cost?
Price estimate
We do not have a price for the Vision Wide VBT-130-1618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Depth is the dimension the Vision Wide VBT-130-1618 extends. Z travel is 1,500 mm with 2,000 mm as an option, and the W-axis spindle adds 700 mm (27.6 in) of its own.
The row for spindle nose to table center shows what that does: -40~660~2,160 mm with the standard Z, and out to 2,660 mm with the longer one. The negative figure means the nose can pass just beyond the table centre. The largest figure is how far the nose can stand back, which sets the longest part, or the longest boring bar and tool, that fits between spindle and table centre.
A long Z matters for parts that must be bored from both ends by turning the table, and for those too deep to bore through in one reach. With two metres of Z the column can back away far enough to clear a large part as the table turns it. Whether the table indexes or rotates is not stated on the page and has to be asked.
The table is 1,600 x 1,800 mm (63.0 x 70.9 in) with a load of 15,000 kg, or 20,000 kg (44,092 lb) optionally. Spindle figures are 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft). The Y axis is a box way design. A VBH-130-1618 exists with the same figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load Central Area | 15,000 / 20,000 kg (33,069 / 44,092 lb) (Opt.) |
| Distance Spindle Nose to Table Center | -40~660~2,160 / -40~660~2,660 mm (-1.6~26.0~85.0 / -1.6~26.0~104.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,000 / 0~2,500 mm (0~78.7 / 0~98.4 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Z travel of 1,500 mm, or 2,000 mm as an option, plus 700 mm (27.6 in) of W
- Spindle nose can pass the table centre
- Table load of 15,000 kg, or 20,000 kg (44,092 lb) optional
- 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) spindle
Limitations
- The 2,000 mm Z travel is an option
- Table indexing or rotation is not described on the page
- No rapid traverse figures to judge repositioning time
Best For
Frequently Asked Questions
01
1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.): 1,500 mm standard and 2,000 mm optional. The W axis adds 700 mm (27.6 in) of spindle travel.
02
-40~660~2,160 / -40~660~2,660 mm (-1.6~26.0~85.0 / -1.6~26.0~104.7 in) (Opt.). The second range applies with the optional Z travel.
03
Both are listed as 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), so each is 2,000 mm standard with 2,500 mm as an option.
04
The tables of figures are identical. Vision Wide's text describes a Y-axis box way structure design for the VBT and a box in box structure for the VBH.
