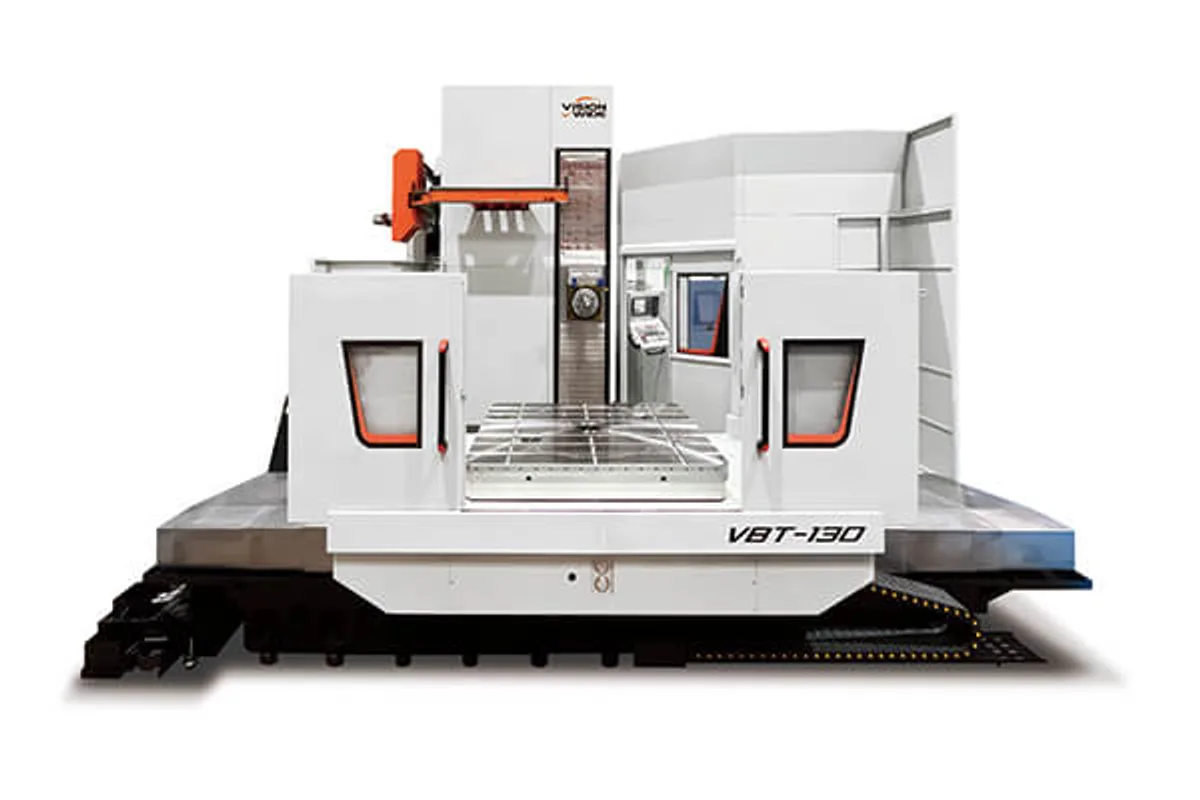

Vision Wide VBT-130-1822
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBT-130-1822 cost?
Price estimate
We do not have a price for the Vision Wide VBT-130-1822 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VBT-130-1822 has a 1,800 x 2,200 mm (70.9 x 86.6 in) table rated for 20,000 kg (44,092 lb) and X travel of 3,000 mm, with 3,500 mm as an option. It is the first VBT on the longer bed.
Before anything else, a buyer should know how little the maker publishes for this series. The table has eleven rows: four travels, the table and its load, two spindle-to-table distances, and spindle speed, power and torque. There is no rapid traverse, no cutting feed, no tool magazine, no spindle taper or diameter, no control and no accuracy. The page lists four feature statements and no accessories. Everything else has to be requested, and a comparison with another machine cannot be completed from the website alone.
What is given is solid enough to size the machine. Y travel is 2,500 mm, or 3,000 mm, with the spindle centre starting at table level. Z is 1,500 mm, or 2,000 mm. W is 700 mm (27.6 in). The spindle delivers 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) from 22 / 30 kW (29.5 / 40.2 hp) at up to 3,000 rpm.
The structure is described as a Y-axis box way design. The VBH-130-1822 has the same eleven rows and a box in box structure.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) |
| Y Axis Travel | 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,800 x 2,200 mm (70.9 x 86.6 in) |
| Max Table Load Central Area | 20,000 kg (44,092 lb) |
| Distance Spindle Nose to Table Center | 60~760~2,260 / 60~760~2,760 mm (2.4~29.9~89.0 / 2.4~29.9~108.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 20,000 kg (44,092 lb) on a 1,800 x 2,200 mm (70.9 x 86.6 in) table
- X travel of 3,000 mm, or 3,500 mm optional
- Y travel of 2,500 mm, or 3,000 mm optional
- 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) of spindle torque
Limitations
- No rapid traverse, feed, tool magazine, taper, control or accuracy data is published
- The page lists no standard or optional accessories
- Only one table load rating at this size
Best For
Frequently Asked Questions
01
Travels, table size and load, two spindle-to-table distances, and spindle speed, power and torque. Feeds, rapids, tool magazine, taper, control and accuracy are not on the page.
02
X 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.), Y 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.), Z 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.), W 700 mm (27.6 in).
03
A 3,000 rpm spindle with 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft). The page does not state its diameter or taper.
04
In the published figures, yes: all eleven rows match. The VBT is described with a Y-axis box way structure design, the VBH with a box in box structure.
