KRC HBM-13T

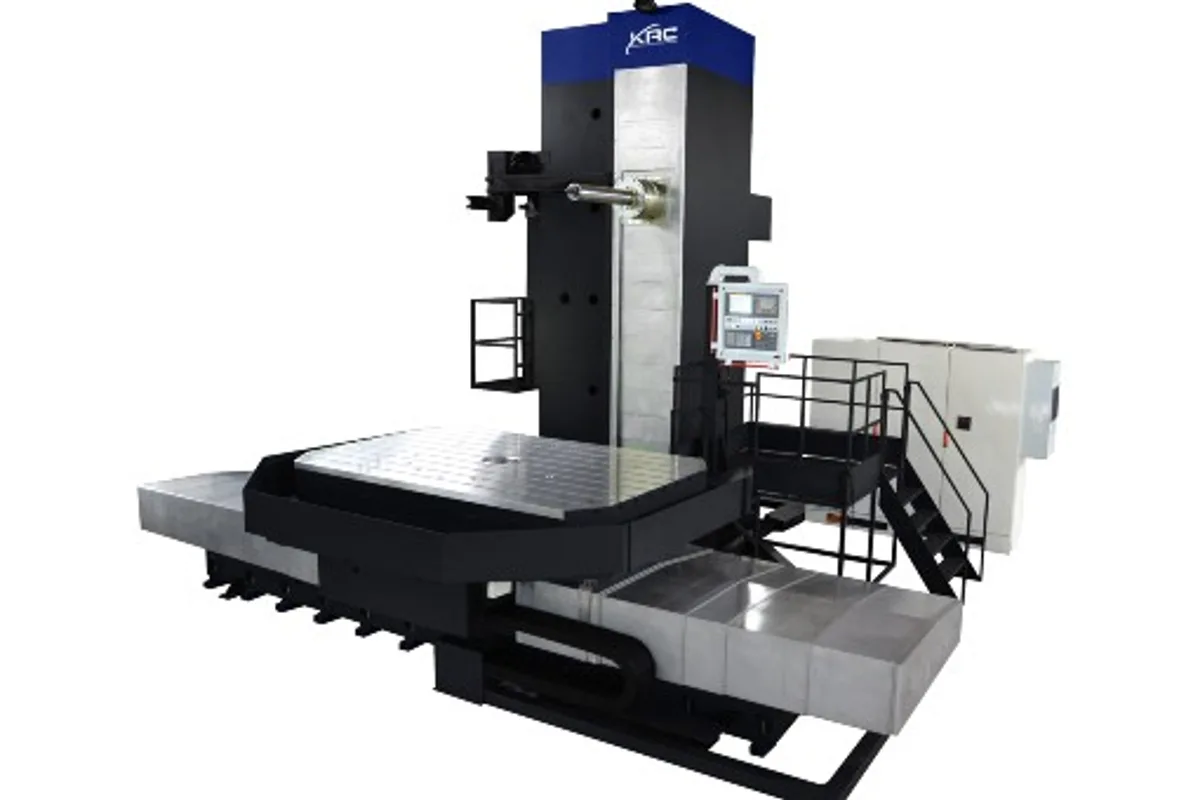

Image: krcmachinetoolsolutions.com, KRC
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
boring spindle diameter
spindle torque
How much does the KRC HBM-13T cost?
Price estimate
We do not have a price for the KRC HBM-13T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The KRC HBM-13T is the smaller of two table-type horizontal boring mills in KRC's HBM Series. Its 130 mm (5 in) boring spindle turns at up to 4,000 rpm, and the work rides on a 1,250 mm (49 in) x 1,600 mm (62 in) table that travels 2,000 mm (78.7 in) in X.
On a table-type machine the part does the long move. The table provides X, the spindle head climbs the column for 1,600 mm (63 in) of Y, and the column itself feeds 1,250 mm (49 in) toward the work in Z. The boring spindle adds 750 mm (29.5 in) of W travel. Table load is 10,000 kg (22,020 lb), and KRC prints the same size and load again in its rotary table rows.
Spindle power is listed as 37 kW (50 HP) / 46 kW (62 HP) with 2,500 Nm (1,844 ft-lb) / 3,100 Nm (2,286 ft-lb) of maximum torque through an ISO 50 taper. Those are modest numbers beside the HBM-16T, which lists 4,150 Nm (3,061 ft-lb) / 5,500 Nm (4,057 ft-lb). They point this machine at boring, drilling and milling of medium-sized housings and frames rather than heavy roughing.
Quick positioning is the other half of its character. X, Y and Z rapids are 20,000 mm/min (787 ipm), with 25,000 mm/min (984 ipm) offered as an increased rate; W moves at 10,000 mm/min (394 ipm). KRC describes hydrostatic guideways and a hydraulic counterbalance for the series and says all models can be configured with different heads, control systems and travels.
Full Specifications
| Parameter | Value |
|---|---|
| Boring Spindle Diameter | 130 mm (5 in) |
| Spindle Taper | ISO 50 |
| Max Spindle Speed | 4,000 rpm |
| Spindle Motor Power | 37 kW (50 HP) / 46 kW (62 HP) |
| Spindle Torque | 2,500 Nm (1,844 ft-lb) / 3,100 Nm (2,286 ft-lb) |
| X Axis Travel | 2,000 mm (78.7 in) (table travel) |
| Y Axis Travel | 1,600 mm (63 in) (spindle head travel) |
| Z Axis Travel | 1,250 mm (49 in) (column travel) |
| W Axis Travel | 750 mm (29.5 in) (boring spindle travel) |
| Rapid Traverse Xyz | 20,000 mm/min (787 ipm) |
| Rapid Traverse Xyz Increased | 25,000 mm/min (984 ipm) |
| Rapid Traverse W | 10,000 mm/min (394 ipm) |
| Table Size | 1,250 mm (49 in) x 1,600 mm (62 in) |
| Max Table Load | 10,000 kg (22,020 lb) |
| Rotary Table Size | 1,250 mm (49 in) x 1,600 mm (62 in) |
| Rotary Table Max Load | 10,000 kg (22,020 lb) |
Specifications sourced from krcmachinetoolsolutions.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 rpm spindle, faster than the 3,150 rpm of the HBM-16T
- Rapids of 20,000 mm/min (787 ipm) on X, Y and Z, with 25,000 mm/min (984 ipm) available as an increased rate
- Four axes of reach on a compact frame: 2,000 mm (78.7 in), 1,600 mm (63 in), 1,250 mm (49 in) and 750 mm (29.5 in) on X, Y, Z and W
- Rotary table of 1,250 mm (49 in) x 1,600 mm (62 in) for four-sided work in one clamping
Limitations
- Table load is limited to 10,000 kg (22,020 lb), half the 20,000 kg (44,040 lb) of the HBM-16T
- Maximum torque of 2,500 Nm (1,844 ft-lb) / 3,100 Nm (2,286 ft-lb) rules out the heaviest face milling and large-bar roughing
- Boring spindle travel is 750 mm (29.5 in), so deep bores depend on the column Z travel as well
- The faster 25,000 mm/min (984 ipm) rapids are an option, not the base rate
Best For
Frequently Asked Questions
01
The table measures 1,250 mm (49 in) x 1,600 mm (62 in) and carries 10,000 kg (22,020 lb). Travels are 2,000 mm (78.7 in) in X, 1,600 mm (63 in) in Y and 1,250 mm (49 in) in Z, with 750 mm (29.5 in) of boring spindle travel on W. The part has to swing inside those travels when the rotary table indexes.
02
The 130 mm (5 in) boring spindle runs to 4,000 rpm with an ISO 50 taper. Power is listed as 37 kW (50 HP) / 46 kW (62 HP) and maximum torque as 2,500 Nm (1,844 ft-lb) / 3,100 Nm (2,286 ft-lb). KRC does not label the two values of each pair.
03
The HBM-16T is one size larger: a 165 mm (6.5 in) spindle at 3,150 rpm, a 1,600 mm (63 in) x 2,000 mm (78 in) table for 20,000 kg (44,040 lb) and 2,500 mm (98 in) of X travel. The HBM-13T has the smaller spindle and table but the higher speed, 4,000 rpm, and faster standard rapids, 20,000 mm/min (787 ipm).
04
X, Y and Z move at 20,000 mm/min (787 ipm) as standard. KRC lists an increased rapid rate of 25,000 mm/min (984 ipm) for the same three axes. The boring spindle axis, W, moves at 10,000 mm/min (394 ipm) in either case.
