Vision Wide VBE-110-1416

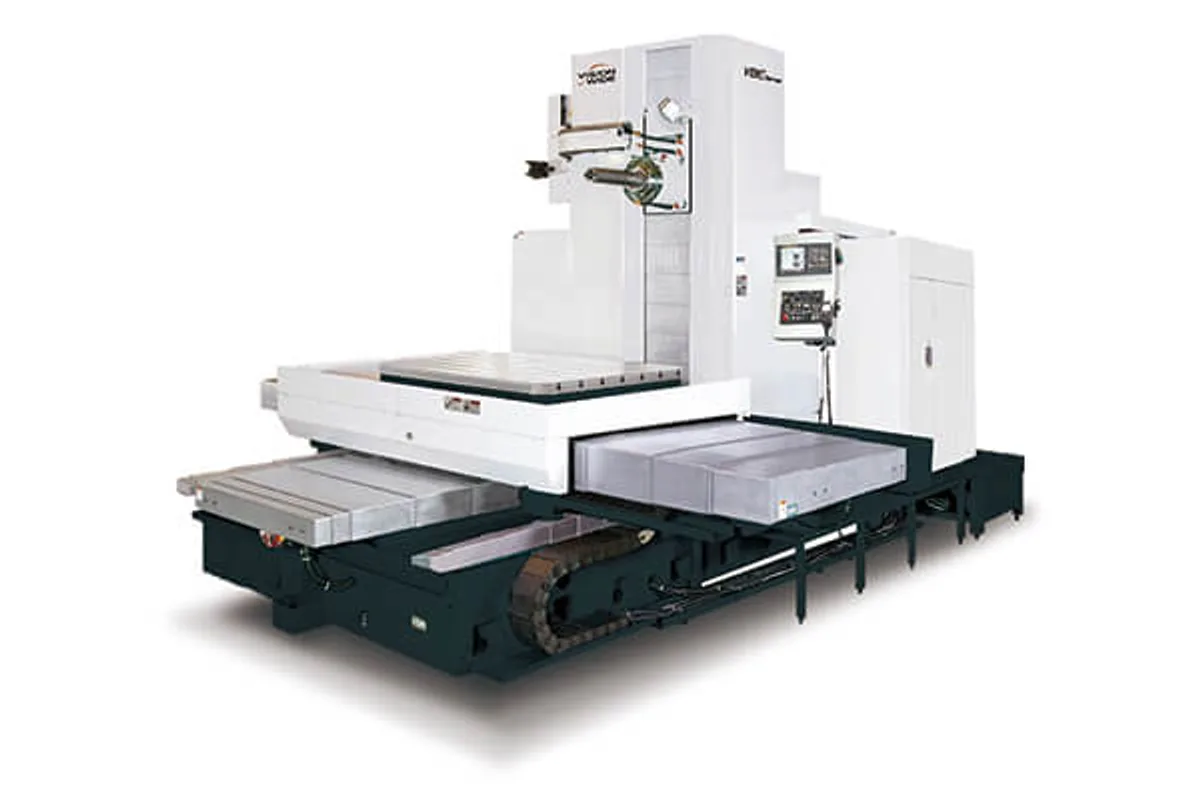

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBE-110-1416 cost?
Price estimate
We do not have a price for the Vision Wide VBE-110-1416 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Vision Wide VBE-110-1416 the table grows to 1,400 x 1,600 mm (55.1 x 63.0 in) and the load rating to 8,000 kg (17,637 lb) in the central area, making it the larger of the two VBE horizontal boring and milling machines.
X travel is 2,000 mm (78.7 in) and Y is 1,600 mm (63.0 in). Z stays at 1,300 mm (51.2 in) and the W axis at 550 mm (21.7 in), the same as on the VBE-110-1250, so what the bigger model adds is width and height of reach, not depth. The clearance rows move accordingly. Spindle center to table surface is 0~1,600 mm (0~63.0 in), and spindle nose to table center is -40~510~1,810 mm (-1.6~20.1~71.3 in).
The spindle does not change with the size. It is listed at 3,500 rpm, 18.5 / 22 kW (24.8 / 29.5 hp) and 972 / 1,155 Nm (717 / 852 lb-ft). On an 8,000 kg (17,637 lb) table that is a modest motor, and a shop cutting large steel weldments all day should check the torque against its heaviest boring and face milling operations.
Construction follows the series description: fixed column, cross slider with full support, box way guides on X, Y and Z, and an X axis carried on two box ways plus two linear guides. Vision Wide's VHT-1416 uses the same table size and load rating with a 6,000 rpm spindle, for work that is more milling than boring.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| W Axis Travel | 550 mm (21.7 in) |
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| Max Table Load Central Area | 8,000 kg (17,637 lb) |
| Distance Spindle Nose to Table Center | -40~510~1,810 mm (-1.6~20.1~71.3 in) |
| Distance Spindle Center to Table Surface | 0~1,600 mm (0~63.0 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Power Cont 30 Min | 18.5 / 22 kW (24.8 / 29.5 hp) |
| Spindle Torque Cont 30 Min | 972 / 1,155 Nm (717 / 852 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 8,000 kg (17,637 lb) central-area table load
- 1,400 x 1,600 mm (55.1 x 63.0 in) table with 2,000 mm (78.7 in) of X and 1,600 mm (63.0 in) of Y travel
- Spindle center reaches 0~1,600 mm (0~63.0 in) above the table surface
- 972 / 1,155 Nm (717 / 852 lb-ft) spindle torque
- W axis of 550 mm (21.7 in)
Limitations
- Same 18.5 / 22 kW (24.8 / 29.5 hp) spindle as the smaller VBE-110-1250
- Z travel of 1,300 mm (51.2 in) does not increase with the table
- 3,500 rpm maximum; the VHT-1416 runs to 6,000 rpm on the same table size
- Feed, rapid and tool magazine data are not in the published table
Best For
Frequently Asked Questions
01
8,000 kg (17,637 lb), specified for the central area of the 1,400 x 1,600 mm (55.1 x 63.0 in) table. The smaller VBE-110-1250 is rated for 5,000 kg (11,023 lb).
02
X travel is 2,000 mm (78.7 in), Y is 1,600 mm (63.0 in), Z is 1,300 mm (51.2 in) and W is 550 mm (21.7 in). The spindle center can be positioned 0~1,600 mm (0~63.0 in) from the table surface.
03
No. Both models list a spindle speed of 3,500 rpm, spindle power of 18.5 / 22 kW (24.8 / 29.5 hp) and spindle torque of 972 / 1,155 Nm (717 / 852 lb-ft). Only the travels, table and load rating differ.
04
Vision Wide describes a fixed column and a cross slider structure with full support. The X axis has four guide ways, two box ways and two linear guides, and the X, Y and Z guides are designed with box way.
