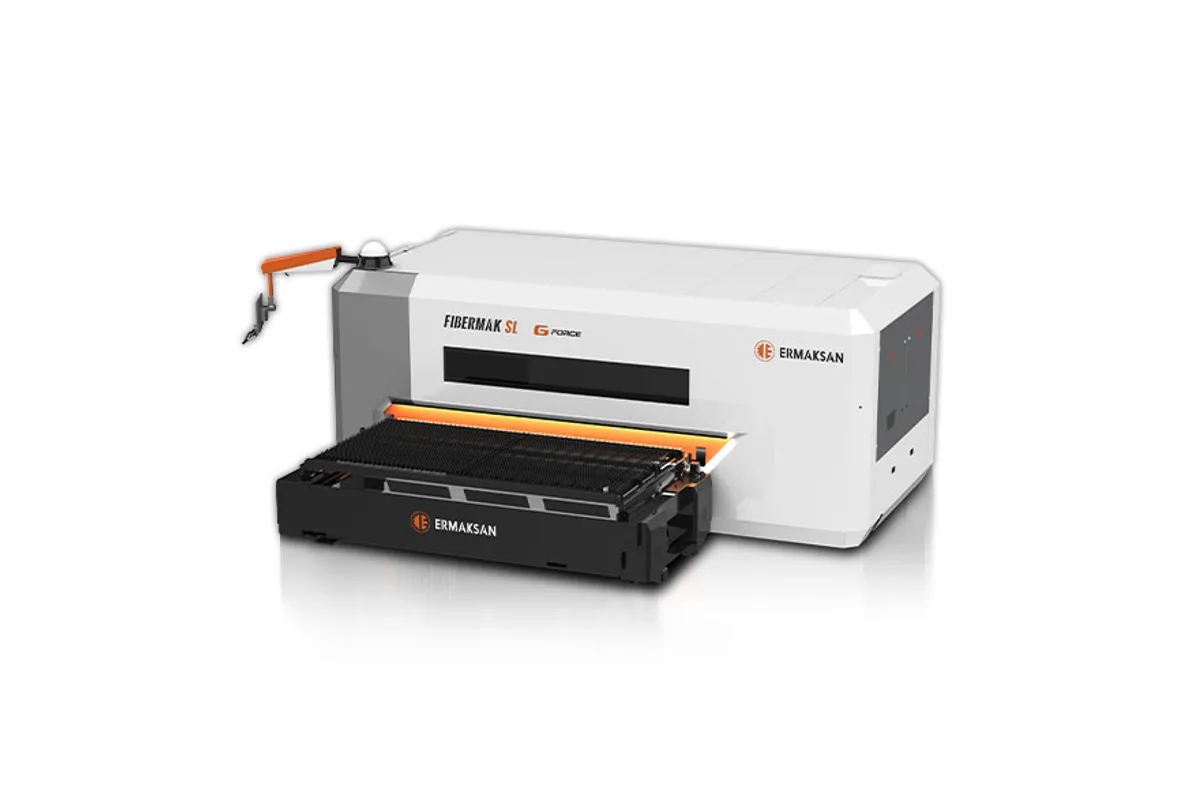

Ermak Fibermak SL 8x2
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak SL 8x2 cost?
Price estimate
We do not have a price for the Ermak Fibermak SL 8x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Eight metres of cutting length puts the Ermak Fibermak SL 8x2 among the large-format machines of Ermak's laser range. The cutting area is 8,100 x 2,000 mm (318.9 x 78.7 in), served by an automatic single pallet that loads from the side.
Mass shows up in the dynamics here. Acceleration is 1.5 G. The axis speeds are unchanged, at 100 m/min on one axis and 141 m/min combined, so long straight cuts and traverses lose nothing; it is the short, direction-changing moves of small-part nests that take longer than on the 2.5 G machines.
That suits the work an eight-metre table usually gets. Long structural parts, trailer and crane components, and big plates cut in one piece all have long contours and few reversals. The pallet takes 3,000 kg (6,614 lb). X travel is 8,200 mm, Y travel 2,050 mm.
Plan the building around it: 11,500 x 5,760 x 2,610 mm and 42,200 kg (93,034 lb). Side loading keeps the length of the cell near the length of the machine, which on an eight-metre laser saves a large area compared with pallets that exit from the end.
Resonators are listed up to 30,000 W, and high power is the usual choice at this size.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 8,100 x 2,000 mm (318.9 x 78.7 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| X Axis Travel | 8,200 mm (322.8 in) |
| Y Axis Travel | 2,050 mm (80.7 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1.5 G |
| Max Axis Speed | 141 m/min combined; 100 m/min single axis (X, Y) |
| Pallet Changer | Automatic (single pallet) |
| Machine Dimensions | 11,500 x 5,760 x 2,610 mm |
| Machine Weight | 42,200 kg (93,034 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm/m |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5 in 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 10, 12, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz |
| Power Range | 10-105% |
| Laser Wavelength | 1070 ± 5 nm |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 8,100 x 2,000 mm cutting area
- 100 m/min single-axis and 141 m/min combined speed
- 3,000 kg (6,614 lb) load capacity
- Side loading keeps the cell close to machine length
Limitations
- Acceleration of 1.5 G, down from 2.5 G on the Fibermak SL 6x2
- Single pallet only, no exchange table
- 42,200 kg (93,034 lb) and 11,500 mm long
- Y travel is limited to 2,050 mm
Best For
Frequently Asked Questions
01
8,100 x 2,000 mm (318.9 x 78.7 in), with an X travel of 8,200 mm and a Y travel of 2,050 mm. The pallet carries up to 3,000 kg (6,614 lb).
02
In axis speed, yes: 100 m/min per axis and 141 m/min combined. Acceleration is 1.5 G, where the Fibermak SL 6x2 has 2.5 G.
03
Machine dimensions are 11,500 x 5,760 x 2,610 mm and the weight is 42,200 kg (93,034 lb). The network connection is Ethernet.
04
Yes. The Fibermak SL 8x2.6 has a cutting area of 8,100 x 2,700 mm and a 4,000 kg load capacity, with 1 G of acceleration.
