Ermak Fibermak Momentum Gen-5 SM 10x2.6

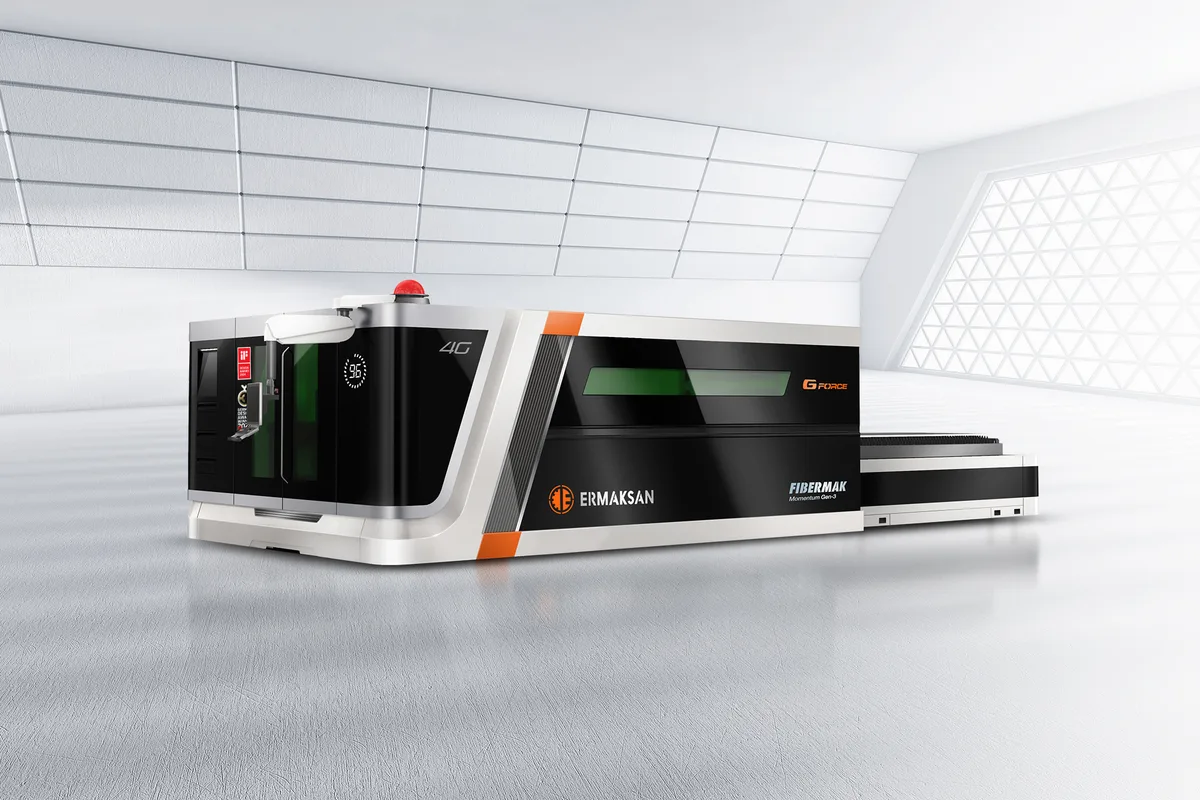

Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 10x2.6 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 10x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
From ten metres up, Ermak's large-format lasers form a separate group, and the Ermak Fibermak Momentum Gen-5 SM 10x2.6 is its first member. The working area is 10,000 x 2,600 mm (393.7 x 102.4 in).
Three things set the group apart in the table. Y travel grows to 2,800 mm. Acceleration is 1 G. And the servo axes are listed at 60 m/min each, 85 m/min as a resultant, with no linear motor figure given.
None of that hurts the work these machines are bought for. A ten-metre plate is cut in long contours and heavy sections, where piercing and the cut itself take the time.
Each pallet is rated for 8,500 kg (18,739 lb). Changing pallets takes 130 s, so the shuttle is best thought of as a way to load and unload safely away from the beam, not as a cycle-time feature.
The machine weighs 55,000 kg (121,252 lb), and its listed dimensions are 25,000 x 5,100 x 2,200 mm. Transport, crane capacity and the foundation all need planning around those numbers, and the Beckhoff control with its 21.5-inch screen stands at the operator's end.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 10,000 x 2,600 mm (393.7 x 102.4 in) |
| Max Table Load | 8,500 kg (18,739 lb) |
| X Axis Travel | 10,200 mm (401.6 in) |
| Y Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1 G |
| Max Axis Speed | 85 m/min resultant; 60 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (130 s) |
| Machine Dimensions | 25,000 x 5,100 x 2,200 mm |
| Machine Weight | 55,000 kg (121,252 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 10,000 x 2,600 mm working area with 2,800 mm of Y travel
- 8,500 kg (18,739 lb) per pallet
- Two pallets as standard even at this length
- ±0.03 mm positioning accuracy stated for the whole range
- Optional 3D bevel head with 360° rotation
Limitations
- 85 m/min resultant and 1 G, the lowest dynamics class of the range
- No linear motor figure is listed from this size up
- 130 s for a pallet change
- 55,000 kg (121,252 lb) to move and found
Best For
Frequently Asked Questions
01
The table lists 60 m/min for a single axis and 85 m/min resultant on servo motors, with 1 G acceleration. No linear motor speed is given for this size.
02
The working area is 10,000 x 2,600 mm (393.7 x 102.4 in). X travel is 10,200 mm, Y travel 2,800 mm and Z travel 150 mm.
03
130 s. Both pallets are rated for 8,500 kg (18,739 lb), which lets a full plate be staged outside the cutting zone while another is processed.
04
55,000 kg (121,252 lb), with machine dimensions of 25,000 x 5,100 x 2,200 mm according to Ermak's table. X travel inside that envelope is 10,200 mm.
