Ermak Fibermak SL 4x2

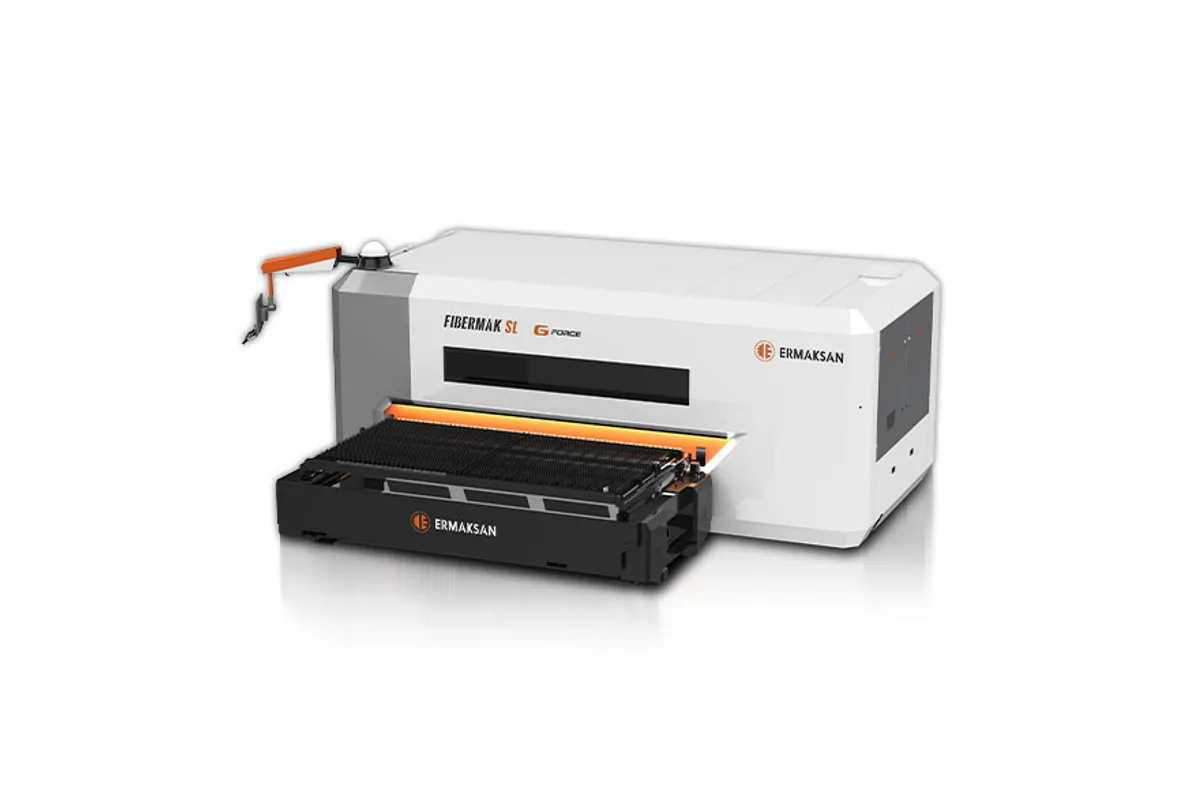

Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak SL 4x2 cost?
Price estimate
We do not have a price for the Ermak Fibermak SL 4x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Fibermak SL 4x2 is the largest side loading fiber laser that Ermak builds with two exchange pallets. It cuts sheets of 4,000 x 2,000 mm (157.5 x 78.7 in), and each pallet carries 2,500 kg (5,511 lb), the highest two-pallet load in the SL table.
Big sheets pay off in nesting. Large parts fit whole, and small parts leave less skeleton per kilogram cut. The gantry that spans the 2,050 mm Y travel still accelerates at 2.5 G, and the combined axis speed is 141 m/min.
On the floor the machine is 6,900 mm long, the same length as the Fibermak SL 3x1.5, and 5,322 mm wide. In other words the extra sheet size is taken up mostly in width. Weight is 21,000 kg (46,296 lb).
A pallet change takes 30 s. Beyond this size Ermak switches the SL to an automatic single-pallet arrangement, so buyers who want to load one pallet while the other is being cut should note that this is the last model that allows it.
Resonators run from 2,000 W to 30,000 W. At 6,000 W the table gives 25 mm in mild steel, 15 mm in stainless steel and 12 mm in aluminum. Assist gases are oxygen for steel and nitrogen or dry air for stainless steel and aluminum.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 4,000 x 2,000 mm (157.5 x 78.7 in) |
| Max Table Load | 2,500 kg (5,511 lb) |
| X Axis Travel | 4,050 mm (159.4 in) |
| Y Axis Travel | 2,050 mm (80.7 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 2.5 G |
| Max Axis Speed | 141 m/min combined; 100 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (30 s) |
| Machine Dimensions | 6,900 x 5,322 x 2,610 mm |
| Machine Weight | 21,000 kg (46,296 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm/m |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5 in 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 10, 12, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz |
| Power Range | 10-105% |
| Laser Wavelength | 1070 ± 5 nm |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 x 2,000 mm cutting area with two exchange pallets
- 2,500 kg (5,511 lb) per pallet
- 2.5 G acceleration maintained on the wider gantry
- Same 6,900 mm machine length as the Fibermak SL 3x1.5
Limitations
- 30 s pallet change, the slowest of the two-pallet models
- 5,322 mm wide and 21,000 kg (46,296 lb)
- Z travel is limited to 150 mm
- Lantek software and the Procutter Zoom 2.0 head are options
Best For
Frequently Asked Questions
01
A cutting area of 4,000 x 2,000 mm (157.5 x 78.7 in), with 4,050 mm of X travel and 2,050 mm of Y travel. Each pallet is rated for 2,500 kg (5,511 lb).
02
Yes, with a 30 s change. The larger Fibermak SL 6x2 and the two eight-metre models are listed with an automatic single pallet instead.
03
Single-axis speed in X and Y is 100 m/min and the combined speed is 141 m/min, with 2.5 G of acceleration. Repeatability is ±0.015 mm.
04
21,000 kg (46,296 lb), with machine dimensions of 6,900 x 5,322 x 2,610 mm. The control panel has a 21.5 in display and two touchscreens.
