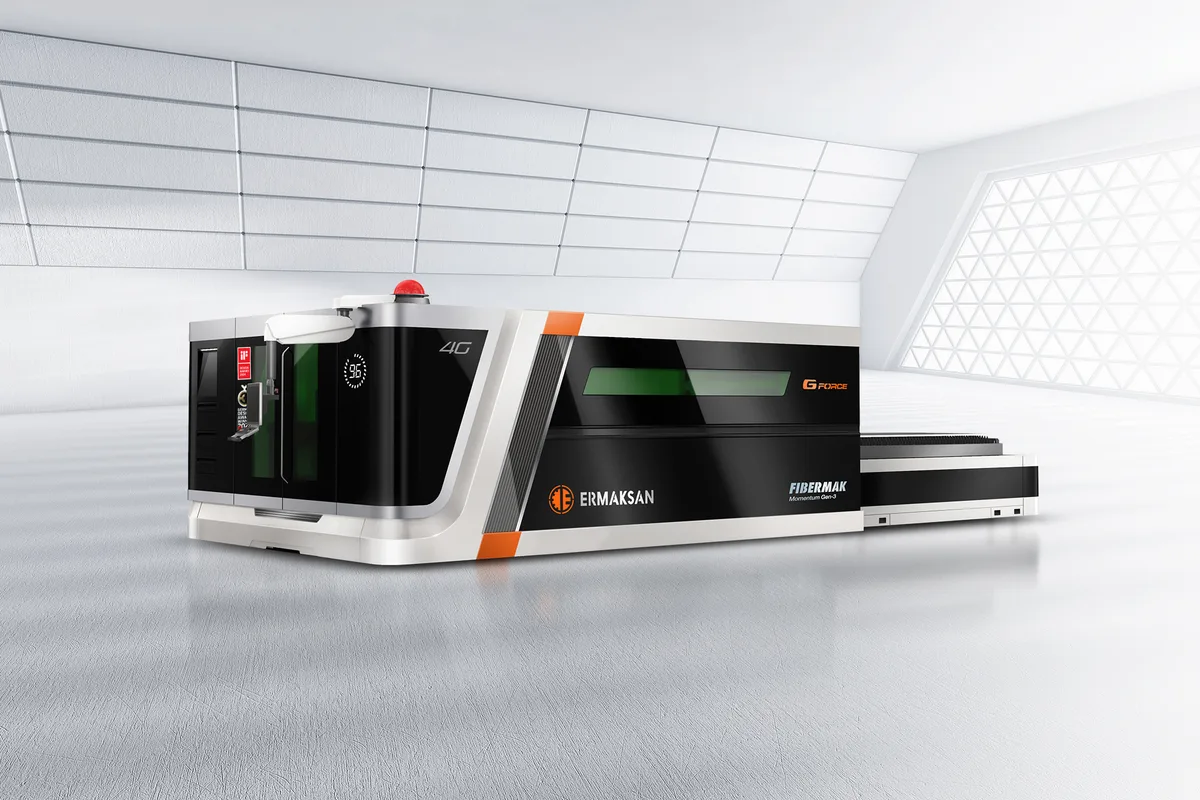

Ermak Fibermak Momentum Gen-5 SM 6x2.6
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 6x2.6 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 6x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Fibermak Momentum Gen-5 SM 6x2.6 opens the wide-format half of the range. Its working area is 6,150 x 2,600 mm (242.1 x 102.4 in), and the bridge travels 2,700 mm in Y.
Width costs speed. Against the two-metre machine of equal length, the servo figures fall to 80 m/min per axis and 113 m/min resultant, and acceleration is 1.5 G. The table's linear motor line reads 100 m/min per axis and 141 m/min resultant for this size.
What the buyer gets in return is plate capacity. Each pallet holds 5,000 kg (11,023 lb), and a 2,600 mm table takes wide mill plate without trimming it first. For a fabricator that removes a shearing or flame-cutting step ahead of the laser.
Length is 16,794 mm, exactly that of the Fibermak Momentum Gen-5 SM 6x2, while width grows to 6,700 mm and weight to 30,500 kg (67,240 lb). The pallet change stays at 65 s.
For weld preparation on plate, which is common work at this width, Ermak offers a ±45° bevel cutting head and a 3D bevel head with full 360° rotation, both optional.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 6,150 x 2,600 mm (242.1 x 102.4 in) |
| Max Table Load | 5,000 kg (11,023 lb) |
| X Axis Travel | 6,200 mm (244.1 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1.5 G |
| Max Axis Speed | 113 m/min resultant; 80 m/min single axis (X, Y) |
| Max Axis Speed Linear Motor | 141 m/min resultant; 100 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (65 s) |
| Machine Dimensions | 16,794 x 6,700 x 2,310 mm |
| Machine Weight | 30,500 kg (67,240 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,150 x 2,600 mm working area for wide mill plate
- 5,000 kg (11,023 lb) per pallet
- 65 s pallet change, the quickest of the wide-format models
- Optional ±45° bevel head for weld preparation
- Countersink by laser is listed as a standard feature
Limitations
- Servo speed drops to 113 m/min resultant
- 1.5 G acceleration, against 2.5 G on the two-metre model of equal length
- 6,700 mm wide and 30,500 kg (67,240 lb)
- Bevel heads are optional equipment
Best For
Frequently Asked Questions
01
The Fibermak Momentum Gen-5 SM 6x2 has a 6,150 x 2,000 mm area, 2.5 G and 141 m/min combined. This model is 2,600 mm wide with 2,700 mm of Y travel, runs at 1.5 G and 113 m/min resultant, and carries 5,000 kg per pallet.
02
On servo motors the table lists 80 m/min for a single axis and 113 m/min resultant. The linear motor line gives 100 m/min and 141 m/min. Acceleration is 1.5 G.
03
Machine dimensions are 16,794 x 6,700 x 2,310 mm, and the machine weighs 30,500 kg (67,240 lb). The two pallets change in 65 s.
04
With an optional head. Ermak lists a bevel cutting head for ±45° cuts and a 3D bevel head with full 360° rotation. The standard head is the Precitec Procutter 2.0.
