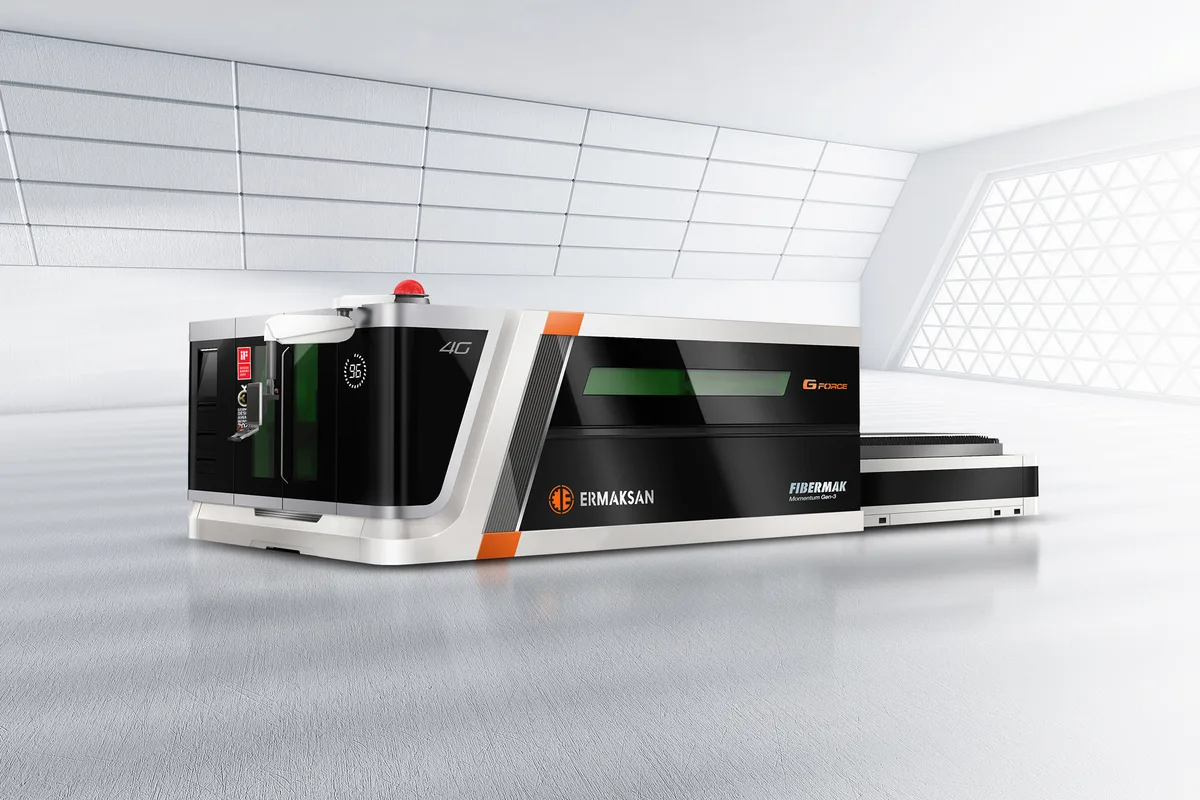

Ermak Fibermak Momentum Gen-5 SM 9x2
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 9x2 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 9x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Fibermak Momentum Gen-5 SM 9x2 is the longest of the two-metre-wide models, with a working area of 9,000 x 2,000 mm (354.3 x 78.7 in) and 9,200 mm of X travel.
Nine metres on a 2,050 mm bridge is an unusual shape. It fits long, narrow work: lighting columns opened flat, vehicle side members, facade strips. Where the parts are long but the sheet is not wide, this model avoids the heavier bridge of the wide-format machines and keeps the faster servo figures of 100 m/min per axis and 141 m/min combined.
Acceleration is 1.5 G. Each pallet is rated for 6,000 kg (13,228 lb), and the change takes 100 s, a wait that only makes sense when a single nest runs for a long time.
Ermak's table gives the dimensions as 22,250 x 4,300 x 2,200 mm and the weight as 37,000 kg (81,570 lb). The width figure is smaller than that of the shorter two-metre models, so check the layout drawing before planning the hall.
Resonators from 2,000 W to 30,000 W are listed, with oxygen as the assist gas for steel and nitrogen or dry air for stainless steel and aluminum.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 9,000 x 2,000 mm (354.3 x 78.7 in) |
| Max Table Load | 6,000 kg (13,228 lb) |
| X Axis Travel | 9,200 mm (362.2 in) |
| Y Axis Travel | 2,050 mm (80.7 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1.5 G |
| Max Axis Speed | 141 m/min combined; 100 m/min single axis (X, Y) |
| Max Axis Speed Linear Motor | 170 m/min combined; 120 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (100 s) |
| Machine Dimensions | 22,250 x 4,300 x 2,200 mm |
| Machine Weight | 37,000 kg (81,570 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 9,000 x 2,000 mm working area, the longest on the 2,050 mm bridge
- 6,000 kg (13,228 lb) per pallet
- 100 m/min single-axis and 141 m/min combined speed
- Fly-cut and frequency cutting mode are standard
- Beckhoff CNC with Metalix and Lantek software named in the table
Limitations
- 100 s pallet change, the slowest of the two-metre models
- Acceleration of 1.5 G limits dense nests of small parts
- 22,250 mm long and 37,000 kg (81,570 lb)
- The listed 4,300 mm width should be confirmed against a layout drawing
Best For
Frequently Asked Questions
01
The working area is 9,000 x 2,000 mm (354.3 x 78.7 in), and the X axis travels 9,200 mm (362.2 in). Y travel is 2,050 mm and Z travel 150 mm.
02
100 s for the two-pallet shuttle table. Each pallet is rated for 6,000 kg (13,228 lb), so a full plate nest can be prepared while the other pallet is cut.
03
Yes. The Fibermak Momentum Gen-5 SM 9x2.6 has a 9,000 x 2,600 mm working area and 7,500 kg pallets, but its servo speed is 113 m/min resultant and its acceleration 1.2 G.
04
Oxygen at 0.5-6 bar for steel, nitrogen at 0.5-25 bar for stainless steel, and dry air or nitrogen at 0.5-25 bar for aluminum. A mixed gas function is listed as an option.
