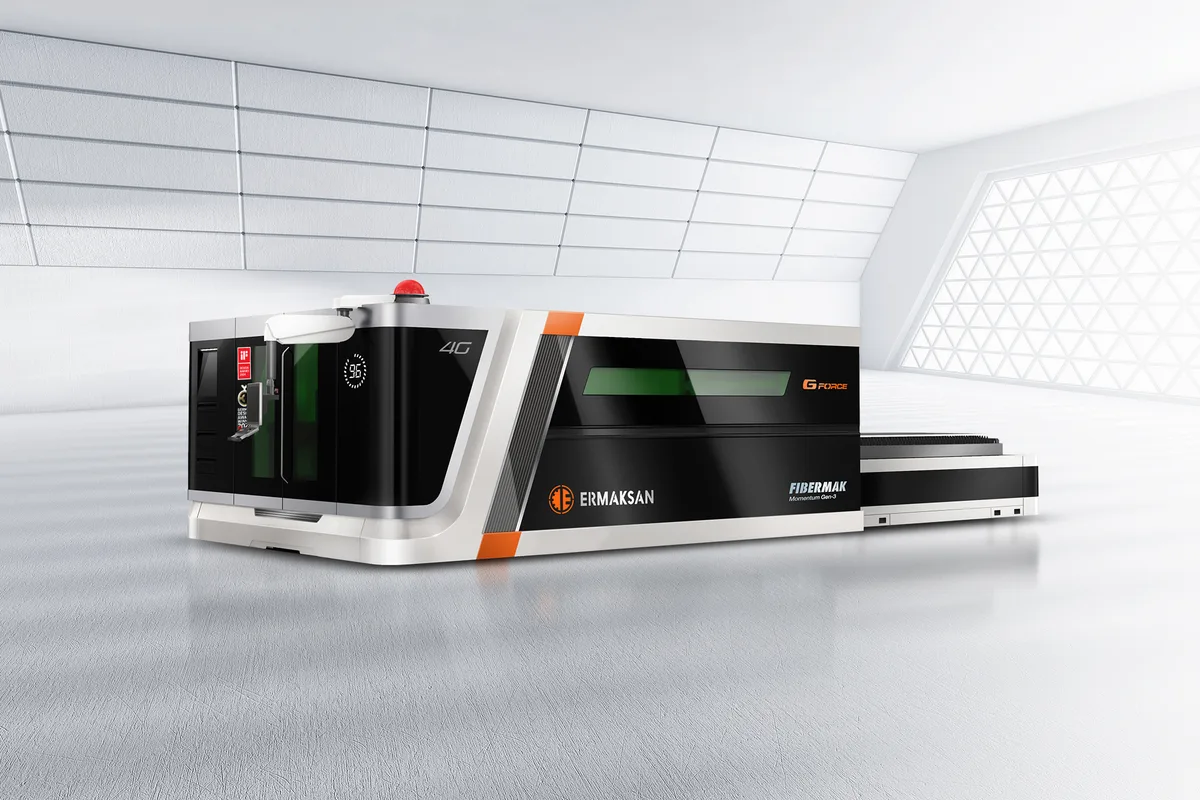

Ermak Fibermak Momentum Gen-5 SM 16x2.6
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 16x2.6 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 16x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sixteen metres of table make the Ermak Fibermak Momentum Gen-5 SM 16x2.6 the longest 2,600 mm wide model Ermak lists. Its working area is 16,000 x 2,600 mm (629.9 x 102.4 in).
Machines of this length are usually specified around one product: wind tower sections, rail vehicle sides, long girders. For such work the figures that count are the 16,200 mm X travel and the 13,000 kg (28,660 lb) each pallet may carry.
The gantry works at 1 G with 60 m/min per axis, 85 m/min resultant. Y travel is 2,800 mm and Z travel 150 mm, so the machine is a flat-plate cutter; formed parts have little clearance. Repetition accuracy is stated as ±0.015 mm, the value given for every size.
It takes 200 s to exchange the pallets. The installation is 35,000 x 5,100 x 2,200 mm and weighs 75,000 kg (165,344 lb), which normally means delivery in sections and assembly on site.
If the plate is also wider than 2,600 mm, the only larger model is the Fibermak Momentum Gen-5 SM 18x3, with a 3,000 mm wide table and 17,000 kg pallets.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 16,000 x 2,600 mm (629.9 x 102.4 in) |
| Max Table Load | 13,000 kg (28,660 lb) |
| X Axis Travel | 16,200 mm (637.8 in) |
| Y Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1 G |
| Max Axis Speed | 85 m/min resultant; 60 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (200 s) |
| Machine Dimensions | 35,000 x 5,100 x 2,200 mm |
| Machine Weight | 75,000 kg (165,344 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 16,000 x 2,600 mm working area
- 13,000 kg (28,660 lb) per pallet
- 16,200 mm of X travel in one setup
- Beckhoff CNC with a 21.5-inch control panel
- Frequency cutting mode for piercing thick material is standard
Limitations
- 200 s to exchange pallets
- 75,000 kg (165,344 lb) machine weight
- 35,000 mm of hall length required
- Z travel of only 150 mm leaves no room for formed parts
Best For
Frequently Asked Questions
01
Up to the 16,000 mm length of the working area, which is 2,600 mm wide (629.9 x 102.4 in). X travel is 16,200 mm and Y travel 2,800 mm.
02
13,000 kg (28,660 lb) each. Two pallets are listed, and exchanging them takes 200 s, so loading and unloading can be done outside the cutting zone.
03
75,000 kg (165,344 lb) and 35,000 x 5,100 x 2,200 mm. Positioning accuracy is listed at ±0.03 mm and repetition accuracy at ±0.015 mm.
04
One. The Fibermak Momentum Gen-5 SM 18x3 has an 18,000 x 3,000 mm working area, 3,200 mm of Y travel and pallets rated for 17,000 kg, and weighs 93,000 kg.
