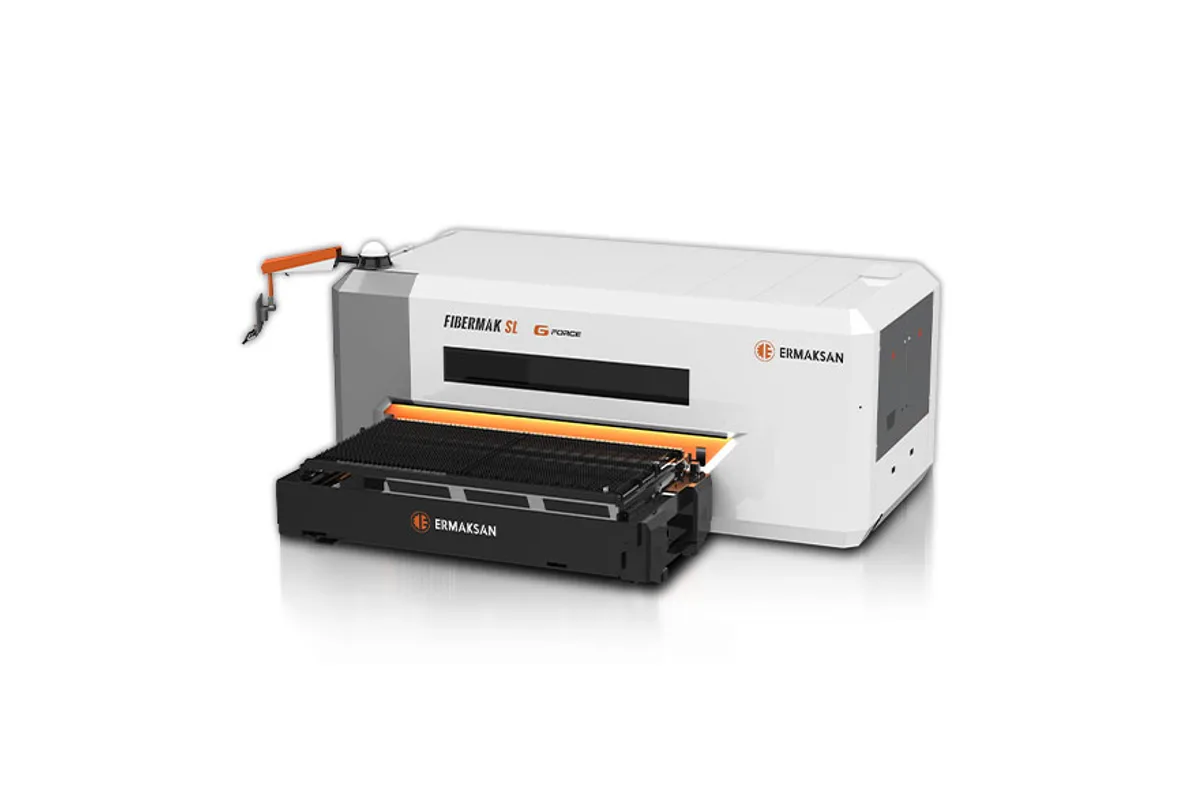

Ermak Fibermak SL 8x2.6
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak SL 8x2.6 cost?
Price estimate
We do not have a price for the Ermak Fibermak SL 8x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Fibermak SL 8x2.6 is the widest machine in Ermak's side loading laser table, with a cutting area of 8,100 x 2,700 mm (318.9 x 106.3 in). It exists for plate that is wider than the usual two metres.
To span 2,700 mm of Y travel the bridge is longer and heavier, and Ermak rates the machine accordingly. Acceleration is 1 G. Axis speed is 80 m/min on a single axis and 113 m/min resultant. These are the lowest figures in the SL series, and they are the price of the width.
Load capacity is the highest in the series at 4,000 kg (8,818 lb), on an automatic single pallet. A plate of that weight is handled by crane or vacuum lifter, so the loading side of the cell needs lifting gear with matching capacity.
The accuracy rows are the same as for the small machines, ±0.03 mm/m positioning and ±0.015 mm repeatability. Z travel is 150 mm.
Dimensions are 11,500 x 6,860 x 2,610 mm, and the weight is 45,100 kg (99,427 lb). The control is Beckhoff, with a panel that has a 21.5 in display and two touchscreens.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 8,100 x 2,700 mm (318.9 x 106.3 in) |
| Max Table Load | 4,000 kg (8,818 lb) |
| X Axis Travel | 8,200 mm (322.8 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1 G |
| Max Axis Speed | 113 m/min resultant; 80 m/min single axis (X, Y) |
| Pallet Changer | Automatic (single pallet) |
| Machine Dimensions | 11,500 x 6,860 x 2,610 mm |
| Machine Weight | 45,100 kg (99,427 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm/m |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5 in 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 10, 12, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz |
| Power Range | 10-105% |
| Laser Wavelength | 1070 ± 5 nm |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,700 mm of cutting width over 8,100 mm of length
- 4,000 kg (8,818 lb) load capacity, the highest SL figure
- Same ±0.015 mm repeatability as the small SL models
- Beckhoff control with Metalix or Lantek software
Limitations
- Acceleration is limited to 1 G
- 80 m/min single-axis and 113 m/min resultant speed, the lowest in the series
- 6,860 mm wide and 45,100 kg (99,427 lb)
- Single pallet, with no exchange table
Best For
Frequently Asked Questions
01
Width and load. The Fibermak SL 8x2 cuts 8,100 x 2,000 mm with a 3,000 kg capacity and 1.5 G. The Fibermak SL 8x2.6 cuts 8,100 x 2,700 mm with 4,000 kg, at 1 G and lower axis speeds.
02
80 m/min on a single axis in X and Y, and 113 m/min resultant. Acceleration is 1 G. The narrower Fibermak SL 8x2 is listed at 100 m/min and 141 m/min.
03
45,100 kg (99,427 lb). Machine dimensions are 11,500 x 6,860 x 2,610 mm, so both the foundation and the access route need planning.
04
A Precitec Procutter 2.0, according to Ermak. The Procutter Zoom 2.0, with a higher focal length and replaceable spot size, is optional.
