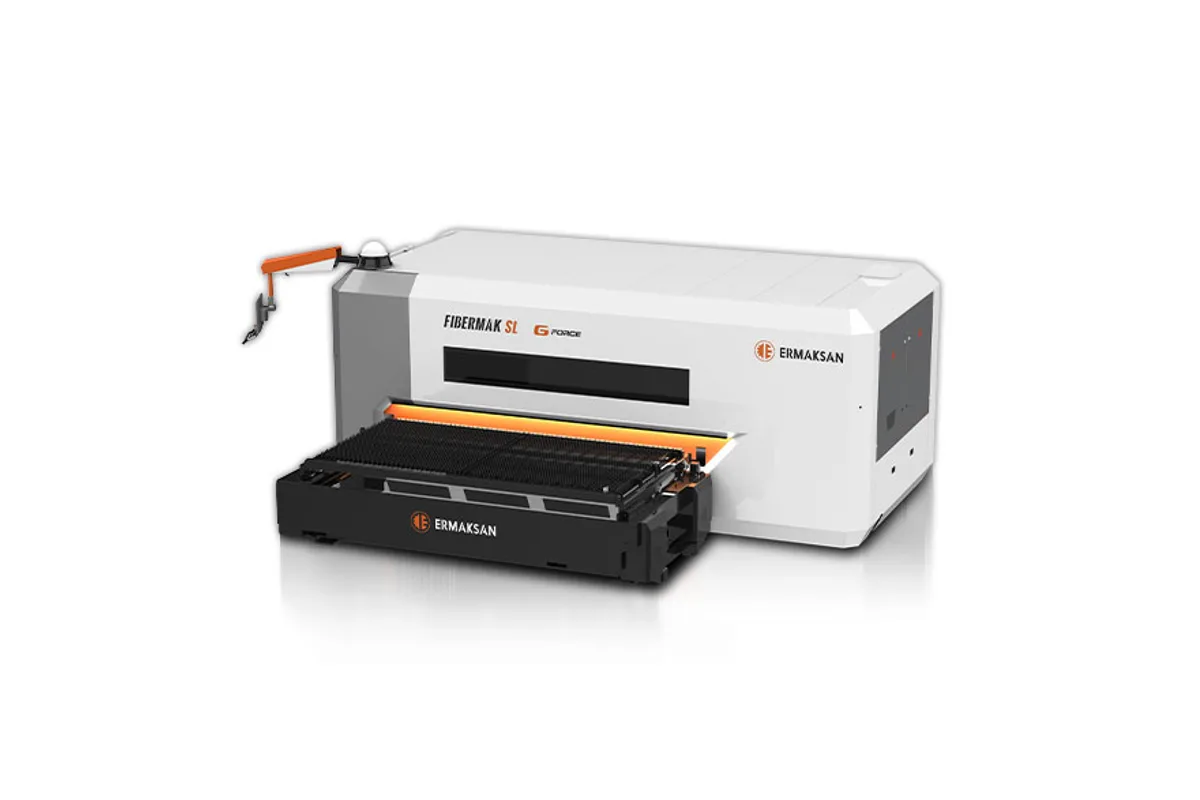

Ermak Fibermak SL 6x2
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak SL 6x2 cost?
Price estimate
We do not have a price for the Ermak Fibermak SL 6x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the Ermak Fibermak SL 6x2 the side loading laser moves to long sheet. The cutting area is 6,150 x 2,000 mm (242.1 x 78.7 in), and the loading arrangement changes with it: the table lists an automatic single pallet, not the two exchange pallets of the shorter models.
A single pallet changes the rhythm of the work. The machine cuts, the pallet comes out, parts are removed and a new sheet goes on. There is no second pallet being prepared in the meantime. For long plate parts with long cutting times that is rarely a loss, but for thin sheet it reduces beam-on time.
Surprisingly for its length, the machine keeps 2.5 G of acceleration and the 141 m/min combined speed of the small SL sizes. X travel is 6,200 mm and Y travel 2,050 mm.
Maximum load capacity is 2,000 kg (4,409 lb). Divide that over the pallet area before planning thick plate, because a full-size sheet reaches the limit sooner than on the Fibermak SL 4x2, which carries 2,500 kg on a smaller area.
The installation measures 9,000 x 5,760 x 2,610 mm and weighs 28,650 kg (63,161 lb). Control is Beckhoff with Metalix or Lantek software.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 6,150 x 2,000 mm (242.1 x 78.7 in) |
| Max Table Load | 2,000 kg (4,409 lb) |
| X Axis Travel | 6,200 mm (244.1 in) |
| Y Axis Travel | 2,050 mm (80.7 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 2.5 G |
| Max Axis Speed | 141 m/min combined; 100 m/min single axis (X, Y) |
| Pallet Changer | Automatic (single pallet) |
| Machine Dimensions | 9,000 x 5,760 x 2,610 mm |
| Machine Weight | 28,650 kg (63,161 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm/m |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5 in 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 10, 12, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz |
| Power Range | 10-105% |
| Laser Wavelength | 1070 ± 5 nm |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,150 x 2,000 mm cutting area in a side loading layout
- 2.5 G acceleration on a six-metre machine
- 141 m/min combined and 100 m/min single-axis speed
- Positioning accuracy of ±0.03 mm/m over the long axis
Limitations
- Automatic single pallet instead of two exchange pallets
- Load capacity of 2,000 kg (4,409 lb) for a large area
- 28,650 kg (63,161 lb) and a 9,000 x 5,760 mm footprint
Best For
Frequently Asked Questions
01
6,150 x 2,000 mm (242.1 x 78.7 in). Axis travels are 6,200 mm in X, 2,050 mm in Y and 150 mm in Z, and the pallet carries 2,000 kg.
02
The table lists the loading and unloading unit as automatic with a single pallet. The Fibermak SL 4x2 and the smaller sizes have 2 pallets with a timed change.
03
Maximum load capacity is 2,000 kg (4,409 lb). That is less than the 3,000 kg of the Fibermak SL 8x2, so check plate weights for this size carefully.
04
Positioning accuracy is ±0.03 mm/m and repeatability ±0.015 mm, the same as the rest of the SL table. Acceleration is 2.5 G.
