Campro CNV-550

Q: How much does the Campro CNV-550 cost?

The price estimate for the Campro CNV-550 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cnv-550#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

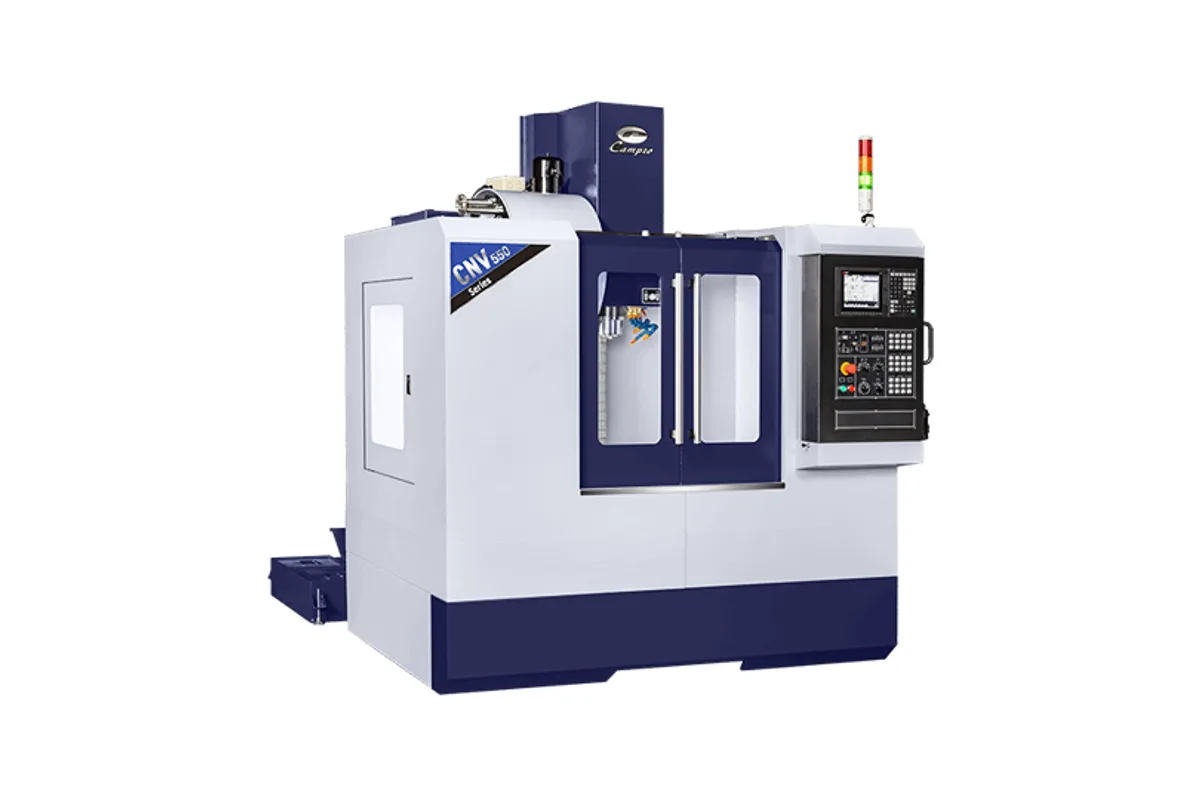

Campro CNV-550 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm)

Spindle Taper

7/24 taper No.40

Tool Capacity

20 (OPT: 16)

Table Size

650 × 430 mm (25.5 in x 16.9 in)

Spindle Power

7.5 / 11 kW (15 HP)

x axis travel

550 mm (21.6 in)

How much does the Campro CNV-550 cost?

Price estimate

Uncertain

We do not have a price for the Campro CNV-550 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CNV-550 is the entry point of the CNV series: a 3,000 kg (6,613 lb) vertical machining center with 550 mm (21.6 in) of X travel, 430 mm (16.9 in) of Y and 480 mm (18.8 in) of Z. The table is 650 × 430 mm (25.5 in x 16.9 in) and holds 300 kg (661 lb).

Small does not mean stripped down here. The spindle motor is the same 7.5 / 11 kW (15 HP) fitted across the whole CNV series, up to the CNV-1300, and the spindle options are the same too: 8,000 rpm as standard, with 10,000, 12,000 and 15,000 rpm available. Rapids are 30 m/min on all three axes. Campro states that every axis uses precision linear guide ways with a direct drive servo motor and coupling, and that the Z axis works without a counter-balance.

Where the size shows is in tooling and workholding. The magazine holds 20 tools with an arm type changer, or 16 with the optional carrousel. T-slots are 14 mm wide, four of them, where the CNV-850 uses 18 mm slots. A tool beside empty pockets can be Ø130 mm (Ø5.1 in).

The machine occupies 2,240 × 2,670 mm (88 in x 105 in), deeper than it is wide, and stands 2,520 mm (99 in) high. It needs 15 kVA. Campro adds that the control panel swivels 0~75 degrees to suit the operator. The inch figures printed for the spindle nose distance on Campro's page do not agree with the metric ones, so only the metric range is given here: 100~580 mm.

Full Specifications

Parameter	Value
X Axis Travel	550 mm (21.6 in)
Y Axis Travel	430 mm (16.9 in)
Z Axis Travel	480 mm (18.8 in)
Distance Spindle Nose to Table	100~580 mm
Distance Spindle Center to Column	485 mm (19 in)
Table Size	650 × 430 mm (25.5 in x 16.9 in)
Max Table Load	300 kg (661 lb)
T-Slots	14 mm x 4 x 100 mm (0.5 in x 4 x 3.9 in) (W x No. x P)
Max Spindle Speed	8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm)
Spindle Motor Power	7.5 / 11 kW (15 HP)
Spindle Taper	7/24 taper No.40
ATC Type	Arm type (OPT: Carrousel)
Tool Shank	BT-40
Pull Stud	P-40T (45°)
Tool Capacity	20 (OPT: 16)
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Diameter (adjacent pockets empty)	Ø130 mm (Ø5.1 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Time	2.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	30 / 30 / 30 m/min (1,181.1 / 1,181.1 / 1,181.1 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	2,240 × 2,670 mm (88 in x 105 in) (W × D)
Machine Weight	3,000 kg (6,613 lb)
Machine Height	2,520 mm (99 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	15 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

7.5 / 11 kW (15 HP) spindle motor, the same as on the largest CNV model
Spindle options of 10,000, 12,000 and 15,000 rpm above the standard 8,000 rpm
30 m/min rapids in X, Y and Z on linear guide ways
Light and compact: 3,000 kg (6,613 lb) on 2,240 × 2,670 mm (88 in x 105 in)
Runs from a 15 kVA supply

Limitations

Table load of 300 kg (661 lb) on a 650 × 430 mm (25.5 in x 16.9 in) table
20 tools as standard and 16 with the carrousel option, fewer than the 24 of the CNV-850
X travel of 550 mm (21.6 in) leaves room for one vise and little else
Chip to chip time is 7 sec

Best For

Small precision parts and electrodes within 550 × 430 × 480 mm Second-operation and cell work where floor space is tight High-speed finishing of small molds with the 15,000 rpm option Training rooms and toolrooms with a 15 kVA supply

Frequently Asked Questions

01 What are the travels of the CNV-550?

X axis travel is 550 mm (21.6 in), Y is 430 mm (16.9 in) and Z is 480 mm (18.8 in). The distance from spindle nose to table surface is 100~580 mm and from spindle center to column 485 mm (19 in). The table measures 650 × 430 mm (25.5 in x 16.9 in).

02 What tool changer does the CNV-550 have?

The standard changer is arm type with 20 tools; a carrousel with 16 tools is the listed option. Tool shank is BT-40. Tools may be Ø80 mm (Ø3.1 in), or Ø130 mm (Ø5.1 in) with adjacent pockets empty, 250 mm (9.8 in) long and 7 kg (15 lb). Tool to tool time is 2.5 sec.

03 How does the CNV-550 differ from the CNV-750?

Only in length. The CNV-750 has 750 mm (29.5 in) of X travel and an 850 × 430 mm (33.4 in x 16.9 in) table, and weighs 3,300 kg (7,245 lb). Y and Z travels, the 300 kg (661 lb) table load, the spindle, the tool changer and the floor plan are the same as on the CNV-550.

04 Is the CNV-550 a linear guide or box way machine?

Linear guide. Campro states that all axes are equipped with precision linear guide ways and a direct drive servo motor with coupling, without counter-balance on the Z axis. The casting was designed with Finite Element Analysis and 3D software, according to the maker.
