Campro CPV-2200B

Q: How much does the Campro CPV-2200B cost?

The price estimate for the Campro CPV-2200B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-2200b#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

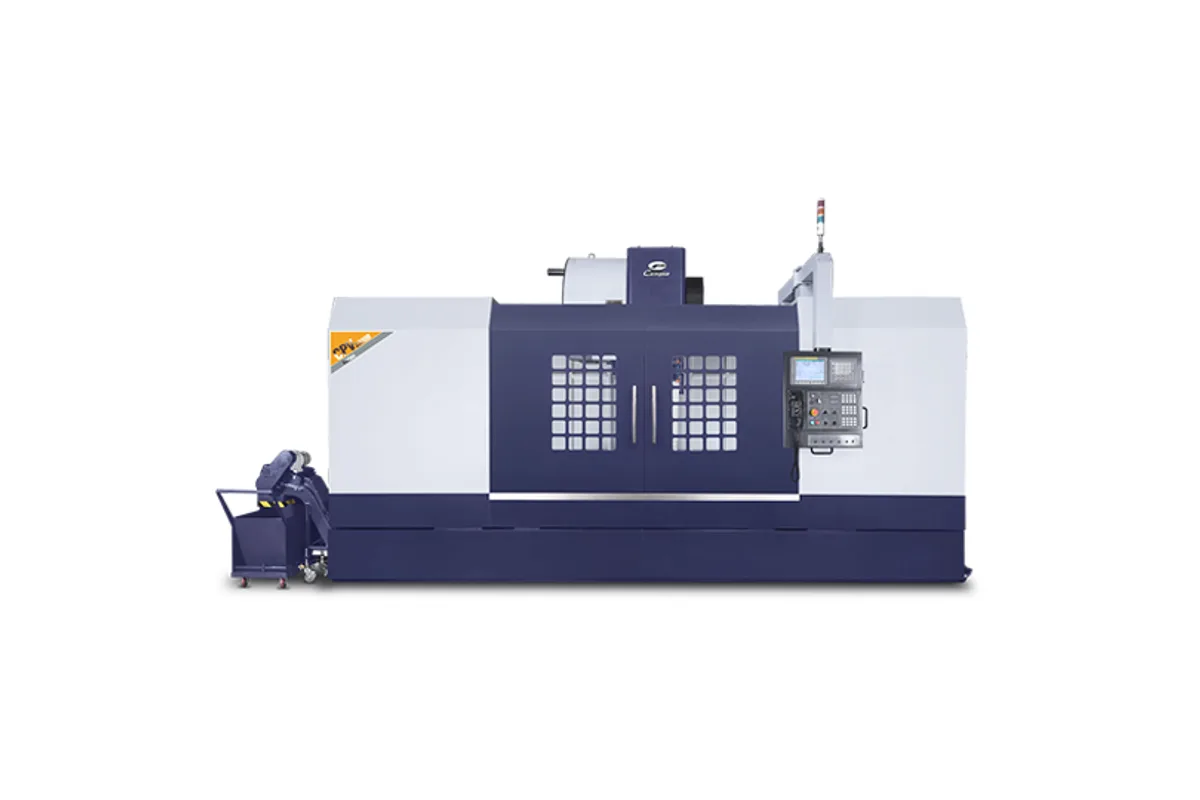

Campro CPV-2200B vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 taper No.50

Tool Capacity

Table Size

2,400 × 1,020 mm (94.4 in x 40.1 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

2,200 mm (86.6 in)

How much does the Campro CPV-2200B cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-2200B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPV-2200B is the largest C-frame vertical machining center the maker lists: 2,200 mm (86.6 in) of X travel, 1,020 mm (40.1 in) of Y and 800 mm (31.4 in) of Z, with a 50-taper spindle. Above this size Campro's range changes to double column machines.

One detail of the build is particular to this model. Campro states that the table base has 4 boxway type guideways and 2 linear guideways. A table of 2,400 × 1,020 mm (94.4 in x 40.1 in) loaded to its 3,000 kg (6,613 lb) limit needs support far outboard of the saddle, and the added linear guideways are how that is provided. The column is deep to match: the spindle center stands 1,050 mm (41.3 in) from the column surface, so the full Y stroke is usable.

It overlaps the PV-2216 double column machine in X travel, and the comparison is useful. The PV-2216 has 1,600 mm (62.9 in) of Y and carries 6,000 kg (13,227 lb); the CPV-2200B gives open access to the table from three sides and weighs 22,000 kg (48,501 lb). Parts narrower than a metre favour the C-frame.

Spindle and changer are the standard BT50 set. Top speed is 6,000 rpm with an 11 / 15 kW (20 HP) motor, and a two-speed planetary gear head is optional. The changer holds 24 tools of up to 15 kg (33 lb). Rapids are the slowest of the CPV-B line at 12 m/min in X and Y and 10 m/min in Z. Plan for a 5,860 × 4,050 mm (230 in x 159 in) floor plan, 3,460 mm (136 in) of height and 40 kVA.

Full Specifications

Parameter	Value
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	1,020 mm (40.1 in)
Z Axis Travel	800 mm (31.4 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in)
Distance Spindle Center to Column	1,050 mm (41.3 in)
Table Size	2,400 × 1,020 mm (94.4 in x 40.1 in)
Max Table Load	3,000 kg (6,613 lb)
T-Slots	22 mm x 6 x 125 mm (0.8 in x 6 x 4.9 in) (W x No. x P)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.50
ATC Type	Arm type
Tool Shank	BT-50
Pull Stud	P-50T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø110 mm (Ø4.3 in)
Max Tool Diameter (adjacent pockets empty)	Ø200 mm (Ø7.8 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Time	3.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	12 / 12 / 10 m/min (472.4 x 472.4 x 393.7 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	5,860 × 4,050 mm (230 in x 159 in) (W × D)
Machine Weight	22,000 kg (48,501 lb)
Machine Height	3,460 mm (136 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,200 mm (86.6 in) × 1,020 mm (40.1 in) × 800 mm (31.4 in) of travel in a C-frame machine
3,000 kg (6,613 lb) table load on 4 boxway type guideways and 2 linear guideways
Spindle center 1,050 mm (41.3 in) from the column surface
Optional two-speed planetary gear head spindle for heavy cutting
200~1,000 mm (7.8 in ~ 39.3 in) from spindle nose to table surface

Limitations

Rapids of 12 m/min in X and Y and 10 m/min in Z
Standard motor of 11 / 15 kW (20 HP) is the same as on the far smaller CPV-1100B-BT50
24-tool magazine with 7 sec chip to chip
Needs 40 kVA and a foundation for 22,000 kg (48,501 lb)
Table load is half the 6,000 kg (13,227 lb) of the PV-2216 double column machine

Best For

Large mold bases and die sets up to 3,000 kg (6,613 lb) Long machine frames and plates within 2,200 mm (86.6 in) of X Work that needs crane and operator access from three sides of the table Heavy 50-taper milling with the optional gear head

Frequently Asked Questions

01 How big is the table of the CPV-2200B?

The table is 2,400 × 1,020 mm (94.4 in x 40.1 in) with a maximum loading weight of 3,000 kg (6,613 lb). T-slots are 22 mm wide, six of them, at 125 mm pitch. Campro states that the CPV-2200B table base design has 4 boxway type guideways and 2 linear guideways.

02 Should I choose the CPV-2200B or the PV-2216?

Both have 2,200 mm (86.6 in) of X travel. The CPV-2200B is a C-frame machine with 1,020 mm (40.1 in) of Y and a 3,000 kg (6,613 lb) table load. The PV-2216 is a double column machine with 1,600 mm (62.9 in) of Y, a 6,000 kg (13,227 lb) load and a gear-head spindle as standard. Width and weight of the part decide it.

03 What is the spindle specification of the CPV-2200B?

6,000 rpm on a 7/24 taper No.50 with an 11 / 15 kW (20 HP) spindle motor. The standard spindle is belt type, and Campro lists an optional two-speed planetary gear head spindle. BT-50 tools may weigh 15 kg (33 lb) and be 300 mm (11.8 in) long.

04 What are the installation figures for the CPV-2200B?

Floor plan 5,860 × 4,050 mm (230 in x 159 in), maximum machine height 3,460 mm (136 in) and machine weight 22,000 kg (48,501 lb). The power supply is 40 kVA and the air source 6~8 kg/cm² (85 ~ 113 PSI).
