Campro CNV-1050

Q: How much does the Campro CNV-1050 cost?

The price estimate for the Campro CNV-1050 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cnv-1050#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

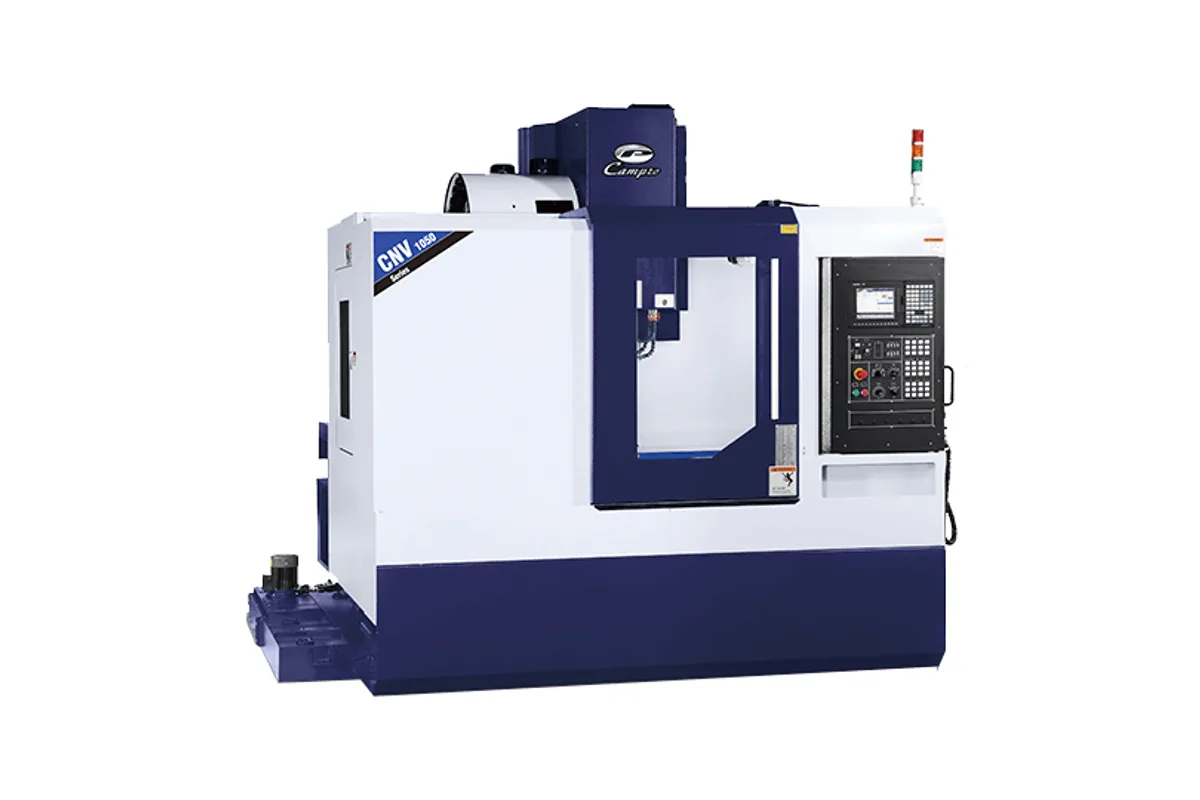

Campro CNV-1050 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm)

Spindle Taper

7/24 taper No.40

Tool Capacity

24 (OPT: 20)

Table Size

1,150 × 520 mm (45.2 in x 20.4 in)

Spindle Power

7.5 / 11 kW (15 HP)

x axis travel

1,050 mm (41.3 in)

How much does the Campro CNV-1050 cost?

Price estimate

Uncertain

We do not have a price for the Campro CNV-1050 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CNV-1050 is the longest CNV model that keeps linear guide ways on every axis. It gives 1,050 mm (41.3 in) of X travel, 540 mm (21.2 in) of Y and 520 mm (20.4 in) of Z, with a 1,150 × 520 mm (45.2 in x 20.4 in) table rated for 600 kg (1,322 lb).

That distinction matters because the next size, the CNV-1100, is built differently. Campro describes box guideways on the Z axis and a counter-balance system for the CNV-1100, and its Z rapid drops to 24 m/min. The CNV-1050 follows the smaller machines instead: precision linear guide ways on all axes, direct drive servo motors with couplings, no counter-balance on Z, and 30 m/min rapids in X, Y and Z.

In practice this is a stretched CNV-850. Column reach is the same 630 mm (24.8 in), Z travel is the same, and the height of 2,680 mm (105 in) is unchanged. It weighs 5,700 kg (12,566 lb), against 5,000 kg (11,023 lb) for the CNV-850, and its table carries 600 kg (1,322 lb) where the CNV-850 carries 500 kg (1,102 lb).

The spindle is the series standard, 8,000 rpm with 7.5 / 11 kW (15 HP) on a No.40 taper, and can be ordered at 10,000, 12,000 or 15,000 rpm. Twenty-four tools sit in the arm type changer. A long table on a 15 kVA machine with a 15 HP motor is suited to plate work, drilling patterns and aluminium, less so to heavy steel roughing. Campro prints inconsistent inch figures for the spindle nose distance; the metric range is 110~630 mm.

Full Specifications

Parameter	Value
X Axis Travel	1,050 mm (41.3 in)
Y Axis Travel	540 mm (21.2 in)
Z Axis Travel	520 mm (20.4 in)
Distance Spindle Nose to Table	110~630 mm
Distance Spindle Center to Column	630 mm (24.8 in)
Table Size	1,150 × 520 mm (45.2 in x 20.4 in)
Max Table Load	600 kg (1,322 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm)
Spindle Motor Power	7.5 / 11 kW (15 HP)
Spindle Taper	7/24 taper No.40
ATC Type	Arm type (OPT: Carrousel)
Tool Shank	BT-40
Pull Stud	P-40T (45°)
Tool Capacity	24 (OPT: 20)
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Diameter (adjacent pockets empty)	Ø150 mm (Ø5.9 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Time	2.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	30 / 30 / 30 m/min (1,181.1 / 1,181.1 / 1,181.1 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	3,330 × 2,260 mm (131 in x 88 in) (W × D)
Machine Weight	5,700 kg (12,566 lb)
Machine Height	2,680 mm (105 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	15 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,050 mm (41.3 in) of X travel with linear guide ways on all axes
30 m/min rapids in X, Y and Z, where the CNV-1100 lists 24 m/min in Z
1,150 × 520 mm (45.2 in x 20.4 in) table carrying 600 kg (1,322 lb)
Optional spindles of 10,000, 12,000 and 15,000 rpm
Power capacity of only 15 kVA for a 1,050 mm (41.3 in) machine

Limitations

Y travel of 540 mm (21.2 in) is narrow for the X stroke
7.5 / 11 kW (15 HP) motor limits heavy roughing
Table load of 600 kg (1,322 lb) is below the 700 kg (1,543 lb) of the CNV-1100
No box guideway on Z, which Campro fits to the CNV-1100 for rigidity

Best For

Long aluminium plates and extrusions up to 1,050 mm (41.3 in) Drilling and tapping patterns across a 1,150 mm (45.2 in) table Three- and four-vise production fixtures Fast light machining where Z-axis speed matters

Frequently Asked Questions

01 How does the CNV-1050 differ from the CNV-1100?

The CNV-1050 has linear guide ways on all axes, no Z counter-balance and 30 / 30 / 30 m/min rapids. For the CNV-1100 Campro describes box guideways on the Z axis and a counter-balance system, with 30 / 30 / 24 m/min rapids, a 700 kg (1,543 lb) table load and a weight of 6,700 kg (14,770 lb).

02 What is the work envelope of the CNV-1050?

X travel 1,050 mm (41.3 in), Y travel 540 mm (21.2 in), Z travel 520 mm (20.4 in). The table is 1,150 × 520 mm (45.2 in x 20.4 in), the load limit 600 kg (1,322 lb), and the spindle nose stands 110~630 mm above the table surface.

03 What spindle does the CNV-1050 use?

A 7/24 taper No.40 spindle at 8,000 rpm with a 7.5 / 11 kW (15 HP) motor. The table lists 10,000, 12,000 and 15,000 rpm as optional speeds. Tools are BT-40 with P-40T (45°) pull studs, up to 7 kg (15 lb) each.

04 How big and heavy is the CNV-1050?

The floor plan is 3,330 × 2,260 mm (131 in x 88 in), the maximum machine height 2,680 mm (105 in) and the weight 5,700 kg (12,566 lb). Power capacity is 15 kVA with an air source of 6~8 kg/cm² (85 ~ 113 PSI).
