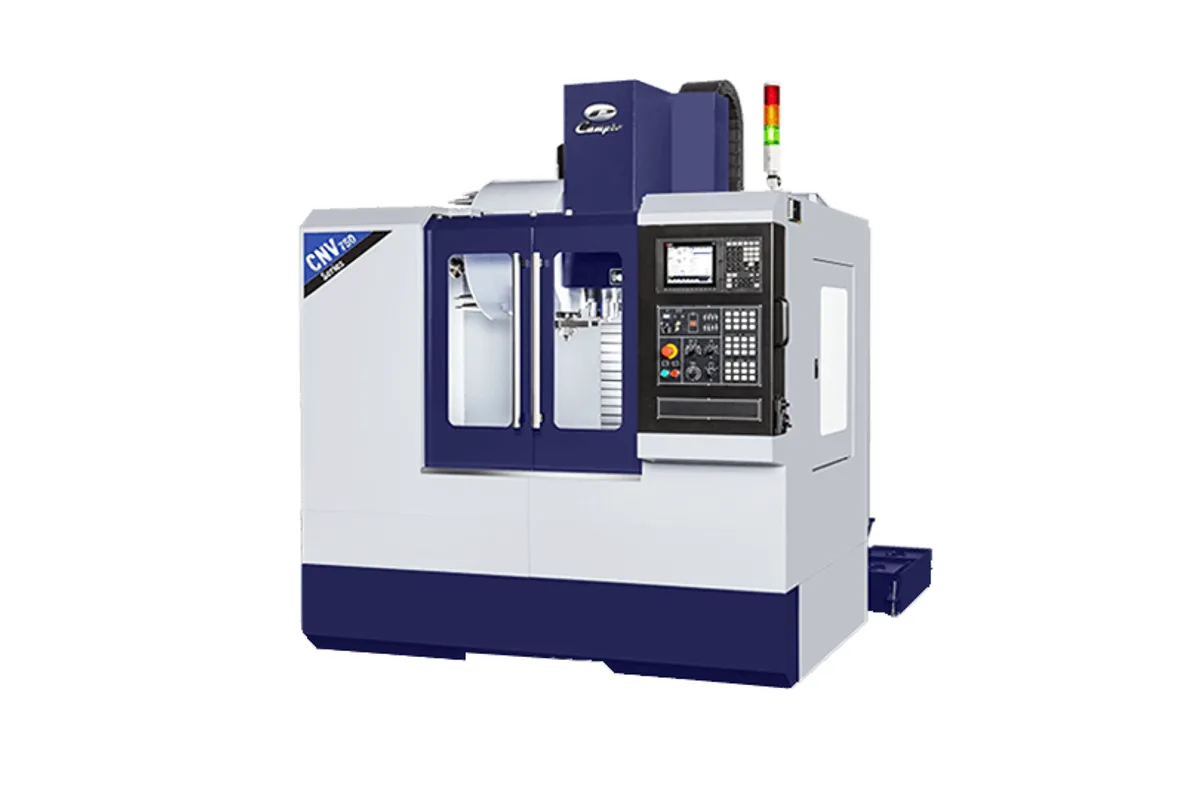

Campro CNV-750
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Campro CNV-750 cost?
Price estimate
We do not have a price for the Campro CNV-750 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Campro makes the CNV-750 by lengthening its smallest vertical machining center. X travel is 750 mm (29.5 in) on an 850 × 430 mm (33.4 in x 16.9 in) table, while Y stays at 430 mm (16.9 in) and Z at 480 mm (18.8 in).
The useful way to read this model is against the CNV-550. Both stand on the same 2,240 × 2,670 mm (88 in x 105 in) floor plan and reach the same 2,520 mm (99 in) height. The CNV-750 weighs 3,300 kg (7,245 lb), a little more than the 3,000 kg (6,613 lb) of the CNV-550. For that, a shop gets enough X stroke for two vises or one long part. It gets no more table capacity: the load limit is 300 kg (661 lb) on both, so the longer table is for longer parts, not heavier ones.
The next model up is a different casting. The CNV-850 adds Y travel and a 500 kg (1,102 lb) table load and weighs 5,000 kg (11,023 lb). If the parts are narrow, the CNV-750 covers nearly the same length in a much lighter machine.
Equipment follows the series. An 8,000 rpm BT-40 spindle with a 7.5 / 11 kW (15 HP) motor is standard, with 10,000, 12,000 and 15,000 rpm listed as options. The arm type changer holds 20 tools, or 16 in the carrousel option. All three axes rapid at 30 m/min on linear guide ways, and Campro states the Z axis runs without a counter-balance. Power capacity is 15 kVA. As on the CNV-550 page, the inch conversion printed for the spindle nose distance is wrong, so it is quoted in metric only: 100~580 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | 430 mm (16.9 in) |
| Z Axis Travel | 480 mm (18.8 in) |
| Distance Spindle Nose to Table | 100~580 mm |
| Distance Spindle Center to Column | 485 mm (19 in) |
| Table Size | 850 × 430 mm (33.4 in x 16.9 in) |
| Max Table Load | 300 kg (661 lb) |
| T-Slots | 14 mm x 4 x 100 mm (0.5 in x 4 x 3.9 in) (W x No. x P) |
| Max Spindle Speed | 8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm) |
| Spindle Motor Power | 7.5 / 11 kW (15 HP) |
| Spindle Taper | 7/24 taper No.40 |
| ATC Type | Arm type (OPT: Carrousel) |
| Tool Shank | BT-40 |
| Pull Stud | P-40T (45°) |
| Tool Capacity | 20 (OPT: 16) |
| Max Tool Diameter (full magazine) | Ø80 mm (Ø3.1 in) |
| Max Tool Diameter (adjacent pockets empty) | Ø130 mm (Ø5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.5 sec |
| Chip to Chip Time | 7 sec |
| Rapid Traverse Xyz | 30 / 30 / 30 m/min (1,181.1 / 1,181.1 / 1,181.1 in/min) |
| Cutting Feed Rate | 10,000 mm/min (393.7 in/min) |
| Floor Plan | 2,240 × 2,670 mm (88 in x 105 in) (W × D) |
| Machine Weight | 3,300 kg (7,245 lb) |
| Machine Height | 2,520 mm (99 in) |
| Air Source | 6~8 kg/cm² (85 ~ 113 PSI) |
| Power Requirement | 15 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 750 mm (29.5 in) of X travel in the footprint of the CNV-550: 2,240 × 2,670 mm (88 in x 105 in)
- 850 × 430 mm (33.4 in x 16.9 in) table takes two vises in a row
- 30 m/min rapids on X, Y and Z
- Spindle speed options up to 15,000 rpm
- At 3,300 kg (7,245 lb), far lighter than the 5,000 kg (11,023 lb) CNV-850
Limitations
- Table load stays at 300 kg (661 lb), the same as the CNV-550
- Y travel is only 430 mm (16.9 in); the CNV-850 has 520 mm (20.4 in)
- Magazine of 20 tools, or 16 with the carrousel
- T-slots are 14 mm wide, not the 18 mm of the CNV-850, so T-nuts are not interchangeable
Best For
Frequently Asked Questions
01
X travel of 750 mm (29.5 in), where the CNV-550 has 550 mm (21.6 in), and a table of 850 × 430 mm (33.4 in x 16.9 in). It weighs 3,300 kg (7,245 lb) against 3,000 kg (6,613 lb) for the CNV-550. Floor plan, height, Y and Z travels, table load and spindle are unchanged.
02
The maximum loading weight is 300 kg (661 lb). The table is 850 × 430 mm (33.4 in x 16.9 in) with four 14 mm T-slots at 100 mm pitch. Count the vises or fixture plate against that limit before loading heavy steel blanks.
03
8,000 rpm is standard. The table lists 10,000, 12,000 and 15,000 rpm as options. The spindle motor is 7.5 / 11 kW (15 HP) with a 7/24 taper No.40 and BT-40 tool shank. No torque figures are given on Campro's page.
04
Rapid feedrate is 30 / 30 / 30 m/min (1,181.1 / 1,181.1 / 1,181.1 in/min) and the cutting feedrate 10,000 mm/min (393.7 in/min). Tool change takes 2.5 sec tool to tool and 7 sec chip to chip with the arm type changer.
